Microscope Objective HI PLAN 100x/1,25 OIL

$undefined

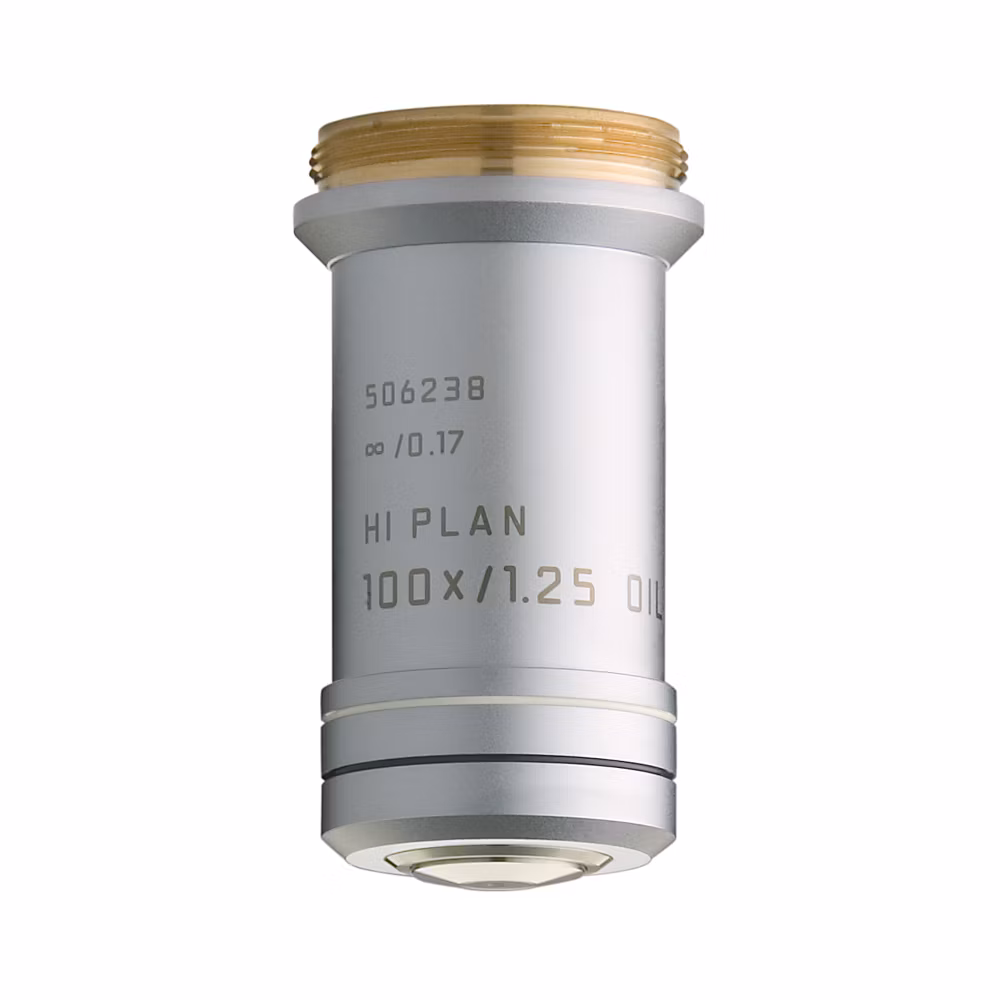

11506238 Picture Kid10480303

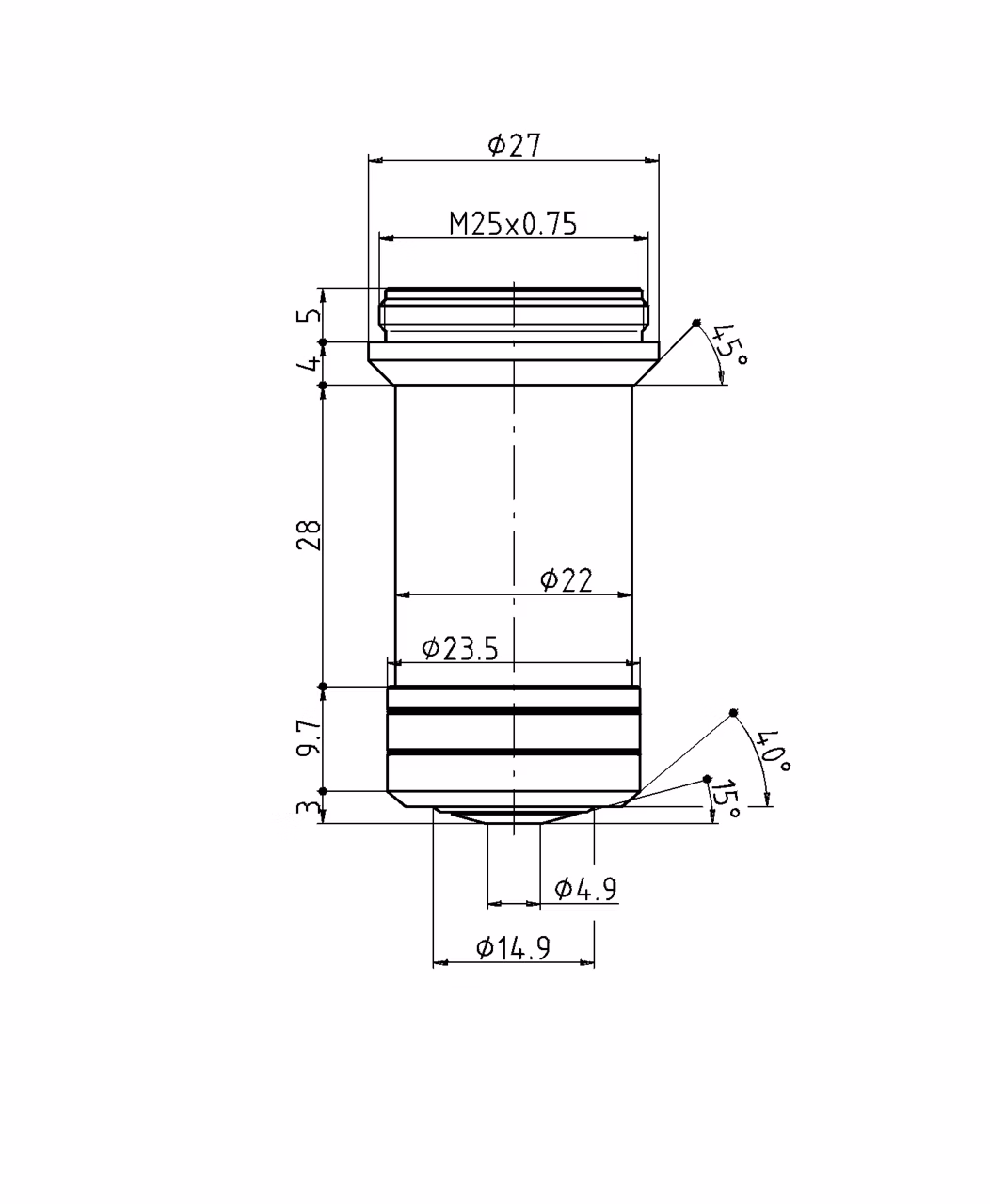

11506238 Dimension Sheet Kid10479879

Objective HI PLAN 100x/1,25 OIL has a magnification of 100X and a numerical aperture of 1.25. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.10mm and a FN of 20.

Objective HI PLAN 100x/1,25 OIL has a magnification of 100X and a numerical aperture of 1.25. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.10mm and a FN of 20.

Technical Specifications
Light Transmitted Light (TL)
Contrasting Methods Fluorescence, Brightfield, Transmitted Light Darkfield, Qualitative Polarization
Numerical Aperture 1.25
Objective Type HI PLAN
Immersion OIL
Coverglass With Coverglass
Objective Thread M25
Free Working Distance (WD in mm) 0.10
Field Number (FN) 20
Magnification 100
Iris Diaphragm NO
Spring Loaded YES
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) NO
Exit Pupil Position/DIC prism NO
