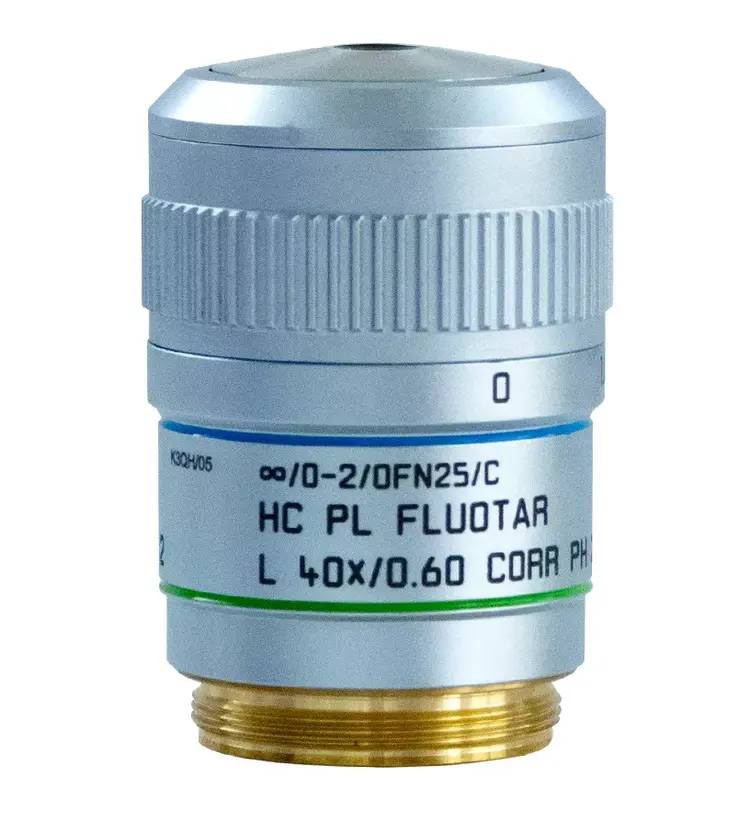

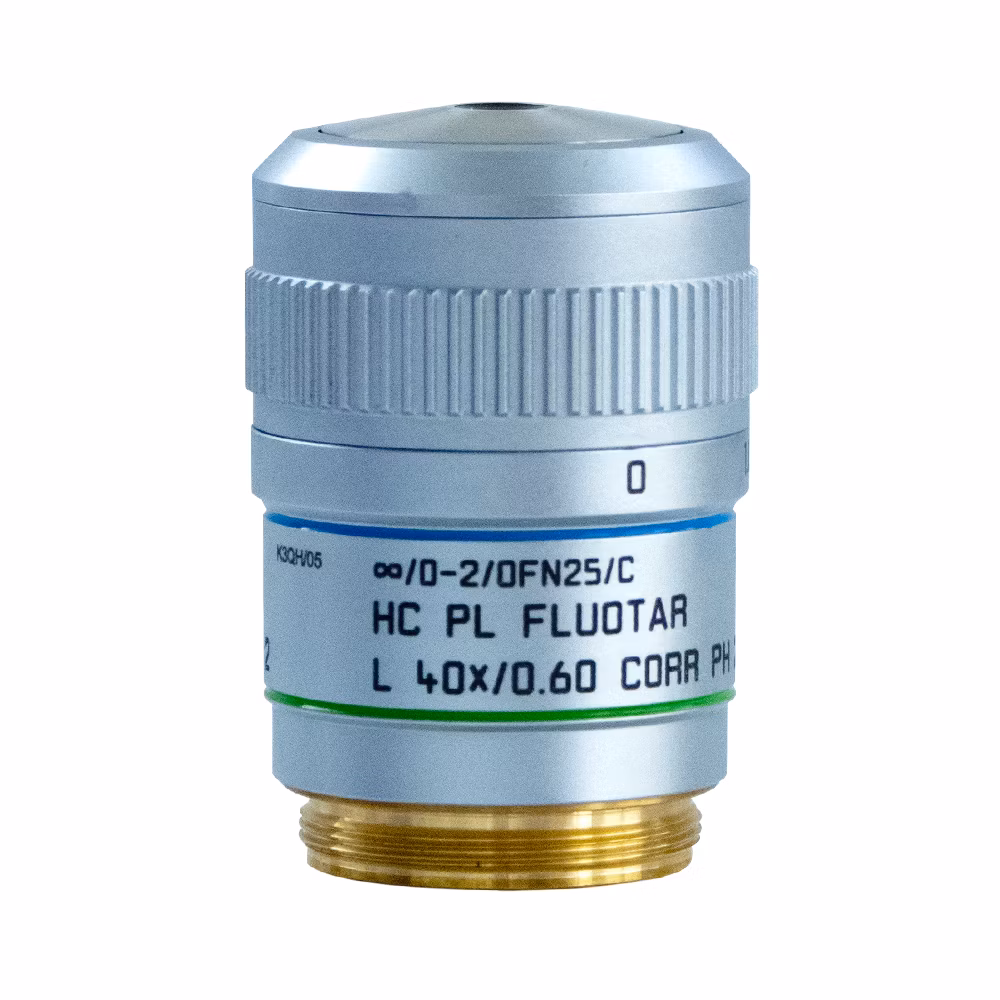

Microscope Objective HC PL FL L 40x/0.60 CORR PH2
$undefined
Leica semi-apochromats are objectives for applications in the visual spectral range with higher specifications, offering field flatness up to 25 mm. The absolute values of the focus differences for the red wavelength and the blue wavelength to green wavelength (3 colors) are ≤ 2.5x depth of field of the objective.
Product No. 11506203
Objective HC PL FL L 40x/0.60 CORR PH2 has a magnification of 40X and a numerical aperture of 0.6. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 3.3-1.9mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Integrated Modulation Contrast, Phase Contrast, Qualitative Polarization, Transmitted Light Darkfield |
| Technique/Application | Asbestos, Confocal Microscopy, Ablation, Laser Microdissection, TIRF (Total Internal Reflection Microscopy), Raman Microscopy, Coal Inspection, Forensics Makro Objectives, Electrophysiology, Light Sheet Illumination, Light Sheet Detection, FURA, STORM / GSD, MP (Multi Photon), STED (Stimulated Emission Depletion) |
| Transmission | UV (340nm), UV (365nm) |
| Numerical Aperture | 0.6 |
| Objective Type | PL FLUOTAR |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 3.3-1.9 |
| Field Number (FN) | 25 |
| Magnification | 40 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Correction Ring (CORR) | CORR |
| Exit Pupil Position/DIC prism | C |
| Numeric Aperture Filter | 0.35 - 0.6 |
| Magnification Filter | 40x |
| Field Number Filter | 25 |
| Working Distance Filter | Long WD |
