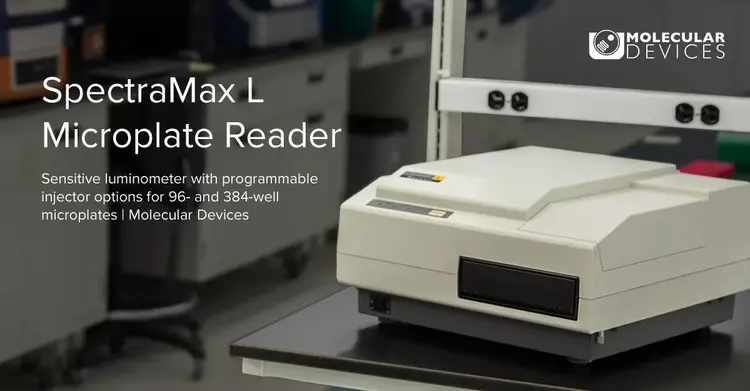

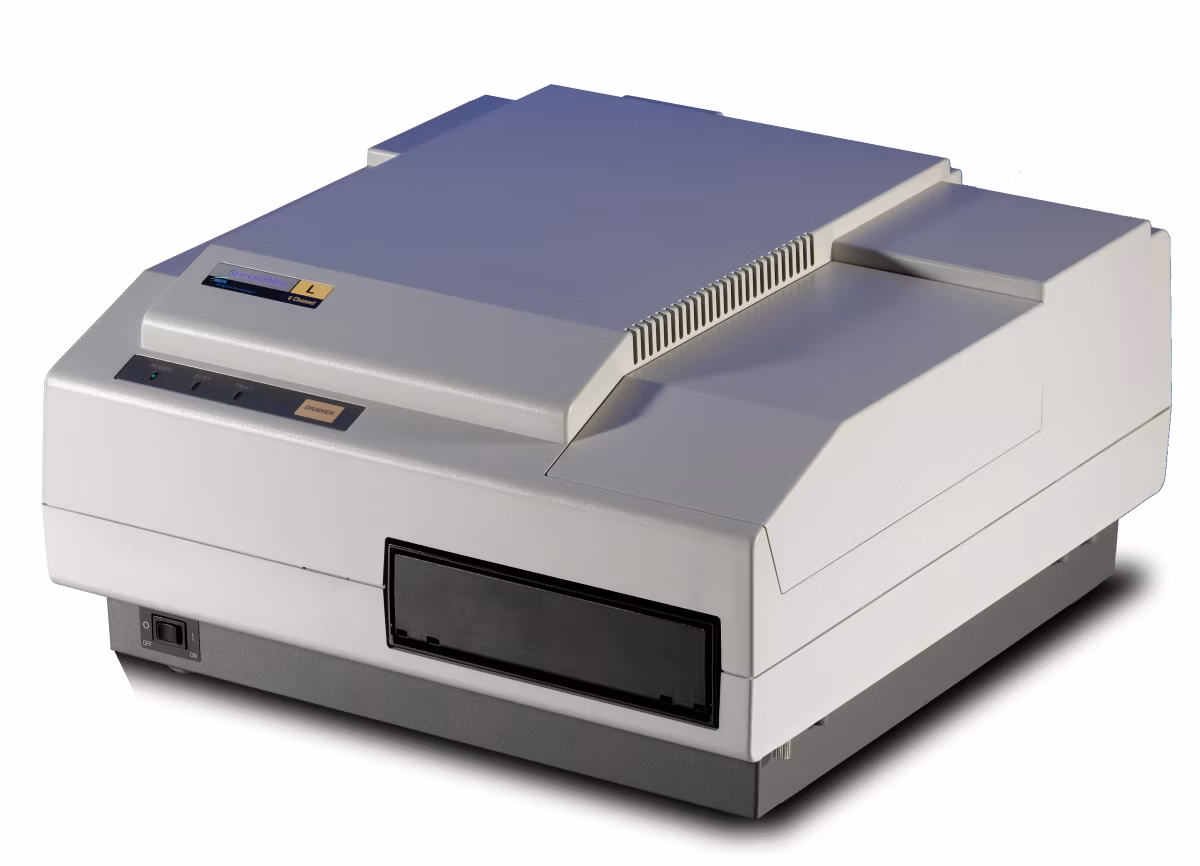

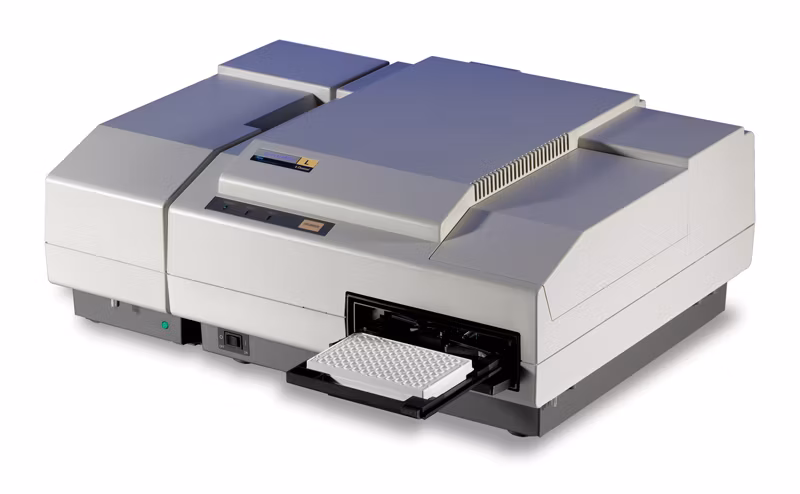

SpectraMax® L Microplate Reader
Sensitive luminometer with programmable injector options for 96- and 384-well microplates
Flash and glow luminescence detection in an upgradeable platform
The SpectraMax® L Microplate Reader measures flash and glow luminescence assays in both 96- and 384-well plates. It is upgradeable to include a barcode reader, programmable injectors, and dual-channel configurations for a 2-fold increase for medium throughput. The high sensitivity, low-noise photomultiplier tubes (PMTs), and variable-volume injector configuration make this reader ideal for fast kinetic assays requiring continuous monitoring during injection and measurement.
-
Detect all samples
The analog and photon counting capability provides a dynamic range of nine orders of magnitude, eliminating the need to dilute bright samples while maintaining high sensitivity for dim samples.
-
Get 2-fold improvement in speed
The 2-channel configuration is available with 0, 2, or 4 injectors. The 4-injector configuration enables a 2-fold improvement in speed for traditional flash and glow assays.
-
Automate injector workflows
The autowashing injectors can be programmed to rinse the injectors following each use, reversing the direction of flow so reagents can be recovered.
Key Features of SpectraMax® L Microplate Reader
-
Reduced noise
Ultra-fast photon counting technology amplifies the PMT signal with a fast pulse amplifier. This reduced noise capability enables a higher signal-to-noise ratio and low crosstalk.
-
PMT calibration
The automatic PMT calibration method is based on readings of 4 internal LEDs at 395, 470, 527, and 570 nm. The manual PMT calibration method is based on readings of 4 wells from the assay itself.
Applications of SpectraMax® L Microplate Reader
ATP-based cell viability assays
Cell Health
Cellular Signaling
Chemiluminescent ELISA
Cytotoxicity
Cytotoxicity Assays
Drug Discovery & Development
ELISA
Luminescence
Microbiology and Contaminant
Mycoplasma Monitoring
NanoBRET/BRET
Protein Detection, Quantitation and Analysis
Reactive Oxygen Species (ROS)
Reporter Gene Assay
Single/Dual -Luciferase Reporter Gene Assays
| Item Height Range (Metric cm) | 22 cm |
| Item Width Range (Metric cm) | 42 cm |
| Microplate Reader Type | Luminescence Reader |
| Detection/Read Type(s) | Endpoint, Kinetic, Spectrum Scan, Well Scan, Dual Wavelength |
| Microplate Reader Detector(s) | Photomultiplier Tube |
| Microplate Size Compatibility | 96 well plate, 384 well plate |
| Microplate Shaking Mode(s) | Linear Constant Speed, Linear Alternating Speed, Dual (X And Y), Orbital |
| Microplate Reader Validation Tool(s) | Luminescence Validation Plate, SoftMax® Pro GxP Software |
| Includes Validation Tools | Yes |
| Robotics/Automation Compatible | Yes |
| Includes Temperature Control Capability | Yes |
| Minimum Temperature Control Range Added to Ambient Temperature (Metric °C) | 4 °C |
| Maximum Temperature Control Range (Metric °C) | 45 °C |
| Item Depth Range (Metric cm) | 43 cm |
