SpectraMax® ABS and ABS Plus Absorbance ELISA Microplate Readers

Molecular Devices Spectramax Abs Plus Hero

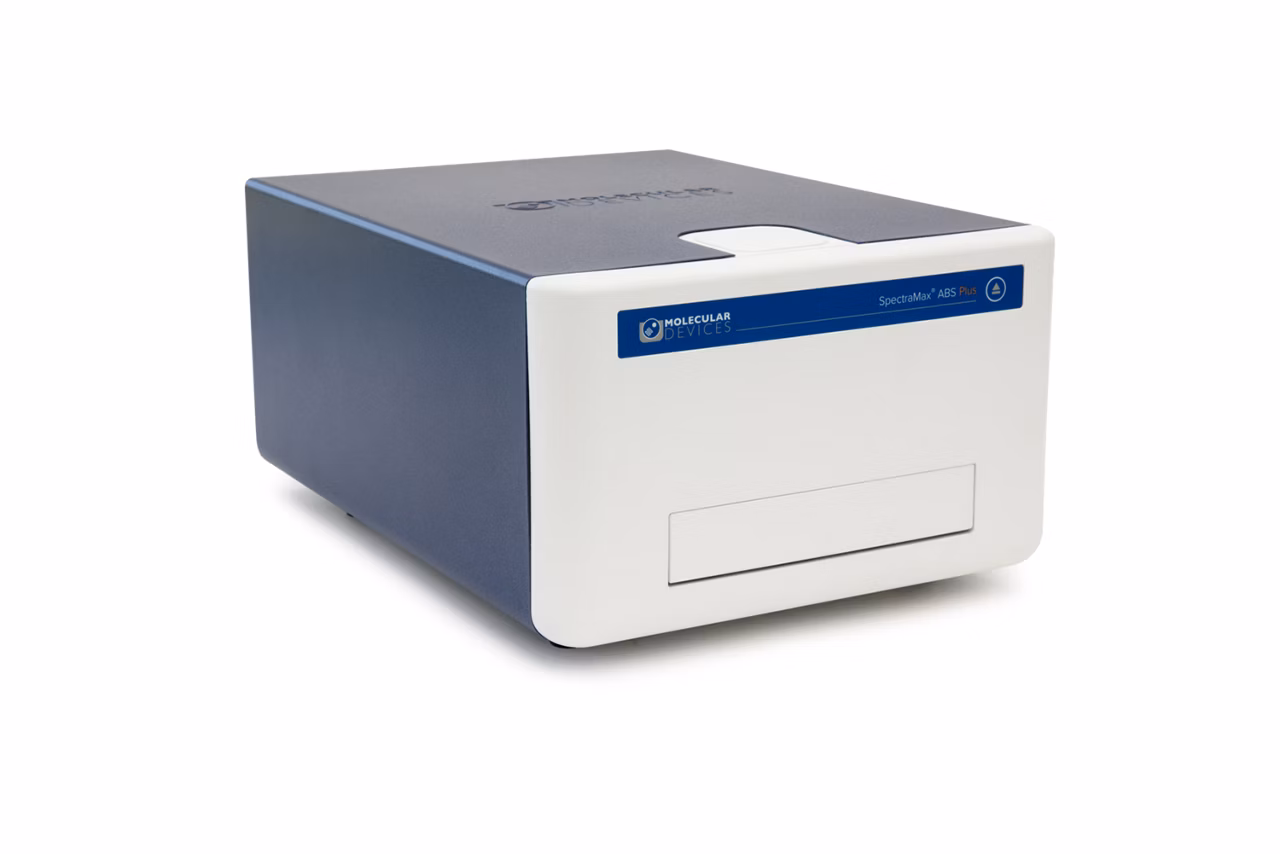

Molecular Devices Spectramax Abs And Abs Plus Image1

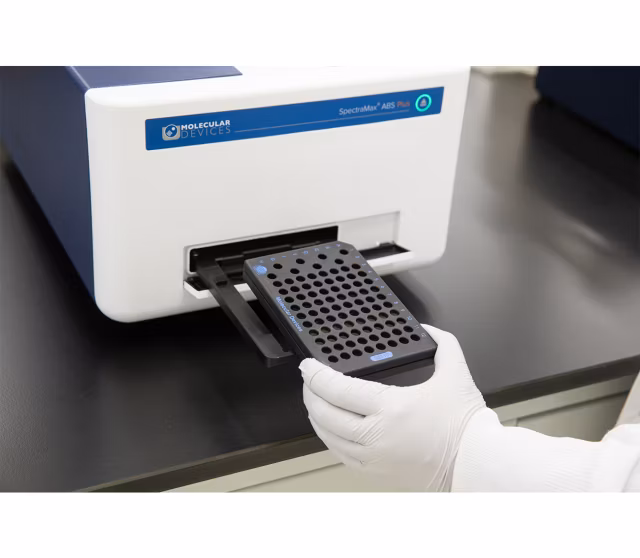

Molecular Devices Spectramax Abs Plus Image2

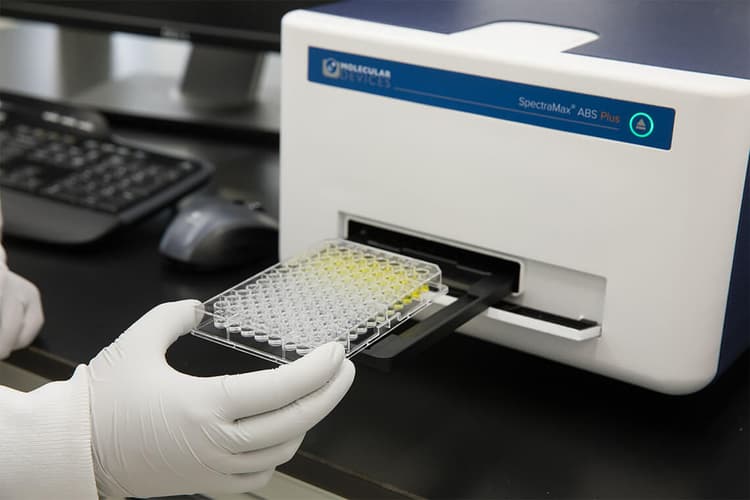

Molecular Devices Spectramax Abs Plus Image3

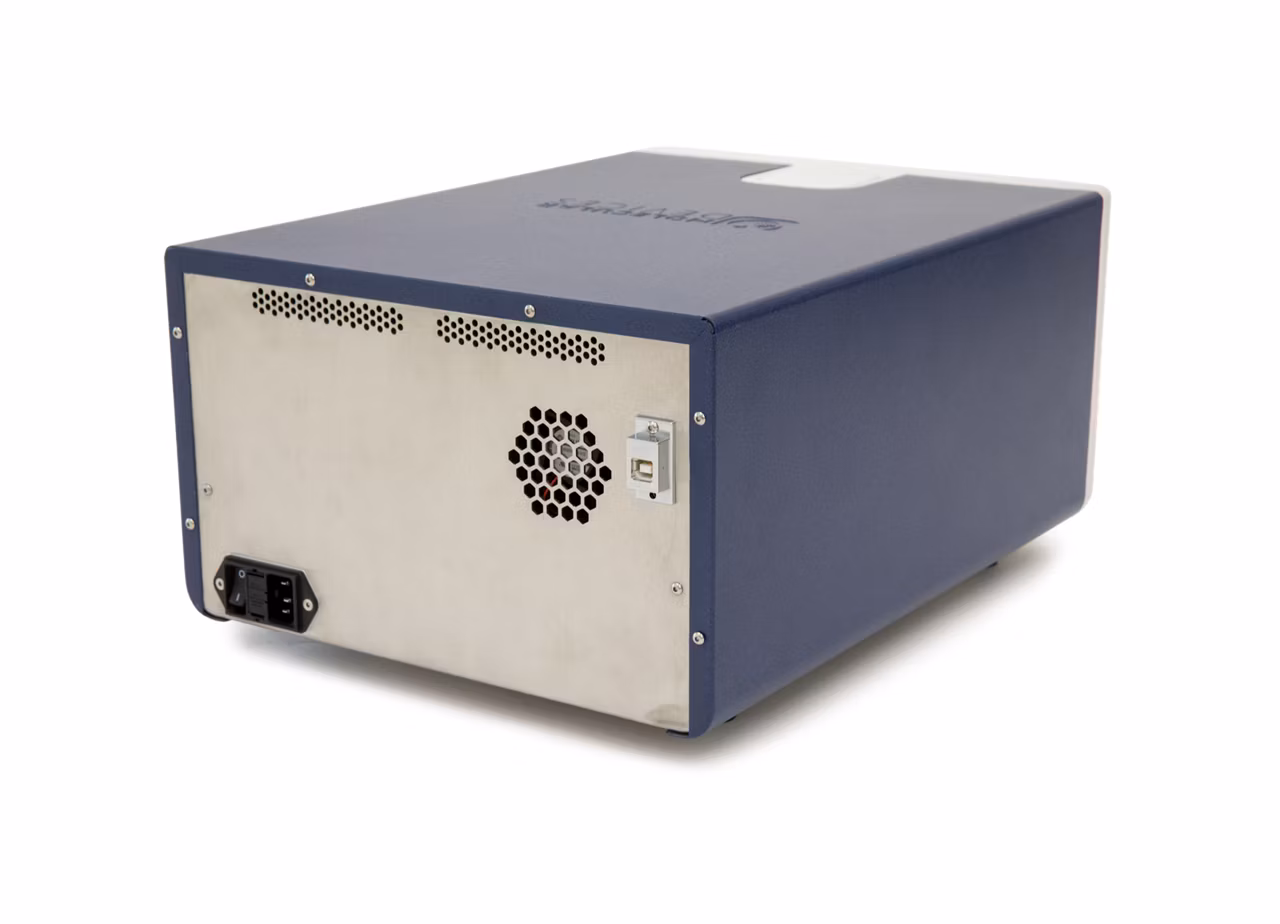

Molecular Devices Spectramax Abs Plus Image5

Molecular Devices Spectramax Abs And Abs Plus Image6

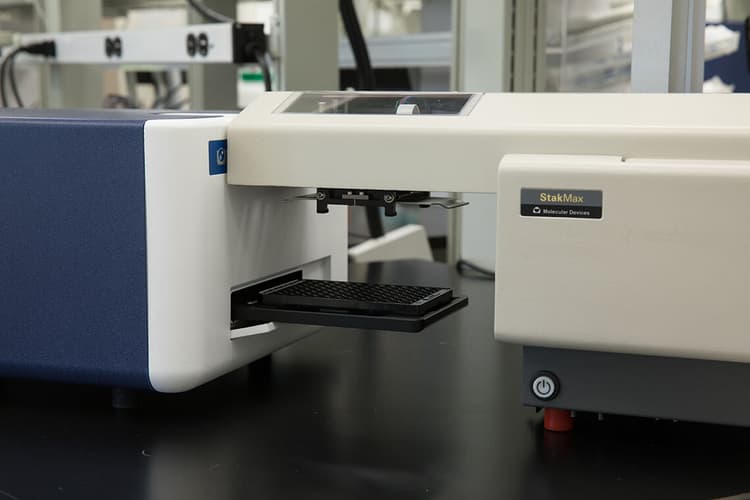

Molecular Devices Spectramax Abs And Abs Plus Image7

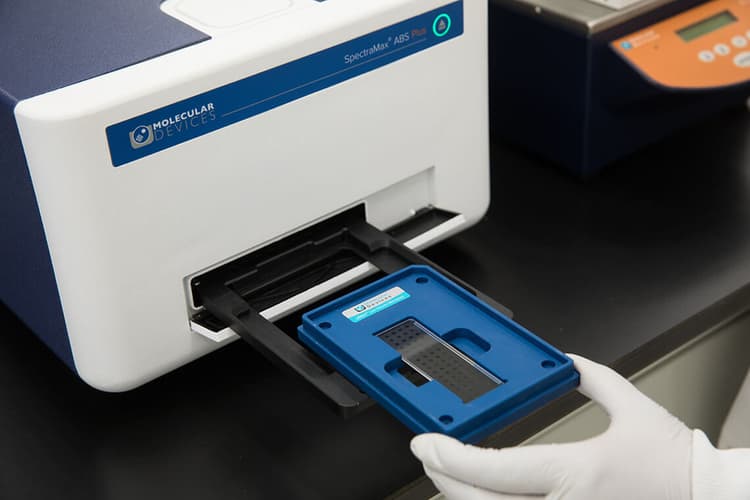

Molecular Devices Spectramax Abs Plus Image4

The SpectraMax® ABS and ABS Plus Absorbance ELISA Microplate Readers bridges the gap between the affordability of filter-based readers and the flexibility of monochromator-based systems with PathCheck® Sensor—the only patented technology available that measures the depth (optical pathlength) of samples in a microplate.

SpectraMax® ABS and ABS Plus absorbance microplate readers – A Filterless reader provide consistent results with steady temperature regulation

The SpectraMax® ABS and ABS Plus absorbance microplate readers provide flexibility, sensitivity, and convenience for a wide range of assays such as ELISAs, microbial growth, and protein quantitation. Both readers feature an 8-channel read head for fast reads and a subset feature, the temperature independent PathCheck sensor that automatically normalizes and ensures accurate absorbance values by detecting pipetting errors. Combined with a wide application base, industry-leading SoftMax® Pro Software and validation tools, these readers fit in every lab and every budget.

  • Eliminate filters

    Eliminate the need for purchasing and changing out filters with a monochromator-based wavelength selection for visible and UV-visible absorbance.

  • Get consistent results

    Mix samples thoroughly in microplate wells with user-programmable Automix feature and monitor temperature-sensitive reactions with consistent temperature regulation from ambient to 45°C.

  • Integrate with ease

    Measure micro-volumes: Compatible with the SpectraDrop™ Micro-Volume Microplate, enabling high-throughput measurement of low volumes (<5um) – ideal for DNA, RNA and protein quantification.

Key Features of SpectraMax® ABS and ABS Plus absorbance microplate readers

  • Pipetting errors eliminated

    This reader utilizes Molecular Devices' temperature independent PathCheck Sensor technology to measure the depth (optical pathlength) of samples in a microplate. It also allows for the elimination of standard curves.

  • Optimized optical path

    The reader’s unique quartz fiber optic system minimizes stray light for precise readings across a microplate. The spectral resolution ensures accuracy of DNA absorbance measurements.

  • Eight-channel optics

    The optical design of the reader enables simultaneous detection of 8 wells. The eight-channel system delivers both precision and speed across the microplate.

  • Dual wavelength reads

    The reader delivers high performance with round-bottom, flat-bottom or half-area well plates. Dual wavelength readings report the actual absorbance at each wavelength making data analysis convenient.

  • Flexibility to read a variety of plate formats

    SpectraMax® Absorbance Microplate Readers can run both cuvette-based and microplate reader applications on the same instrument. Read one sample or up to 384 in a single plate read using any standard cuvette, or 96- or 384-well microplate.

  • Validation made easy

    Verify the accuracy of your absorbance measurements with the SpectraTest® ABS1 Absorbance Validation Plate, using NIST-traceable standards. Testing can be done in your own lab, on your own schedule.

Dimensions
Item Height Range (Metric cm) 18.2-20.3 cm
Item Width Range (Metric cm) 30.5-58 cm
Specifications
Microplate Reader Type Absorbance Reader
Detection/Read Type(s) Endpoint, Kinetic
Fluorescence Intensity Read Time Range (sec) 5-40 sec
Minimum Absorbance Wavelength Range (Metric nm) 190-1000 nm
Maximum Absorbance Wavelength Range (Metric nm) 750-1000 nm
Microplate Photometric Accuracy < ±0.006 OD ±1.0%, 0-3 OD
Cuvette Photometric Accuracy < ±0.005 OD ±1.0%, 0-3 OD
Photometric Precision < ±0.003 OD ±1.0%, 0-3 OD
Light Source(s) Xenon Flash Lamp
Microplate Size Compatibility 96 well plate, 384 well plate
Microplate Shaking Mode(s) Linear
Wavelength Bandwidth Range (Metric nm) 2-8 nm
Wavelength Precision Plus/Minus Range (Metric nm) 0.2 nm
Wavelength Selection Monochromator tunable in 1 nm increments
Microplate Reader Validation Tool(s) Absorbance Validation Plate, SoftMax® Pro GxP Software
Includes Validation Tools Yes
Includes Cuvette Port Yes
Includes Imaging Capability Yes
Includes PathCheck™ Sensor Yes
Includes Western Blot Capability Yes
Robotics/Automation Compatible Yes
Includes Temperature Control Capability Yes
Minimum Temperature Control Range Added to Ambient Temperature (Metric °C) 5 °C
Maximum Temperature Control Range (Metric °C) 45 °C
Item Depth Range (Metric cm) 38-41.4 cm
