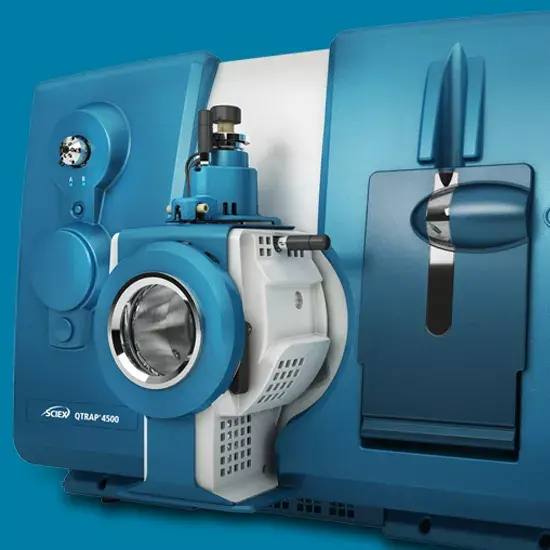

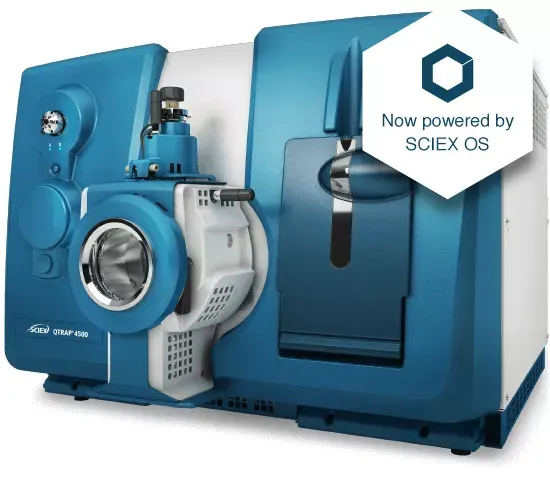

QTRAP® 4500 System

The LC-MS/MS workhorse, intelligently re-engineered

Known as the LC-MS/MS workhorse, this is the intelligently re-engineered design of the 4000 QTRAP platform, and sets a new benchmark for robust quantitation and library searching.

The system is ideal for laboratories requiring ultimate robustness, ruggedness, and reliability for high-throughput screening of many compounds in many samples every day.

Key Features

• Mass range

  Triple quadrupole: 5 – 2,000 Da. linear ion trap: 50 - 2,000 Da

• Flexible ionization options

  Options include electrospray ionization (ESI) and heated nebulizer ionization probes.

• Polarity switching

  50 msec in MRM and Scheduled MRM modes

• Detector type

  AcQuRate pulse counting CEM

• Features

  Turbo V ion source, pulse counting detector

• Scan types

  Q1 MS, Q3 MS, product ion, precursor ion, neutral loss or gain, MRM, EMS, EPI, ER, MS3, MRM3, TripleTrap scanning

• Ionization sources

  • Turbo V ion source housing with TurboIonSpray probe or APCI probe (max temp: 750ºC)
  • ESI flow rate range: 5 μL/min to 3 mL/min
  • APCI flow rate range: 200 µL/min to 3 mL/min



Cutting edge and reliable technology

The best of both

Maximize uptime with a system that can handle even the most difficult matrices with ease. Includes legendary Turbo V ion source, QJet ion guide design, and the ultimate pulse counting detector.

• Turbo V ion source

  This legendary source provides high-sensitivity analysis over a wide range of flow rates with quick-change APCI and TurboIonSpray probes.

• QJet ion guide

  The innovative design yields excellent ion containment and operates at high pressure, providing better collisional focusing to enhance ion transmission for ultimate sensitivity.

• AcQuRate pulse counting detector

  The detector technology works in combination with a pulse overlap correction algorithm, enabling more accurate and precise ion detection over a wide dynamic range.
