Sophisticated patch-clamp electrophysiology data acquisition and analysis software

Patch-clamp analysis software with Clampfit Advanced Analysis Module

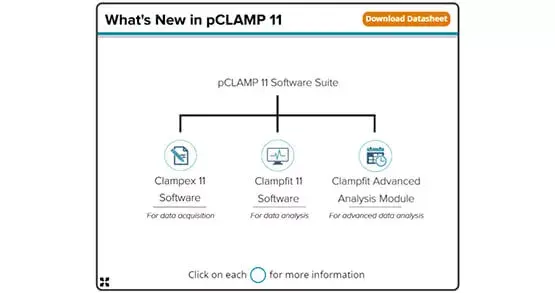

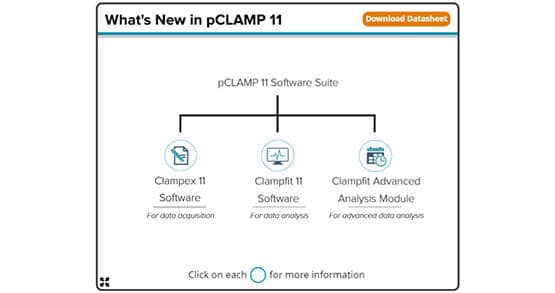

The pCLAMP™ Software Suite is an industry-leading patch-clamp electrophysiology data acquisition and analysis program for the control and recording of voltage-clamp, current-clamp, and patch-clamp experiments. The software suite consists of Clampex 11 Software for data acquisition, AxoScope 11 Software for background recording, Clampfit 11 Software for data analysis, and optional Clampfit Advanced Analysis Module for sophisticated and streamlined analysis.

  • Design advanced protocols easily

    The enhanced protocol editor enables up to 50 epochs instead of 10, providing the flexibility to program longer, more sophisticated protocols.

  • Streamline workflows*

    Batch analysis macros enable the analysis of data files in batches and eliminates the need to define parameters for every data set.

  • Analyze faster*

    Automated event detection analyzes spontaneous and evoked action potentials and post-synaptic data. Identify events based on a variety of factors.

Key Features of the pCLAMP™ 11 Software Suite

  • Comprehensive analysis tools

    The software includes a wealth of analysis tools including 24 cursor pairs for regions of interest search, graph plotting tools such as I-V plot and histogram, and more.

  • Improved visualization

    The membrane testwindow displays up to eight channels simultaneously, making it easier to control multiple channels.

  • Enhanced gap-free mode

    A simple continuous "chart-recorder" useful for monitoring single channel events, minis, and other spontaneous activities. Protocol-editor-style epochs and program digital or analog outputs can be executed.

  • Population spike analysis*

    This tool automatically calculates amplitude, area under the curve, half-width, decay and rise time, decay and rise slope, coastline of spike, and paired pulses.

  • Action potential analysis*

    This feature automatically detects and analyzes amplitude, APD90, rise and decay time, rise and decay slope, peak-to-peak frequency and time, and more.

  • Batch analysis*

    Macros for batch analysis eliminates the need to define parameters for every data set. Saved macros can be applied to multiple data sets for automatic analysis.

*Clampfit Advanced Analysis Module only

Specifications
Operating System Minimum: Windows 10 Pro (32-bit)**, Recommended: Windows 10, 11 Pro (32- or 64-bit)**
CPU Minimum: PC with 2 GHz processor, Recommended: PC with 2.0 GHz (or faster) Duo Processor
RAM Minimum: 1.2 GB RAM, Recommended: 4 GB or higher
Display Minimum: 1440 x 900 display, Recommended: 1920 x 1080 display or higher
Ports Minimum: 1 USB 1 port (for security key dongle), 1 USB 2.0 port (for Digidata digitizers), Recommended: 3 USB 2.0 ports
Compatible instruments Digidata 1550B 8-Channel Digitizer, Digidata 1440A 16-Channel Digitizer, MiniDigi 1B Two-Channel Digitizer, Axoclamp 900A Microelectrode Amplifier, Axopatch 200B Microelectrode Amplifier, MultiClamp 700B Microelectrode Amplifier, Most BNC-telegraphed amplifiers also supported*
