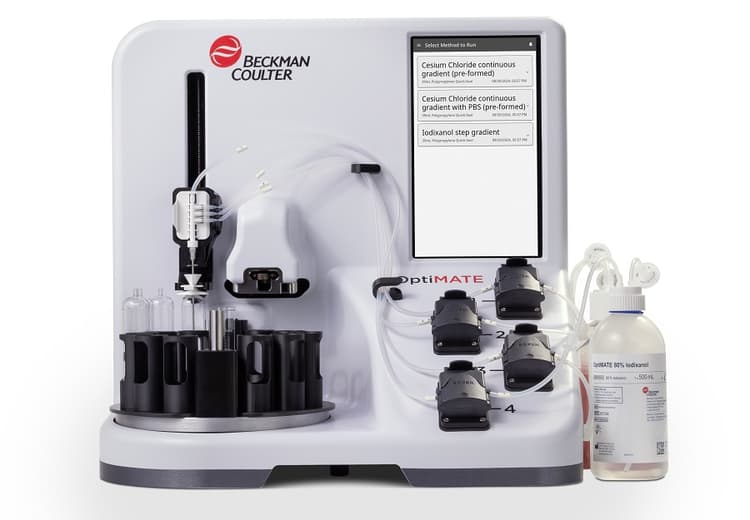

OptiMATE Gradient Maker for Density Gradient Centrifugation Sample Preparation
The OptiMATE Gradient Maker simplifies the laborious and error-prone density gradient ultracentrifugation (DGUC) process into an easy-to-maintain operation by automating nearly all pre-centrifuge steps, including gradient preparation, accurate dispensing, and tube sealing, significantly reducing run times without sacrificing purity or yield.
Automated dispense and tube sealing
- Significantly reduce error and improve reproducibility
- Compatible with most common Beckman Coulter tube sizes
- Compatible with Quick-Seal, OptiSeal, and Open-Top tubes
Pre-formed gradients
- Ability to dispense linear and step gradients
- Dramatically shorter run times (75+% reduction) for linear gradients
Simple GUI and method creation
- Train new operators in just hours, not weeks
- Published methods ensure consistency between runs and operators
- On-board visualization of gradient profiles
| Dimension | 47.2 x 29.8 x 46.0 cm (18.6 x 11.75 x 18.1 in) |
| Weight(lbs) | 15.42 kg (34 lbs) |
| Volume Accuracy | ± 4% |
| Section Homogeneity | ≤ 1% variation when using OptiMATE CesiumChloride|≤ 6% variation when using OptiMATE Iodixanol |
| Throughput | pesetting industry.Linear gradient: 6 tubes in 30 min|Step gradient: 6 tubes in 35 min |
| Power Supply Input | 100 to 240 VAC, 2 A, 50/60 Hz |
| Power Supply Output | 24 VDC, 3.75 A |
| Power Supply Efficiency | Class VI |
| Installation (overvoltage) Category | Category II |
| Ambient Temperature Range | 10 to 35° C |
| Humidity Range | 20 to 80% up to 31° C, linearly decreasingto 67% at 35° C |
| Ventilation Clearances | Sides: 7.6 cm (3 in.)|Rear: 2.5 cm (1 in.) |
| Sound Pressure Level | ≤ 58 dBA |
| Pollution Degree | 2 |
| Altitude | up to 2000 meters (6562 ft) |
