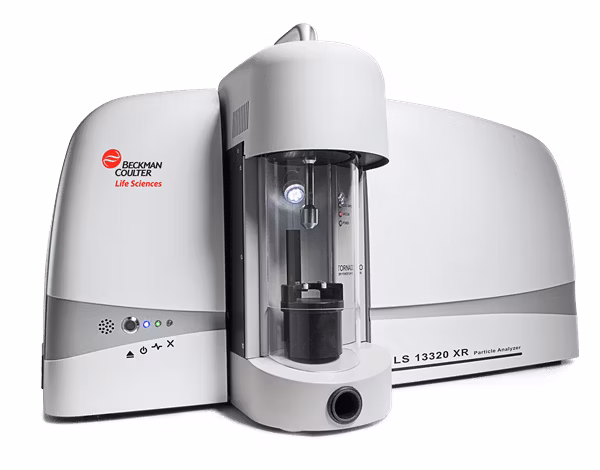

LS 13 320 XR Particle Size Analyzers

LS 13 320 XR Particle Size Analyzers

LS 13 320 XR Particle Size Analyzers

LS 13 320 XR Particle Size Analyzers

  • Direct particle detection from 10 nm - 3,500 µm
  • Automatically highlights pass/fail results for faster quality control
  • Pre-configured methods deliver results with 3 clicks or less

LS 13 320 XR Particle Size Analyzers Overview

For big improvements that help you spot small differences.

The LS 13 320 XR offers best-in-class particle size distribution data from advanced PIDS technology,* which enables high-resolution measurements and an expanded dynamic range. Like the LS 13 320, the XR particle size analyzer provides fast, accurate results, and helps you streamline workflows to optimize efficiency. Some big improvements help you reliably spot small differences that can have a huge impact on your particle analysis data.

  • Direct measurement range from 10 nm – 3,500 µm
  • Automatically highlights pass/fail results for faster quality control
  • Enhanced software that simplifies method creation for standardized measurements
  • New control standards to adequately verify instrument/module performance



LS 13 320 XR Particle Size Analyzers Features

Spot Small Differences

  • Expanded measurement range: 10 nm – 3,500 µm
  • Laser diffraction plus advanced Polarization Intensity Differential Scattering (PIDS) technology enable high-resolution measurement & reporting of real data down to 10 nm
  • Provides accurate, reliable detection of multiple particle sizes in a single sample

Easy-To-Use Software

  • ADAPT Software features automatic pass/fail check
  • Pre-configured methods deliver results with 3 clicks or less
  • Simplifies analyzer operation by experts & novice users alike
  • 1-click overlay with historical data
  • Intuitive user diagnostics keep you informed during sampling
  • Simplified method creation for standardized measurements

ADAPT Software enables 21 CFR Part 11

  • Customizable security system to meet diverse needs
  • Choose from 4 security levels
  • High-security configuration supports 21 CFR Part 11

PIDS Technology* for Direct Detection of 10 nm Particles

  • 3 light wavelengths (450, 600, & 900 nm) irradiate samples with vertical & horizontal polarized light
  • Analyzer measures scattered light from samples over a range of angles
  • Differences between horizontally & vertically radiated light for each wavelength yield high-resolution particle size distribution data
Resources
All
Sorting
Newest
Resources
pdf
LS 13 320 XR - Lase Diffraction Particle Size Analyzer
The LS 13 320 XR boosts laser diffraction particle size analysis to the next level, with its enhanced PIDS technology and extended measurement range providing higher resolution and more accurate, reproducible results. You can measure a wider range of particles and detect smaller differences in samples more quickly and reliably. And new software with an intuitive interface provides data you need with only a few clicks.
