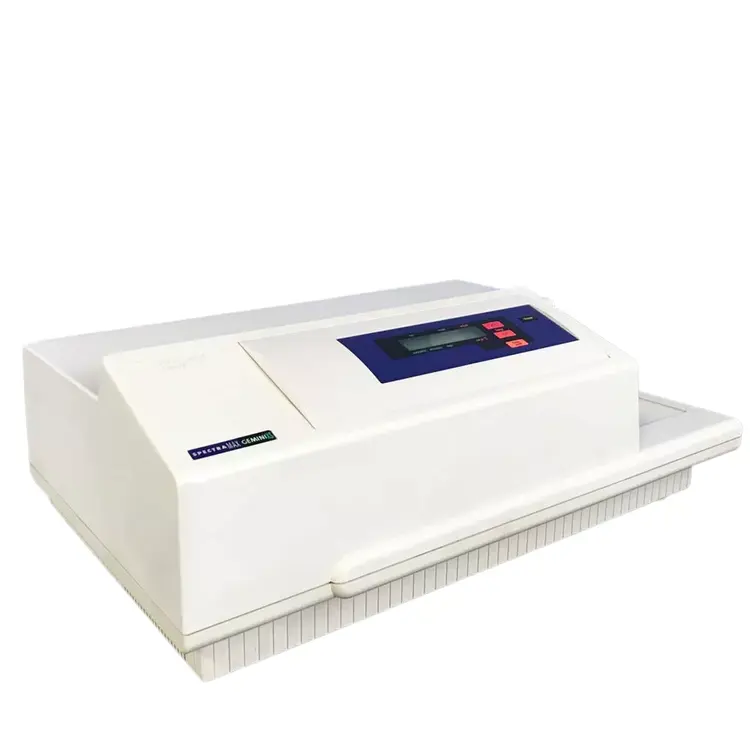

Gemini™ XPS and EM Microplate Readers
Fluorescence detection without filters
Multi-wavelength measurement without filters
The Gemini™ XPS and EM Microplate Readers with dual monochromators provide a flexible environment to determine the optimal excitation and emission settings for fluorescence intensity assays. Multiple-point well scanning optimizes cell-based assay sensitivity. Comparison of relative fluorescence units (RFUs) between samples is allowed by a unique calibration against an internal standard. Temperature-sensitive reactions are monitored with consistent temperature regulation from ambient to 45°C.
-
Eliminate changing out filters
Eliminate the need for identifying, purchasing, and changing out filters. Dual monochromators provide excitation and emission wavelength selection between 250-850 nm.
-
Measure more accurately
Well scanning reports fluorescent measurements from a single point in the center of a microplate well to multiple points across a tissue culture well.
-
Avoid losing high signals
Avoid losing high signals to detector saturation and find the correct reader settings with our patented Auto PMT Optimization System.
Features
-
Top-read capability
The top-reading Gemini XPS Microplate Reader measures fluorescence on a variety of sample formats from 6- to 384-well microplates in endpoint, kinetic, spectral scan, and well-scan modes.
-
Top and bottom-read capability
The top and bottom-reading Gemini EM Microplate Reader measures fluorescence on a variety of sample formats from 6- to 384-well microplates in endpoint, kinetic, spectral scan, and well-scan modes.
| Item Height Range (Metric cm) | 34 cm |
| Item Width Range (Metric cm) | 42 cm |
| Microplate Reader Type | Fluorescence Reader |
| Detection/Read Type(s) | Endpoint, Kinetic, Spectrum Scan, Well Scan |
| Fluorescence Intensity Read Time Range (sec) | 15 sec |
| Minimum Fluorescence Intensity Wavelength Range (Metric nm) | 250 nm |
| Maximum Fluorescence Intensity Wavelength Range (Metric nm) | 850 nm |
| Microplate Reader Detector(s) | Photomultiplier Tube |
| Light Source(s) | Xenon Flash Lamp |
| Microplate Size Compatibility | 6 well plate, 12 well plate, 24 well plate, 48 well plate, 96 well plate, 384 well plate |
| Microplate Shaking Mode(s) | Linear |
| Wavelength Bandwidth Range (Metric nm) | 9 nm |
| Wavelength Selection | Monochromator tunable in 1 nm increments |
| Microplate Reader Validation Tool(s) | Fluorescence Validation Plate, SoftMax® Pro GxP Software |
| Includes Validation Tools | Yes |
| Robotics/Automation Compatible | Yes |
| Includes Temperature Control Capability | Yes |
| Minimum Temperature Control Range Added to Ambient Temperature (Metric °C) | 4 °C |
| Maximum Temperature Control Range (Metric °C) | 45 °C |
| Item Depth Range (Metric cm) | 42 cm |
