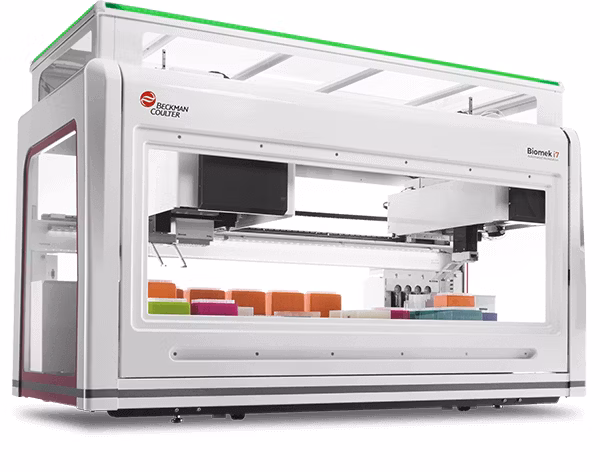

Biomek i7 Automated Workstation
The most powerful and comprehensive Biomek available.
- High-throughput
- 45 deck positions
- 0.5 - 5,000 µL pipetting volume range
- Single or dual heads
Biomek i7 Automated Workstation Features
Versatile Workspace
- Spacious, open-platform with grid-based deck
- Up to 45 deck positions
- Internal LED light
- Automated Labware Positioners (ALPs) for sample processing
- Optional enclosed version to protect samples from airborne particles
- Integrate additional devices on- or off-deck
- Configurable for specific applications
Flexible Pipetting and Workflow Management
- Multiple single- & dual-arm configurations with Multichannel heads (96/384/Pin tool) and/or Span-8 pipetting
- Large-volume 1 mL multichannel pipetting head
- High-access, rotating gripper(s) with unique offset finger design
- Disposable & fixed Biomek pipette tips (including septum piercing)
- Transfer volumes from 0.5 µL - 5,000 µL
- Independent Span-8 probe calibration
- 8 channel liquid-level sensing
- Supports labware from tubes to 1,536-well microplates
- Accurate intra-well pipetting
Simple System Operation
- Easily automate existing processes & execute quick workflow changes
- Powered by icon-based software with data tracking & LIMS connectivity
- Windows 10 OS
- Extend walk-away operation with process management and scheduling software
- Guided system setup
- Automated deck framing
- Data-driven method operations including hit-picking & normalization
- Light curtain safety feature
- Instrument status light bar
- DeckOptix cameras for live, remote-monitoring & on-error video capture
Application-focused Solutions
- Consultative workflow analysis
- Expert application & technical support
- Biomek-automated demonstrated methods & capabilities for genomic, drug discovery & basic research workflows
| Liquid Handler Type | Tip-Based Liquid Handling |
| Instrument Platform | Biomek i-Series |
| Power Requirements | 100-240 VAC, 50/60 Hz, 10 A |
| Computer Operating System | Windows® 10 |
| Instrument Software | Biomek Method Launcher, Biomek PowerPack software, Biomek software, DART 2.0 software, SAMI EX scheduling software |
| Minimum Operating Temperature Range (Metric °C) | 10 °C |
| Maximum Operating Temperature Range (Metric °C) | 30 °C |
| Pod and Tool Type | 0.5 μL - 60 μL Multichannel-384 Head, 1μL - 300 μL 96-Channel Head, 5 μL -1200 μL 96-Channel Head, Span-8 Pod |
| Liquid Handler Tip Type | T1020_WB, T1070, T190F_LLS, T230, T230_LSS, T230_WB, T25F_384, T30_384, T40F, T40F_384, T40F_LSS, T50_384, T50F, T50F_LLS, T80_384, T80_LLS, T90, T90_LSS, Fixed100, SeptaFluted |
| Operating Modes | Controlled by Operator, Manual, Semi-automated |
| Parts Materials | Aluminum Chassis, ABS Cover, Acrylic Panels, Aluminum sheet metal |
| Instrument Finish | High-gloss paint, Hardcoat anodized coating |
