Patch-clamp amplifiers from single channel, whole-cell, and two electrode recordings

Patch-clamp amplifiers from single channels to large macroscopic recordings

The Axon Instruments® series of amplifiers provide best-in-class solutions for the entire range of patch-clamp experiments. The portfolio of amplifiers includes Axopatch™ 200B for ultra low-noise single-channel recordings, MultiClamp™ 700B for whole-cell voltage-clamp and high-speed current-clamp recordings, and Axoclamp™ 900A for two-electrode voltage-clamp and current-clamp recordings.

  • Minimize signal to noise ratio

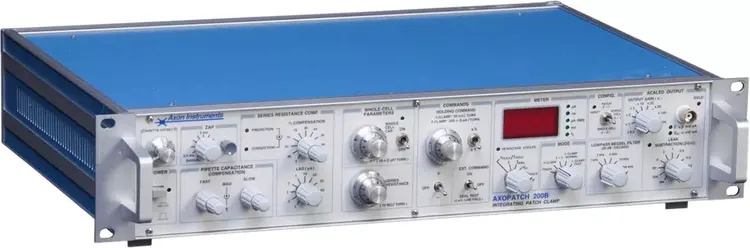

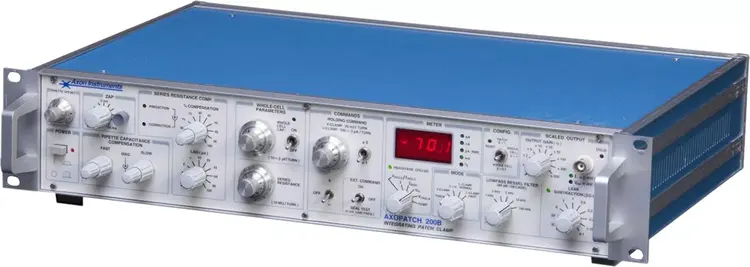

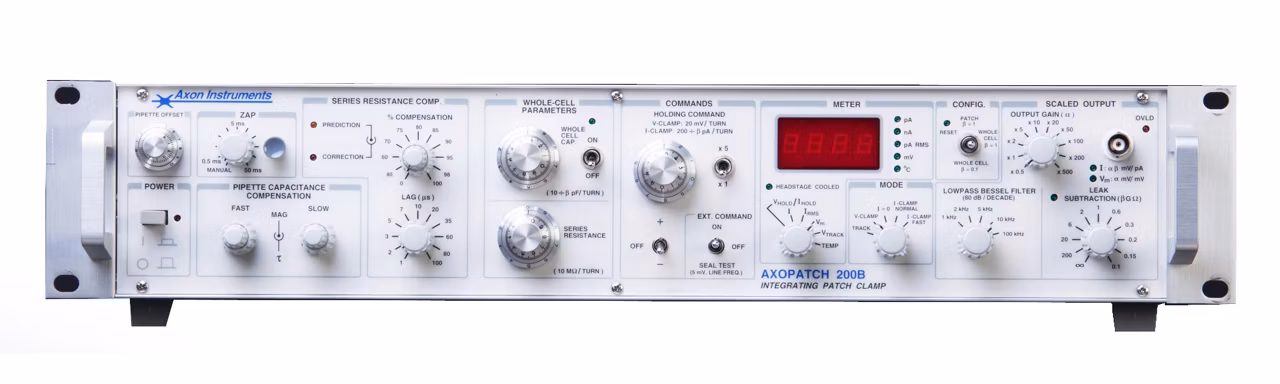

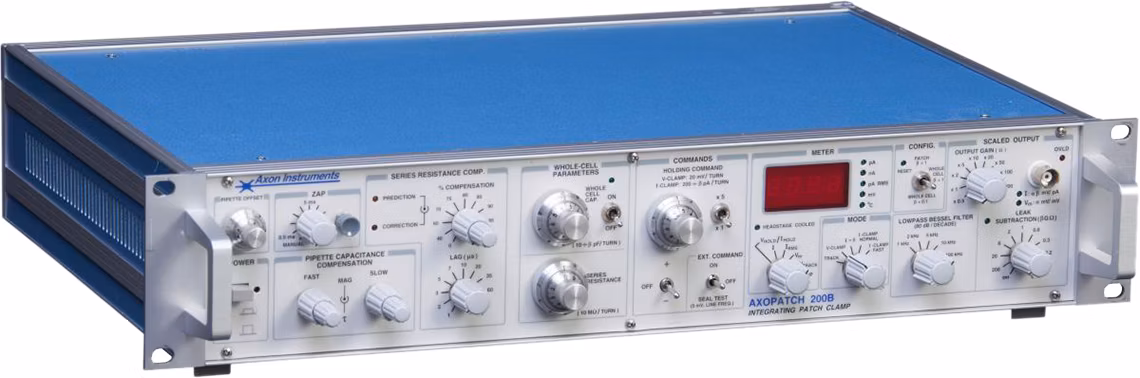

    The Axopatch 200B Capacitor Feedback Patch Clamp Amplifier offers one of the lowest-noise single-channel recordings available via innovative capacitor-feedback technology.

  • Perform multi-channel experiments

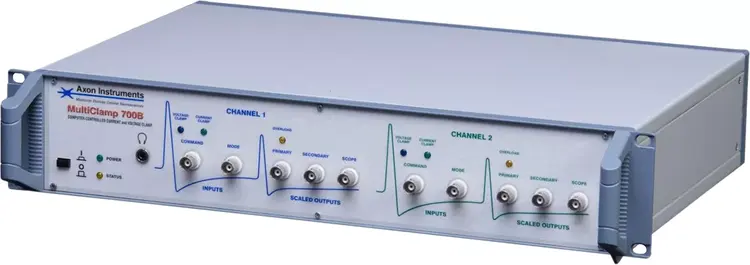

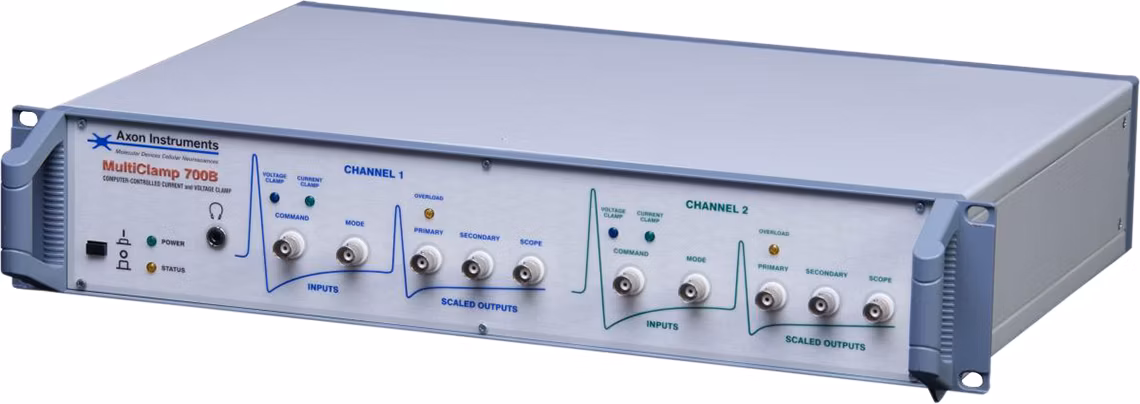

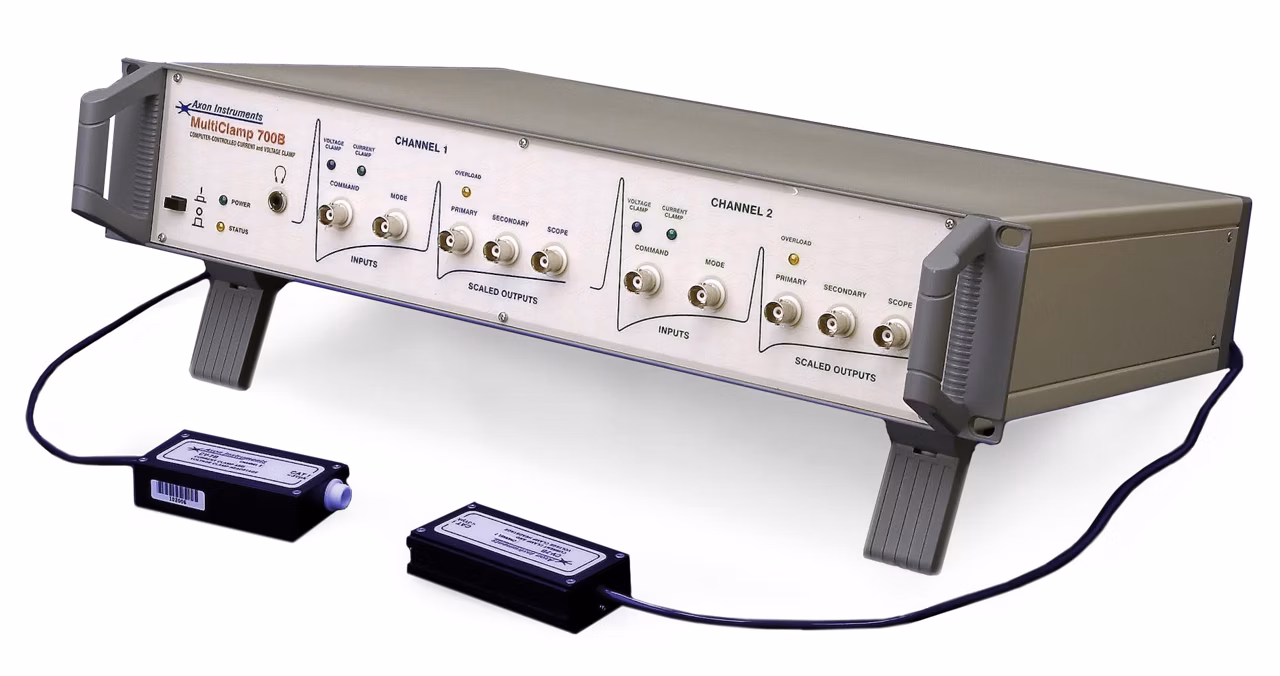

    The MultiClamp 700B Microelectrode Amplifier enables whole-cell voltage-clamp and current-clamp recordings. It is the most versatile amplifier in the portfolio.

  • Measure large currents

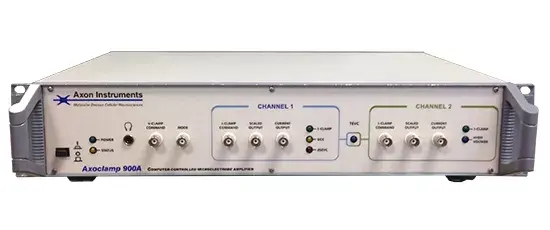

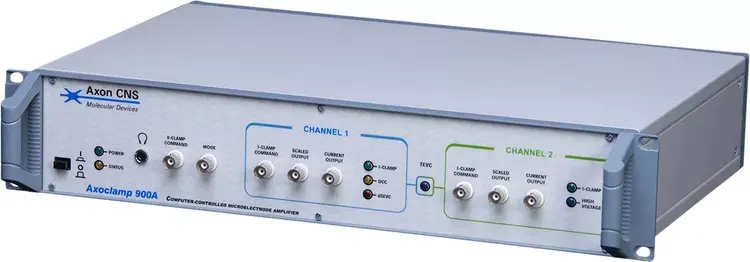

    Large output compliance range of our Axoclamp 900A Microelectrode Amplifier facilitates the measurement of large and rapid voltage-clamp and current-clamp recordings.



Features

  • Actively cooled headstage

    The Axopatch 200B amplifier features proprietary technology that provides active headstage cooling that reduces electrical noise close to the theoretical limits of physics.

  • Software control of settings

    The MultiClamp 700B and Axoclamp 900A amplifiers offer software control. Software control streamlines setup, and enables automation of parameters, telegraphing, and advanced protocols.

  • Support up to four headstages

    The MultiClamp 700B supports up to two primary CV-7B headstages and two optional auxiliary headstages (HS-2 or VG-2 type) enabling multi-channel recording for cellular network studies.

  • Large output compliance range

    The Axoclamp 900A amplifier supports the measurement of larger currents and ensures faster clamp speed (±180 V in TEVC and HVIC modes).

  • Multiple modes of operation

    The Axoclamp 900A amplifier offers 5 modes of operation: current clamp, discontinuous current clamp, two-electrode voltage clamp, discontinuous single-electrode voltage clamp, high-voltage current clamp.

  • Works with any data acquisition system

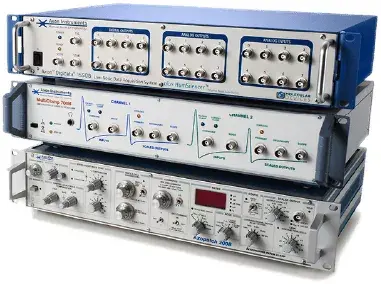

    The family of amplifiers integrates with most data acquisition programs. The pCLAMP™ 11 Software and DigiData® 1550B system for data acquisition and analysis provide optimal performance.



Which amplifier is right for me?

  Axopatch 200B Amplifier MultiClamp 700B Amplifier Axoclamp 900A Amplifier
Single-channel recording x x
Whole-cell voltage-clamp x x
Whole-cell current-clamp x x x
Bilayer study x x
Extracellular field-potential recording x x x
Amperometry/voltammetry study x x
Nanopore study x x
Intracellular sharp-electrode recording x x x
Two-electrode voltage-clamp recording     x
Resources
All
Sorting
Newest
Resources
PDF
Axon Axoclamp 900A Microelectrode Amplifier
The Axon Axoclamp 900A Microelectrode Amplifier is a computer-controlled amplifier that is used for current-clamp and voltage-clamp applications.
PDF
Axon Axopatch 200B Microelectrode Amplifier
A patch-clamp amplifier that incorporates capacitor-feedback technology to provide the lowest-noise single-channel recording available. Optimized for whole-cell and single-channel recordings with ultra-low noise.
