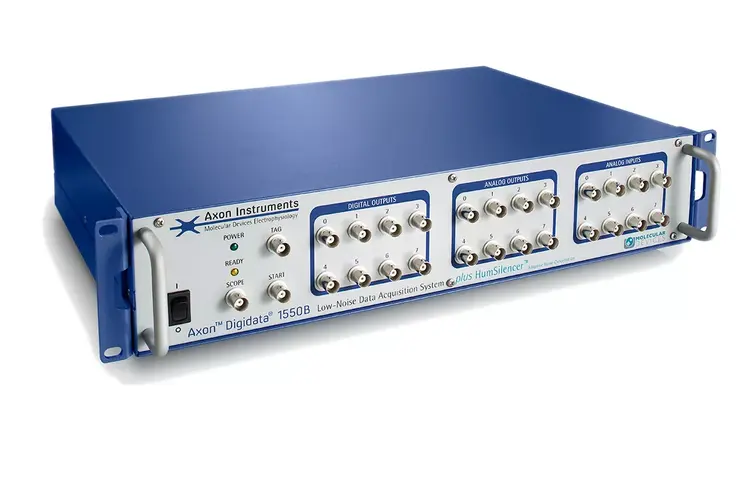

Axon™ Digidata® 1550B Low-Noise Data Acquisition System plus HumSilencer
High-resolution, low-noise digitizer with 50/60 Hz line-frequency noise elimination
Key Features of the Axon Digidata 1550B Digitizer
-
50/60 hz noise cancellation
HumSilencer is an advanced feature that learns, adapts, and eliminates local 50/60 Hz line-frequency noise patterns and associated high-frequency harmonics from incoming signal up to 20 V peak-to-peak.
-
Noise canceling
HumSilencer is not a filter and has no effect on acquired signals. It causes no signal distortion such as frequency change, amplitude attenuation, phase shift, or DC voltage change.
-
Wide range of input signals
Digidata 1550B digitizes a wide range of input signals from -10 to +10 V.
-
HumSilencer adaptation
HumSilencer automatically recognizes changes in noise amplitudes and adapts by removing noise in less than one second.
-
Optimized for pCLAMP 11 Software
The pCLAMP Software suite is the most widely-used patch-clamp electrophysiology data acquisition and analysis program for control and recording of voltage-clamp, current-clamp, and patch-clamp experiments.
-
Three configurations

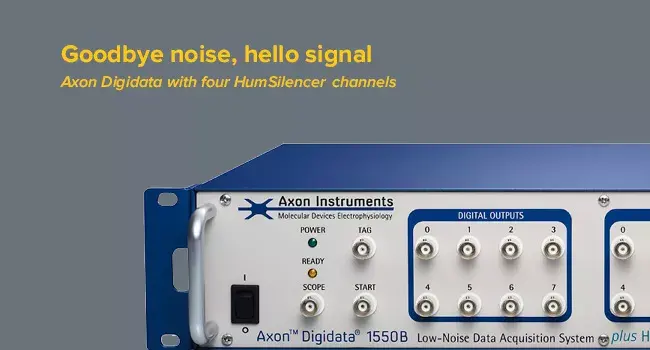

Three configurations are available: Digidata 1550B4 with four HumSilencer channels, Digidata 1550B1 with one HumSilencer channel, and Digidata 1550B0 without a HumSilencer channel.
Applications of Axon Digidata 1550B Low-Noise Data Acquisition System plus HumSilencer
- Cellular Pathway Analysis
- Digital Acquisition
- Disease Research
- Drug Discovery & Development
- HumSilencer Technology

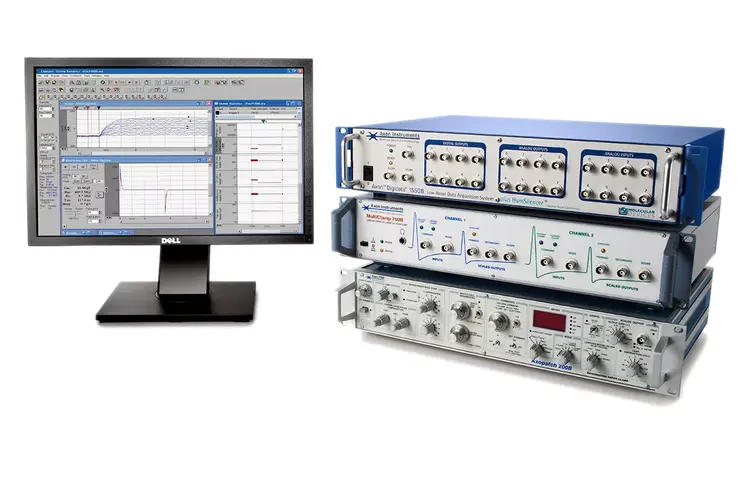

The digitizer that enables acquisition of patch-clamp data
The Axon™ Digidata® 1550B plus HumSilencer® is one of the most advanced analog-to-digital signal converters on the market, offering the innovative line synchronous noise-cancelling feature, HumSilencer. This advanced feature learns, adapts, and eliminates local 50/60 Hz line-frequency noise and high-frequency harmonics from incoming signals. The digitizer works with pCLAMPTM 11 Software for data acquisition and analysis. The software supports eight channels of analog acquisition and four acquisition modes.
Eliminate line-frequency noise
HumSilencer removes 50/60 hz line-frequency noise on up to four channels in parallel. The function is quickly enabled through a software checkbox.
Record high resolution traces
All eight analog input channels can be simultaneously digitized at an impressive sampling rate of 500 kHz per channel.
Digitize cellular network studies
With Digidata 1550B system, you can now record cellular networks without 50/60 Hz line-frequency noise in a single digitizer while saving money, time, and reducing hassle.
| Maximum input signal (total of noise + signal) | ±10 V |
| Maximum noise amplitude | 20 V, peak-to-peak (on a 0 V signal) |
| Noise cancellation | Line-frequency (50 Hz / 60 Hz) and harmonics to 10 kHz |
| Cancellation response time | < 1 second |
| Number of input channels | 8 single-ended |
| Number of ADCs | 8 |
| Sampling rates | 1 Hz - 500 kHz |
| Input range | -10.000 V to +10.000 V |
| Input resistance | >1 MΩ |
| Gain value | 1 |
| Number of channels | 8 |
| Number of DAC | 8 |
| Output range | -10.000 V to +10.000 V |
| Output impedance | < 0.5 Ω |
| Output short circuit to signal ground | ±25 mA |
| Number of bits | 8 (of 16) supported in software |
| Scope | Dedicated trigger output |
| Output driver | Advanced CMOS (AC) compatible |
| Output current | ±4 mA source, cable |
| Type | USB 2.0 braided |
| Length | 3 meters |
| Input type | TTL compatible |
| TAG | Rising-edge sensitive |
| Resolution | 16-bit |
