AquaMax® Microplate Washer
Microplate washers for biochemical and cell-based assays
Efficient cell washing with minimal cell loss and optimal assay performance

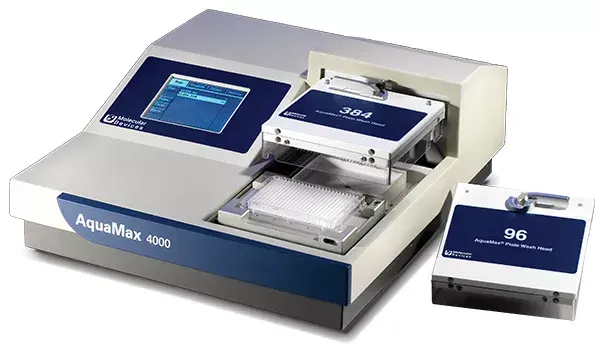

The AquaMax® Microplate Washer is a fully self-contained system, configurable for both 96- and 384-well microplates. Use preconfigured wash, soak, and aspiration protocols or create your own multi-step protocol using the simple touchscreen interface. For biochemical assays, the washer removes unbound material and unreacted reagents. For cell-based assays, the washer has the option for 96- or 384-well cell wash heads with angled pins to allow extremely gentle washing of weakly adherent cell types.
-
Install easily

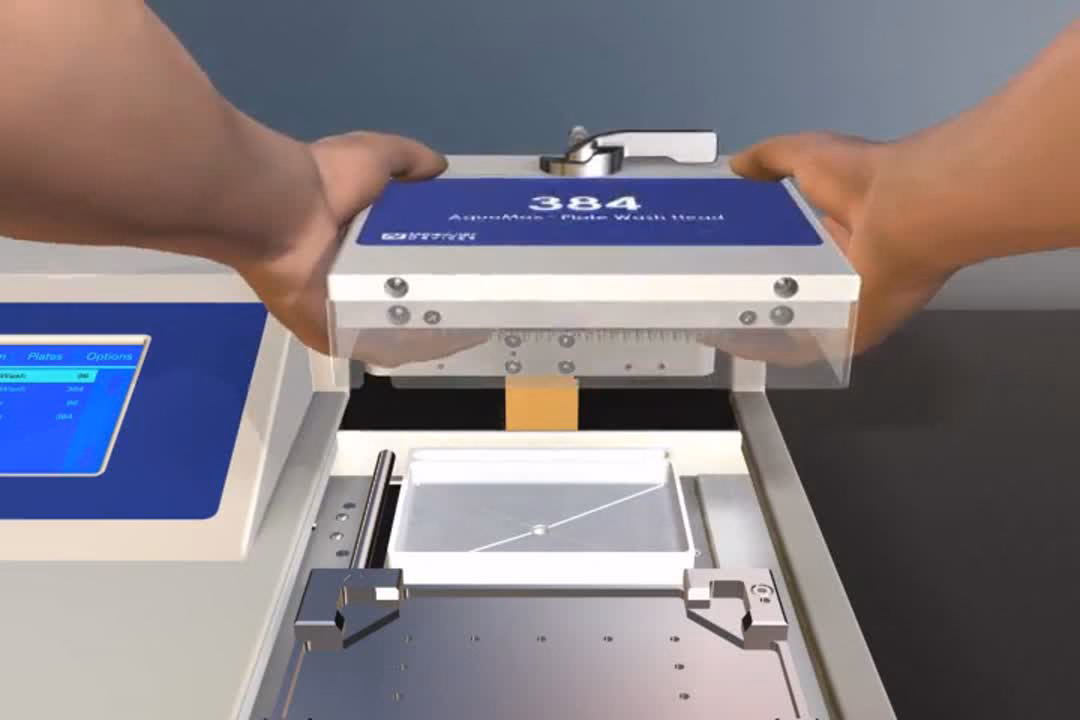

The washer does not require external pumps or a computer to operate, minimizing bench space. Interchangeable wash heads can be installed in seconds without tools, calibration, or alignment.
-
Eliminate plate indexing
Aspiration and dispensing of 96- and 384-wells occur simultaneously in all wells leading to high-precision assays and faster microplate processing without mechanical plate indexing or quadrant processing.
-
Run multiple wash protocols
Two- or four-fluid inlets with matching color-coded tubing facilitate quick assembly of the buffer and solution bottles and allow multiple wash protocols to be run without switching bottles.
Features
-
Trouble-free operation
Comprehensive cleaning protocols can be activated at the touch of a button for trouble-free operation. A standby feature keeps the washer primed and probe tips submersed in buffer for instant startup.
-
Versatility
Precise dispense and aspiration control allow processing without cell disruption. Fast sequential, continuous, and bottom washing options reduce wash times to a minimum.
-
Flexibility
By using automatically-detected, interchangeable 96 and 384 wash heads, the AquaMax washer configures easily to meet current and future, higher-density microplate application requirements.
-
Automation
The washer is easy to integrate with the latest automation tools. It is compatible with the Molecular Devices StakMax® Microplate Stacker and many robotic plate handlers.
| Dimension | 24" W x 18" D x 36" H |
| Weight(lbs) | 127 lb |
| Volume Accuracy | ±0.5% |
| Section Homogeneity | 98.2% |
| Throughput | 450 units/hour |
| Power Supply Input | 115/230 VAC, 50/60 Hz, 8.5A |
| Power Supply Output | 24 VDC, 12A |
| Power Supply Efficiency | 87% |
| Installation (overvoltage) Category | CAT II |
| Ambient Temperature Range | 5°C to 40°C (41°F to 104°F) |
| Humidity Range | 10% to 85% RH, non-condensing |
| Ventilation Clearances | 6" minimum on all sides |
| Sound Pressure Level | 52 dB(A) at 1 meter |
| Pollution Degree | 2 |
