Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-alpha smooth muscle Actin antibody (ab5694)

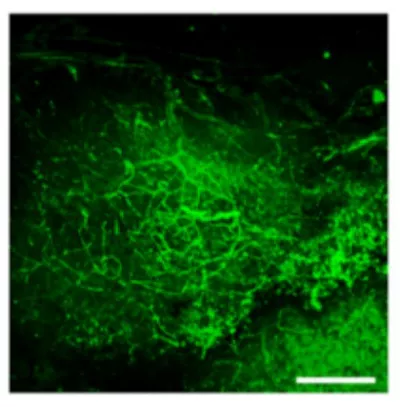

Pancreatic vessel imaging in the intact adult mouse pancreas. In adult mouse tissues (12 weeks old), imaging was performed after CLARITY. Three-dimensional projection clarified mouse pancreas with capillary immunostained for α-smooth muscle actin (green). Scale bar, 200 μm.
From a study, that aimed to improve the original CLARITY procedure and developed specific CLARITY protocols for various intact organs.
Image from Lee H. et al., BMC Dev Biol. 2014 Dec 21;14:48. Fig 2Bdoi: 10.1186/s12861-014-0048-3 Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/.
Western blot - Anti-alpha smooth muscle Actin antibody (ab5694)
Incubated with the primary antibody at 4°C overnight.
Incubated with the secondary antibody at room temperature for 1 hour.
Lanes 1 - 3:
Western blot - Anti-alpha smooth muscle Actin antibody (ab5694) at 1 µg/mL
Lanes 4 - 5:
Western blot - Anti-alpha smooth muscle Actin antibody (ab5694)
Lane 1:
HEK-293 (Human epithelial cell line from embryonic kidney) cell lysate - overexpressing alpha-Actin at 20 µg
Lane 2:
NIH/3T3 (Mouse embryonic fibroblast cell line) cell lysate at 20 µg
Lanes 3 and 5:
Mouse heart tissue homogenate at 20 µg
Lane 4:
NIH/3T3 cell lysate at 20 µg
Secondary
All lanes:
Fluor 750-conjugated goat anti-rabbit IgG (H+L) at 1/12500 dilution
Predicted band size: 42 kDa
Observed band size: 42 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-alpha smooth muscle Actin antibody (ab5694)

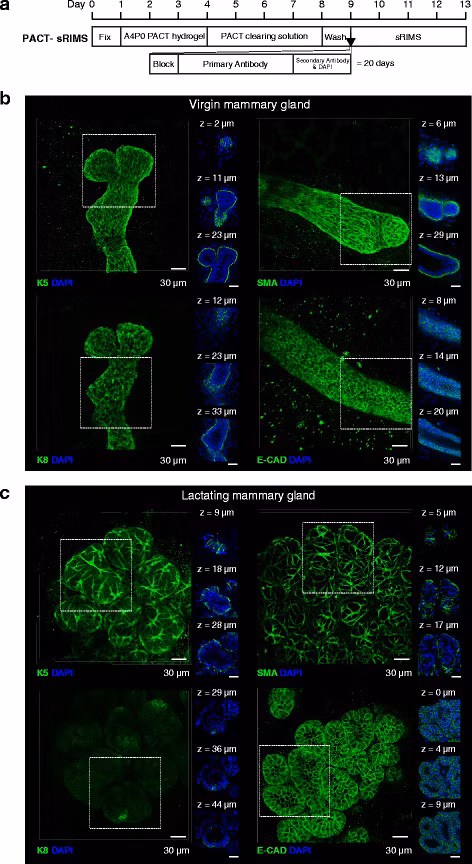

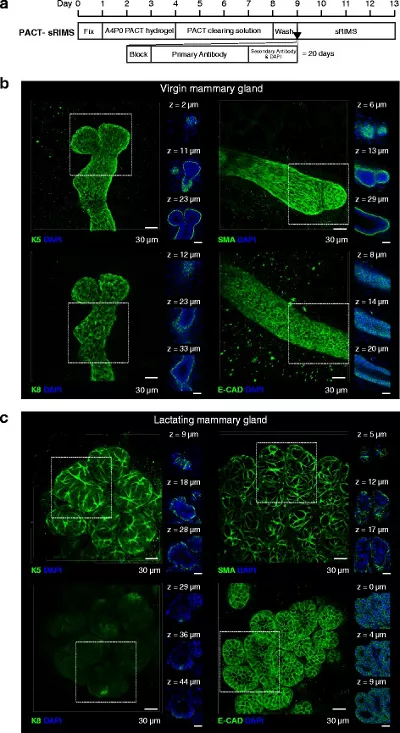

Passive CLARITY technique (PACT)-sorbitol refractive index matching solution (sRIMS) clearing and 3D imaging of virgin and lactating mouse mammary tissue. a PACT-sRIMS tissue clearing and immunostaining protocol and timeline. Three-dimensional confocal imaging of PACT-sRIMS-cleared virgin (b) and lactating (c) mammary glands immunostained with basal cell markers (K5 and smooth muscle actin (stained with ab5694)) and luminal cell markers (K8 and E-cadherin (E-CAD)). Main image shows the maximum intensity projection of the entire image sequence, with thin optical slices (1 μm) and their depth (z value) relative to the first image in the image sequence.
From a paper comparing imaging of intact virgin and lactating mammary glands using 3D imaging of solvent-cleared organs, see deep brain (seeDB), clear unobstructed brain imaging cocktails (CUBIC) and passive clarity technique.
Image from Lloyd-Lewis B. et al., Breast Cancer Res. 2016 18: 127. Fig 2.; doi: 10.1186/s13058-016-0754-9. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-alpha smooth muscle Actin antibody (ab5694)

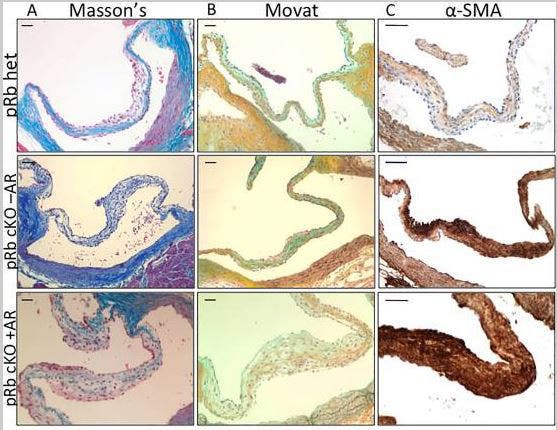

Representative histology of aortic valve leaflets from aged mice demonstrates changes in pRb cKO AoV
A) Masson's trichrome showing reduced collagen staining (blue) in leaflet from pRb cKO mouse with aortic regurgitation (AR). B) Movat pentachrome showing more diffuse collage staining (yellow) in fibrosa, but normal proteoglycan staining (blue) in the spongiosa layer of the leaflet from pRb cKO with AR. C) Immunohistochemistry for α-SMA, demonstrating presence of activated myofibroblasts throughout leaflets of pRb cKO mouse with and without AR. Scale bar is 50μm.
Alpha smooth muscle Actin is detected witn ab5694 at 1/1000 dilution.
(From Figure 2 of Freytsis et al)
Freytsis, M. et al PLoS One. 2018 Jan 5;13(1):e0190623. doi: 10.1371/journal.pone.0190623. eCollection 2018 Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-alpha smooth muscle Actin antibody (ab5694)

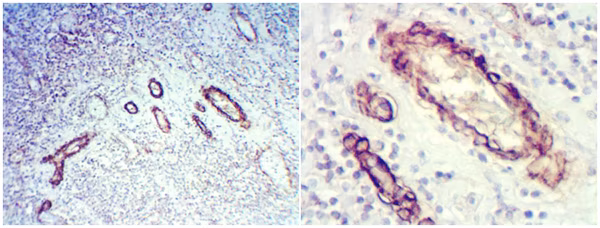

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue labelling alpha smooth muscle Actin with ab5694 at a dilution of 1/1000. Heat mediated antigen retrieval was performed for 35 minutes followed by cooling for 20 minutes. Sections were incubated with the primary antibody for 1 hour followed by incubation with a biotinylated secondary antibody (ab6720) for 30 minutes then HRP-Streptavidin for 30 minutes. Developed using DAB chromogen substrate (5-10 minutes). Counter stained with hematoxylin.
Magnification: left - 10X, right - 40X.
