Anti-GAPDH antibody [EPR16891] - Loading Control(AB181602)

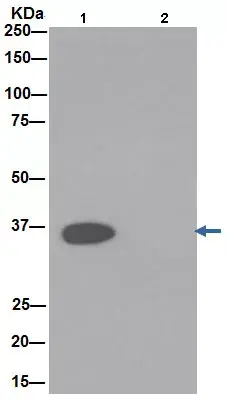

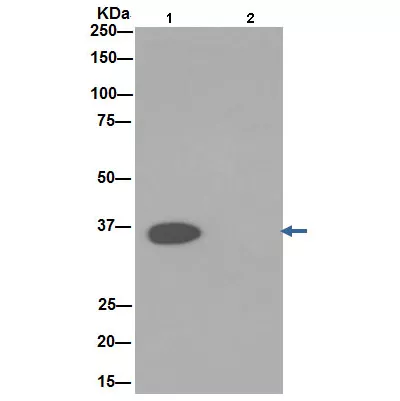

GAPDH was immunoprecipitated from 1mg of HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell extract with ab181602 at 1/60 dilution. Western blot was performed from the immunoprecipitate using ab181602 at 1/5000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.

Lane 1: HeLa whole cell extract.

Lane 2: PBS instead of HeLa whole cell extract.

Blocking and dilution buffer and concentration: 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602)

Predicted band size: 36 kDa

Observed band size: 36 kDa

Blocking/Dilution buffer: 5% NFDM/TBST.

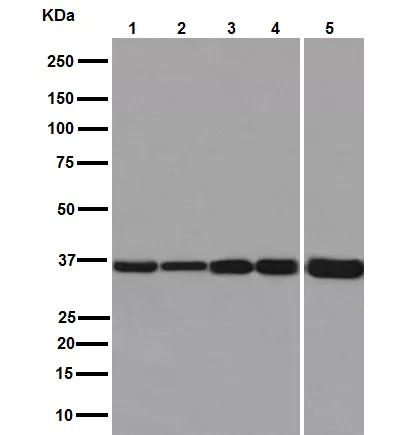

All lanes:

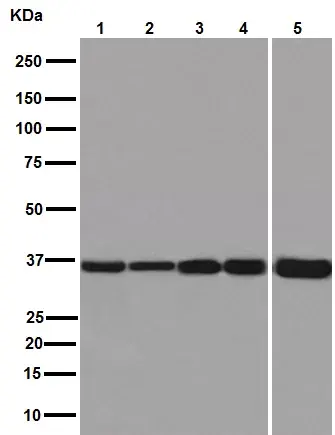

Western blot - Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) at 1/10000 dilution

Lane 1:

Mouse kidney lysates at 10 µg

Lane 2:

Mouse spleen lysates at 10 µg

Lane 3:

RAW 264.7 (Mouse macrophage cells transformed with Abelson murine leukemia virus) whole cell lysates at 10 µg

Lane 4:

PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysates at 10 µg

Lane 5:

Rat brain lysates at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

Predicted band size: 36 kDa

Observed band size: 36 kDa

Immunocytochemistry/immunofluorescence staining of 4% paraformaldehyde fixed; 0.1% triton X 100 permeabilized HeLa (human cervix adenocarcinoma) cells labeling GAPDH with ab181602 at dilution of 1/500. The secondary antibody used was Alexa Fluor^® 488; goat anti-rabbit IgG (ab150077) at a dilution of 1/400. Nucleus was counter-stained with DAPI (blue). ab7291, a mouse anti-tubulin antibody (1/500) was used to stain tubulin along with ab150120 (AlexaFluor^®594 goat anti-mouse secondary, 1/500). The negative controls are shown in the bottom middle and right hand panels- for negative control 1 primary antibody (ab181602; 1/500) and secondary antibody (ab150120; 1/500) was used. For negative control 2 primary antibody (ab7291; 1/500) and secondary antibody (ab150077; 1/400) was used.

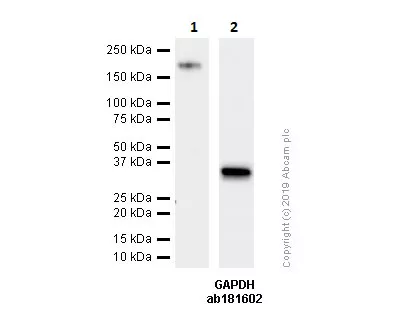

All lanes:

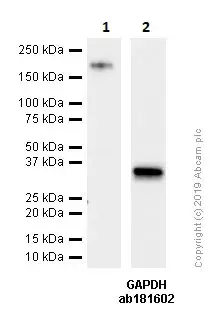

Western blot - Anti-ErbB2 / HER2 antibody [SP101] (ab231438)

All lanes:

SK-BR-3 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 0.05 µg/mL

Predicted band size: 137 kDa

Observed band size: 180 kDa

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling GAPDH with ab181602 at 1/2000 dilution, followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Nucleus and cytoplasmic staining on lymphocyte of rat spleen is observed. Counter stained with Hematoxylin.

Negative control: Using PBS instead of primary ab, secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour before being incubated with Anti-GAPDH antibody ab181602 overnight at 4°C. Antibody binding was detected using the Goat Anti-Rabbit IgG H&L (IRDye

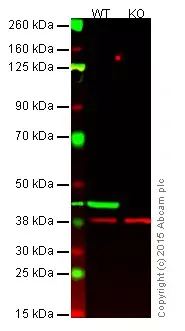

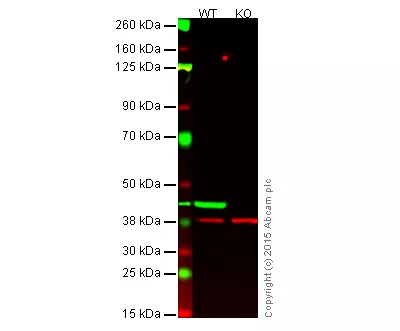

Image shows merged signal (red and green). Green - Anti-beta Actin antibody [AC-15] (ab6276)ab6276 observed at 42 kDa. Red - GAPDH loading control, ab181602, observed at 37 kDa.

Lanes 1 - 2: Western blot - Anti-beta Actin antibody [AC-15] (ab6276) at 1/5000 dilution

Lanes 1 - 2: Western blot - Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) at 1/10000 dilution

Lane 1: Wild-type HAP1 cell lysate (20 µg)

Lane 2: Beta actin knockout HAP1 cell lysate (20 µg)

Secondary

Lanes 1 - 2: Western blot - Goat anti-Mouse IgG H&L (IRDye^® 800CW) preadsorbed (ab216772) at 1/10000 dilution

Lanes 1 - 2: Western blot - Goat Anti-Rabbit IgG H&L (IRDye^® 680RD) preadsorbed (ab216777) at 1/10000 dilution

Predicted band size: 36 kDa, 41 kDa

Lane 1: Wild-type HAP1 cell lysate (20 μg)

Lane 2: Beta actin knockout HAP1 cell lysate (20 μg)

Lanes 1 and 2: Merged signal (red and green). Green - beta actin, ab6276 observed at 42 kDa. Red - loading control, ab181602 observed at 37 kDa.

ab6276 was shown to specifically react with beta actin in wild-type HAP1 cells. No band was observed when beta actin knockout samples were used. Wild-type and beta actin knockout samples were subjected to SDS-PAGE. ab6276 (beta actin) and ab181602 (loading control to GAPDH) were diluted 1/5000 and 1/10 000 and incubated overnight at 4°C. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preadsorbed (ab216772) and Goat Anti-Rabbit IgG H&L (IRDye^® 680RD) preadsorbed (ab216777) secondary antibodies at 1/10 000 dilution for 1 h at room temperature before imaging.

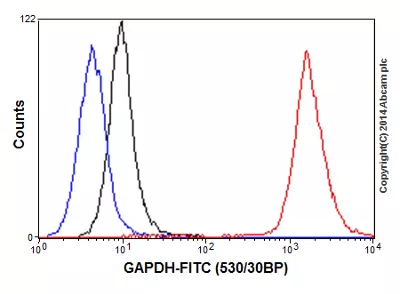

Intracellular flow cytometric analysis of 2% paraformaldehyde-fixed Jurkat (Human T cell leukemia cells from peripheral blood) cells labeling GAPDH with ab181602 at 1/180 dilution (red) compared with a rabbit monoclonal IgG isotype control (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/150 dilution was used as the secondary antibody.

Western blot : Mouse Monoclonal[L20/8] to PICK1 ab252543 staining at 0.5 µg/mL, shown in green; Rabbit anti GAPDH (ab181602) loading control staining at 1/20,000 dilution, shown in magenta. A band was observed at 50 kDa in Wild-type U-87 MG cell lysates with no signal observed at this size in PICK1 knockout U-87 MG cell line (ab326021). To generate this image, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3pc Milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4°C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Mouse 800CW & Goat anti-Rabbit 680RD at 1/20,000 dilution.

All lanes:

Western blot - Anti-PICK1 antibody [L20/8] (ab252543) at 0.5 µg/mL

Lane 1:

Wild-type U-87 MG at 20 µg

Lane 2:

Western blot - Human PICK1 knockout U-87 MG cell line (ab326021) at 20 µg

Lane 2:

PICK1 knockout U-87 MG at 20 µg

Lane 3:

MCF7 at 20 µg

Secondary

All lanes:

Goat anti-Mouse 800CW & Goat anti-Rabbit 680RD at 1/20000 dilution

Predicted band size: 47 kDa

Observed band size: 50 kDa

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : HepG2, A549

The identity of the lower MW band at approximately 37 kDa is unknown.

Lanes 1-3 are incubated with Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1/20000 dilution and lane 4 are incubated with Goat Anti-Rabbit IgG (HRP) at 1/2000 dilution.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) (1 : 200000) (36KDa).

All lanes:

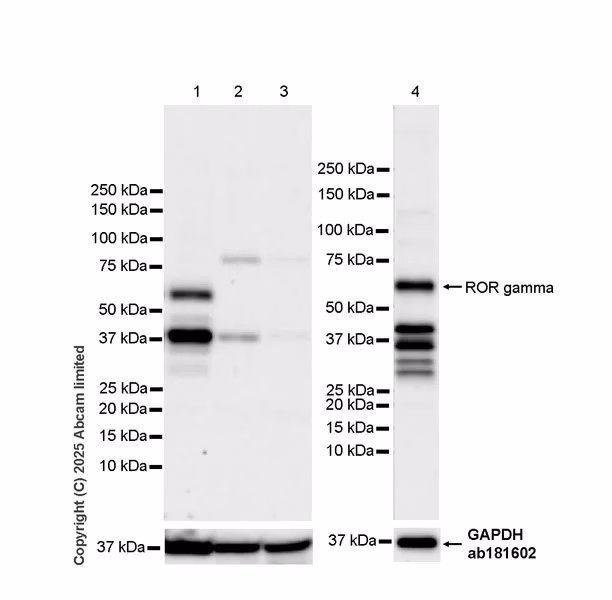

Western blot - Anti-ROR gamma antibody [EPR27137-10] (ab325651) at 1/1000 dilution

Lane 1:

SR (human pleural effusion lymphoblast) whole cell lysate at 20 µg

Lane 2:

HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

A549 (human lung carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

Human thymus tissue lysate at 20 µg

Secondary

Lanes 1 - 3:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/20000 dilution

Lane 4:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 55 kDa,36 kDa

Exposure time: 59s

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : kidney, liver(PMID : 25760323).

The samples are unboiled.

The band pattern observed is consistent with what has been described in the literature (PMID : 34833992).

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) (1 : 200000) (36KDa).

All lanes:

Western blot - Anti-Cannabinoid Receptor I antibody [EPR30843-34] (ab325797) at 1/1000 dilution

Lane 1:

Human cerebellum tissue lysate at 40 µg

Lane 2:

Human kidney tissue lysate at 40 µg

Lane 3:

Mouse brain tissue lysate at 40 µg

Lane 4:

Mouse cerebellum tissue lysate at 40 µg

Lane 5:

Mouse kidney tissue lysate at 40 µg

Lane 6:

Mouse liver tissue lysate at 40 µg

Lane 7:

Rat brain tissue lysate at 40 µg

Lane 8:

Rat cerebellum tissue lysate at 40 µg

Lane 9:

Rat kidney tissue lysate at 40 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 37 kDa,50 kDa,36 kDa

Exposure time: 6s
