Sandwich ELISA - Human TNF alpha ELISA Kit (ab181421)

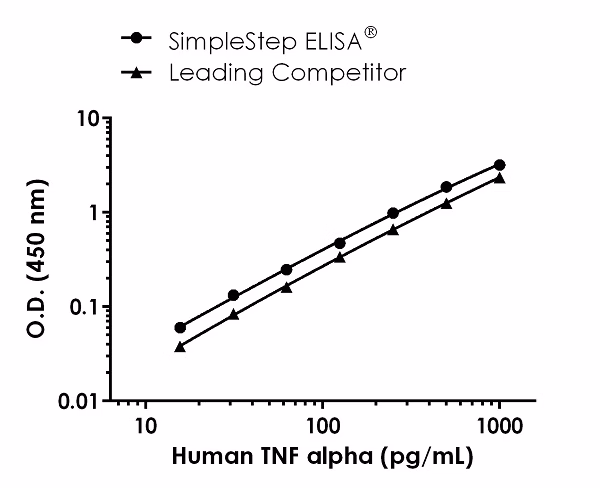

Human TNF alpha standard curve comparison.
Standard Curve comparison between human TNF alpha SimpleStep ELISA kit and traditional ELISA kit from leading competitor. SimpleStep ELISA kit shows increased sensitivity.
Sandwich ELISA - Human TNF alpha ELISA Kit (ab181421)

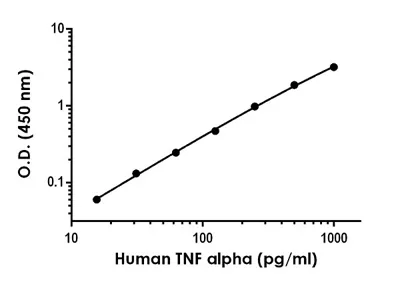

Example of human TNF alpha standard curve in Sample Diluent NS.
The TNF alpha standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - Human TNF alpha ELISA Kit (ab181421)
Interpolated concentrations of native TNF alpha in human PBMC cell culture supernatant samples.
PBMC cells were treated with 1.5% PHA-M for 46 hours in 10F RPMI. The concentrations of TNF alpha were measured in duplicates, interpolated from the TNF alpha standard curve and corrected for sample dilution. Undiluted samples are PHA-M treated PBMC cell culture supernatant 10%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TNF alpha concentration was determined to be 7326.31 pg/mL in PHA-M treated PBMC cell culture supernatant.
Sandwich ELISA - Human TNF alpha ELISA Kit (ab181421)

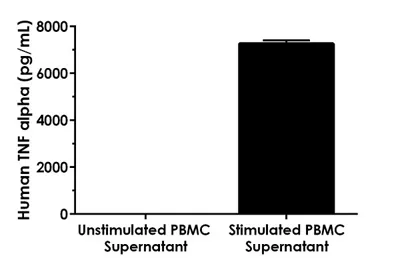

Interpolated concentrations of native TNF alpha PBMC cell culture supernatant samples.
PBMC cells were stimulated with 1.5% PHA-M or vehicle control in 10F RPMI and incubated for 46 hours. The concentrations of TNF alpha were measured in duplicate and interpolated from the TNF alpha standard curves. Undiluted samples are PHA-M stimulated PBMC cell culture supernatant 10% and unstimulated PBMC cell culture supernatant 10%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TNF alpha concentration was back calculated determined to be 7265.71 pg/mL in PHA-M stimulated PBMC cell culture supernatant and undetectable in the unstimulated PBMC control.
Sandwich ELISA - Human TNF alpha ELISA Kit (ab181421)

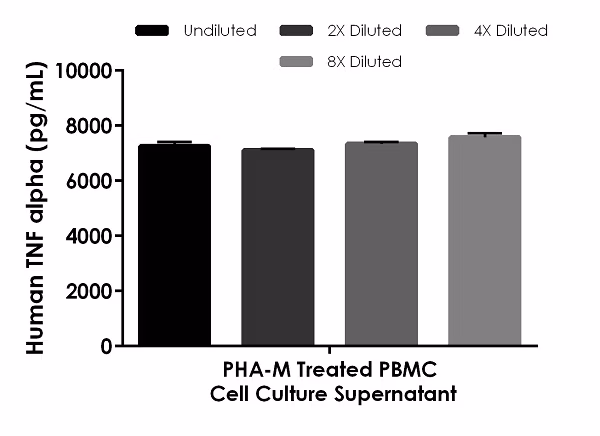

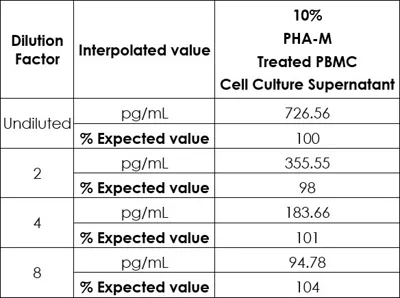

Linearity of dilution - native TNF alpha.
Native TNF alpha was measured in biological samples in a 2-fold dilution series. Sample dilutions are made in Sample Diluent NS.
Sandwich ELISA - Human TNF alpha ELISA Kit (ab181421)

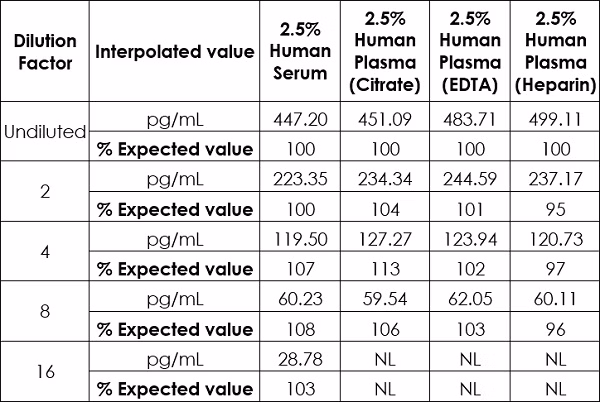

Linearity of dilution - recombinant TNF alpha.
Recombinant TNF alpha was spiked biological samples and diluted in a 2-fold dilution series in Sample Diluent NS. Twenty individual healthy human female/male donors were measured in duplicate for the presence of TNF alpha. All values were below the detectable range of the assay
NL – Non-Linear
