ELISA - GFP ELISA Kit (ab171581)

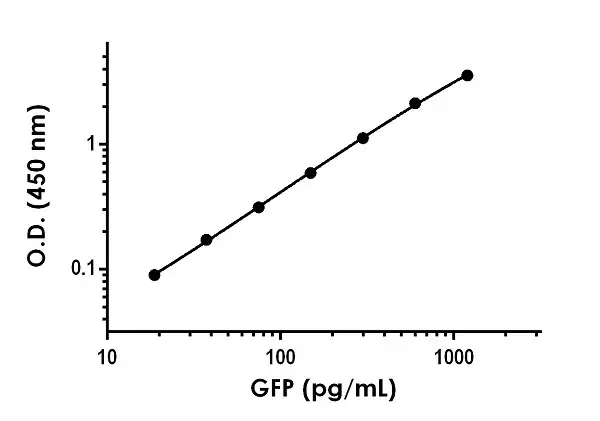

Example GFP standard curve.

Background-subtracted data values (mean +/- SD) are graphed.

GFP standard curve showing mean fluorescence intensity with standard deviation error bars.

Sandwich ELISA - GFP ELISA Kit (ab171581)

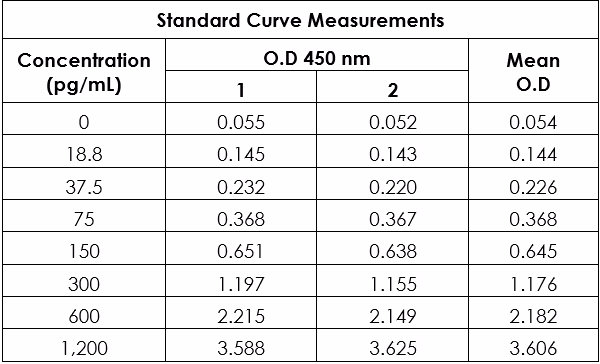

Example of raw data for GFP standard curve.

Raw data values are shown in the table

Raw data table for GFP standard curve

ELISA - GFP ELISA Kit (ab171581)

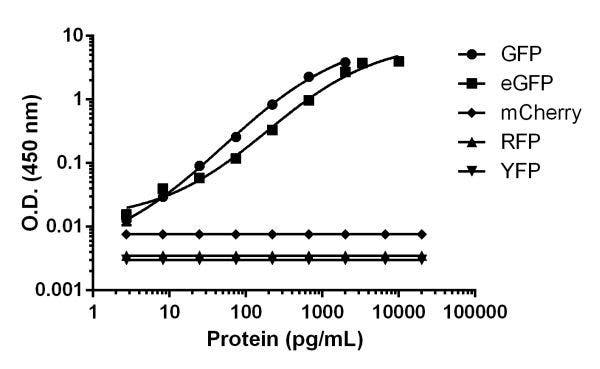

GFP cross reactivity data.

This kit recognizes both GFP and enhanced GFP (eGFP) in cell and tissue extracts. No reactivity with mCherry, RFP or YFP was observed.

GFP cross-reactivity data showing the kit's specificity for GFP and eGFP, with no reactivity to mCherry, RFP, or YFP.

ELISA - GFP ELISA Kit (ab171581)

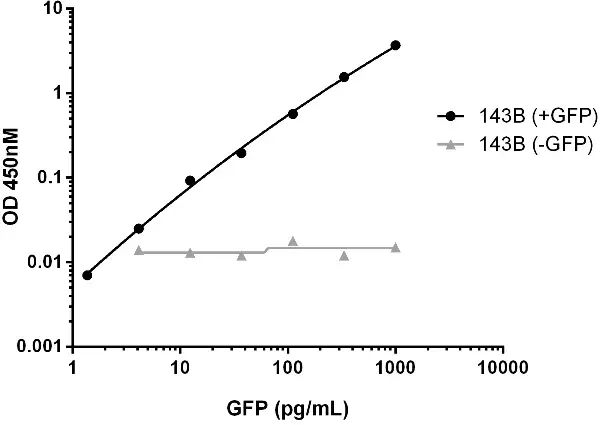

Titration of GFP spiked 143B cell lysate within the working range of the assay.

Background subtracted data from triplicate measurements are plotted.

Titration curve of GFP concentration in 143B cell lysate, showing background-corrected triplicate measurements.

Sandwich ELISA - GFP ELISA Kit (ab171581)

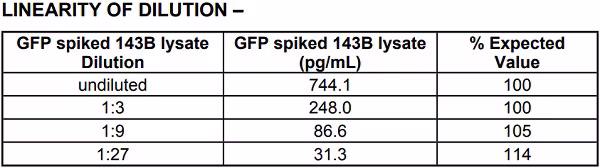

Linearity of dilution for spiked GFP.

GFP spiked 143B lysate was measured in 3-fold dilution series

Linear plot of GFP fluorescence intensity versus dilution factor for a 3-fold dilution series of 143B lysate spiked with GFP.

Sandwich ELISA - GFP ELISA Kit (ab171581)

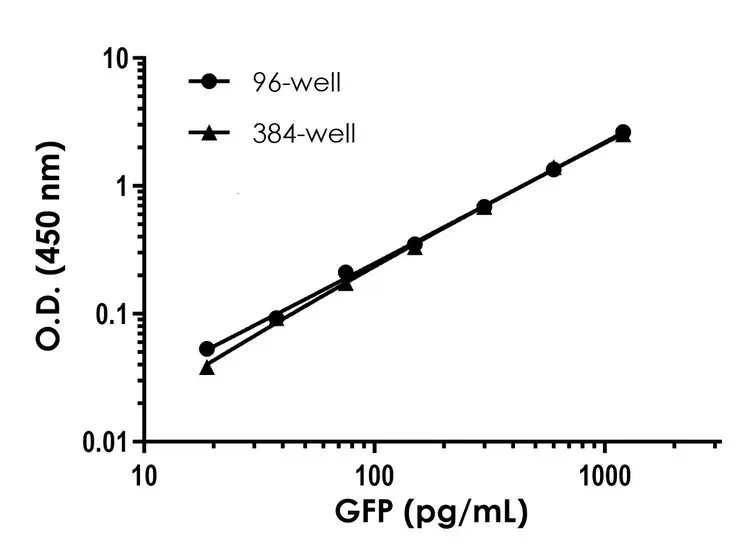

Example of GFP standard curve in 96-well and 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

GFP standard curve in 96-well and 384-well plates, showing background-subtracted data values (mean +/- SD).
