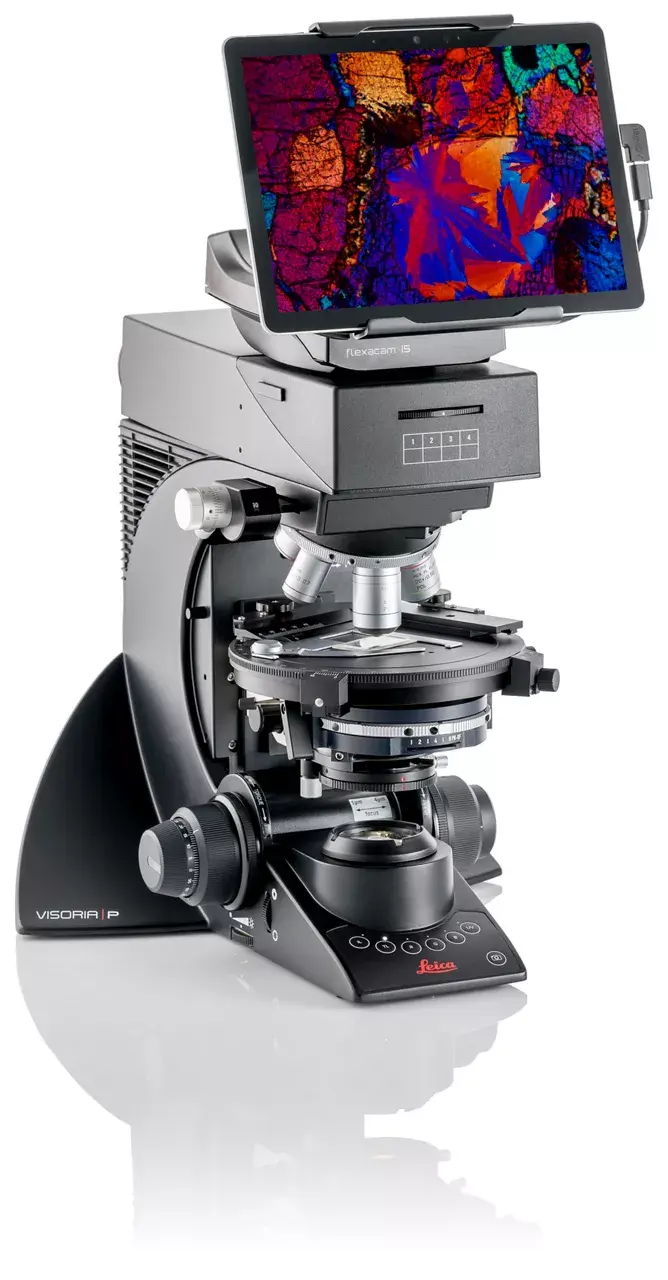

Visoria P Digital Polarization Microscope for Industrial Applications (Transparent samples only)
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria P polarization microscope uses polarized light to study the optical properties of materials and geological samples.
Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design.
This configuration includes the Visoria P digital polarization and is suited for industrial applications (transparent samples only)
- Visoria P Digital Polarization microscope with illumination management
- 10” screen / tablet with Enersight microscope software (Desktop)
- Flexacam i5 microscope camera, incl. power supply
- High-power white LED
- Contrast methods (transmitted light): Quantitative polarization, Brightfield
- Encoded nosepiece, 5x
- Objectives (N PLAN POL): 2.5x, 5x, 10x, 20x, 40x
- 360° rotatable polarization stage with verniers, 45° clickstop position and brake
- Object guide without point counting
- 360° analyzer, Polarizer, Whole-wave plate f. compensator slot
- 3-step focus drive with height-adjustable focus knobs
- Dust protection cover
- Quick start guide and user manual
- Efficiency through encoded functions
- More comfort with ergonomics
- Visualize sample details with the right contrast
- Powered by the Enersight software platform
| Contrasting Method(s) | Brightfield, Qualitative Polarization |
| Long Working Distance | Optional |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Single Camera |

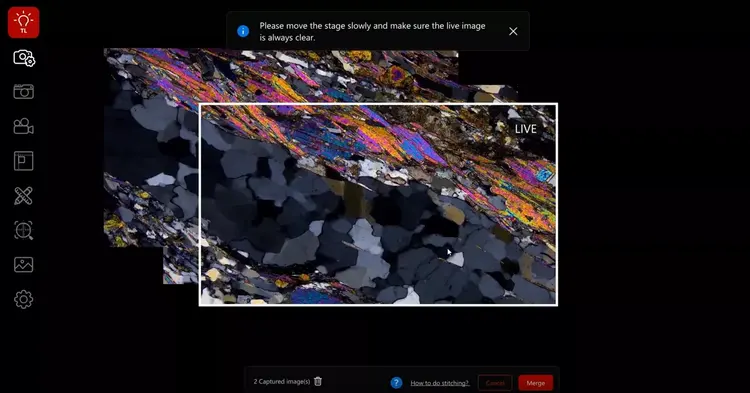

| Microscopy Software Available | 3D Visualization, Documentation, Measuring, Tile Stitching |
| Has Eyepiece | Yes |
| Microscope Type(s) | Upright Microscope, Light Microscope |
| Maximum Optical Magnification (x times) | 400 |
| Microscope Group | Light Microscope |
| Application(s) | Inspection |
Visoria P
11561615
1
QTY
Focus drive 3-step
11561605
1
QTY
Ground plate
11561609
1
QTY
Lamp housing LH113 LED
11504199
1
QTY
Focus knobs for Visoria
11561608
1
QTY
Pol rotating stage 45° with clamp
11551079
1
QTY
Object Guide without Point Counting
13613661
1
QTY
Analyzer360°, 30x5 with grey filter
11555080
1
QTY
Condenser achr.-apl. A 0.9 (P), CC
11501183
1
QTY
Polarizer L ICT/P
11555034
1
QTY
Whole-wave plate f. compensator slot
11553388
1
QTY
Dust cover DML/Visoria/3000 Fluo/Photo
11501074
1
QTY
Microscope Objective N PLAN EPI 5x/0,12 POL
11556075
1
QTY

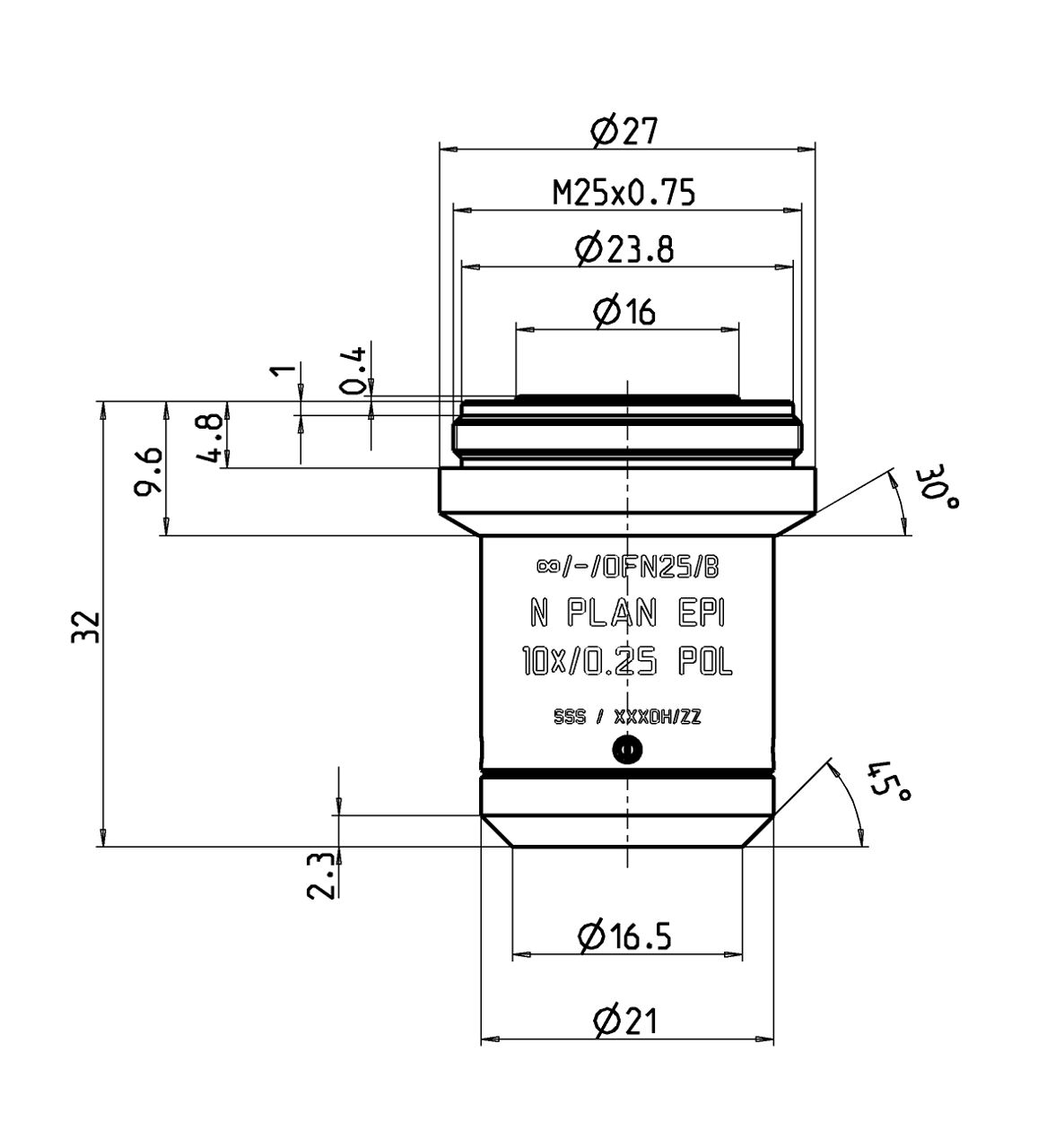

Microscope Objective N PLAN EPI 10x/0,25 POL
11556517
1
QTY

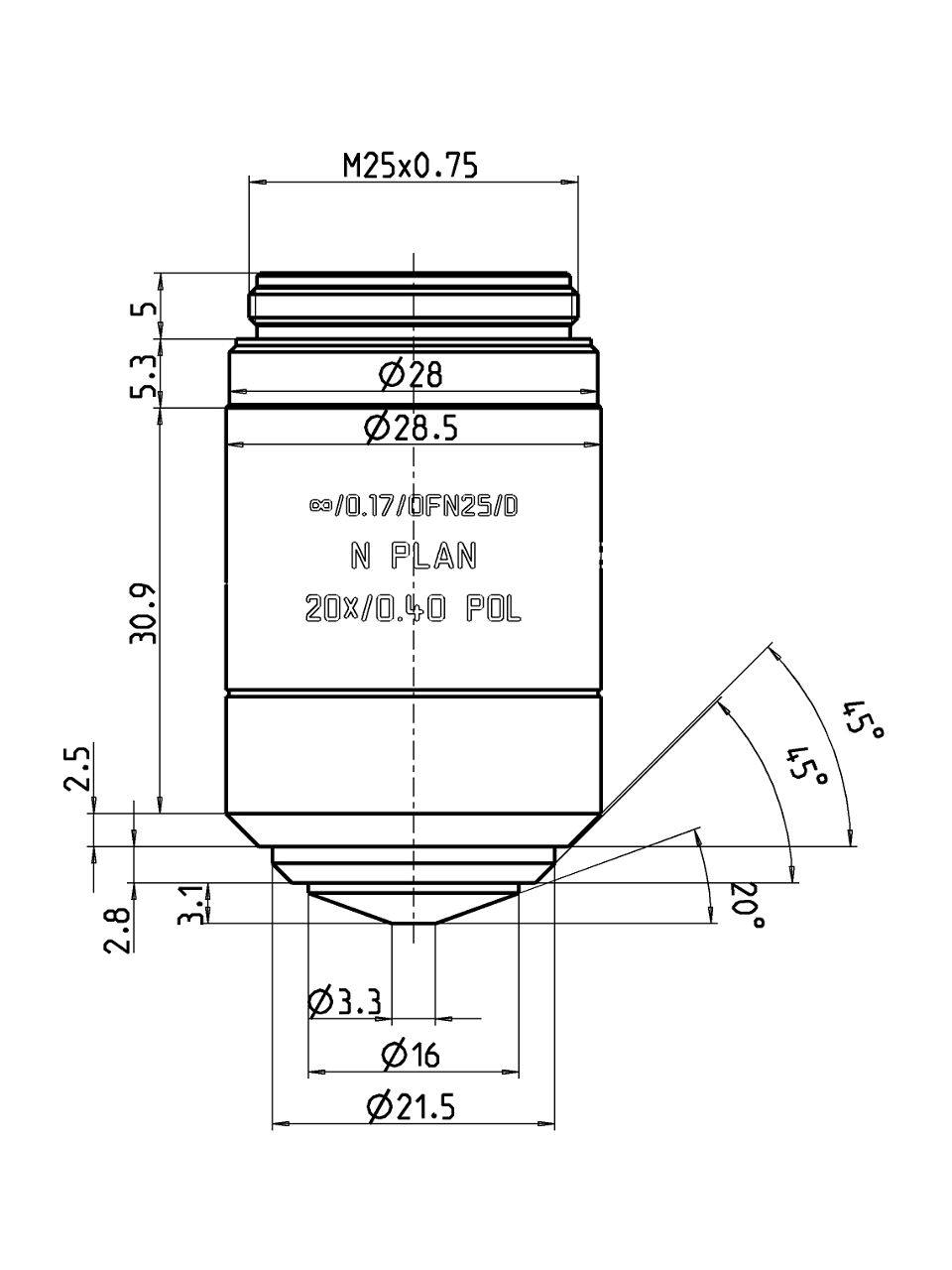

Microscope Objective N PLAN 20x/0,40 POL
11556083
1
QTY

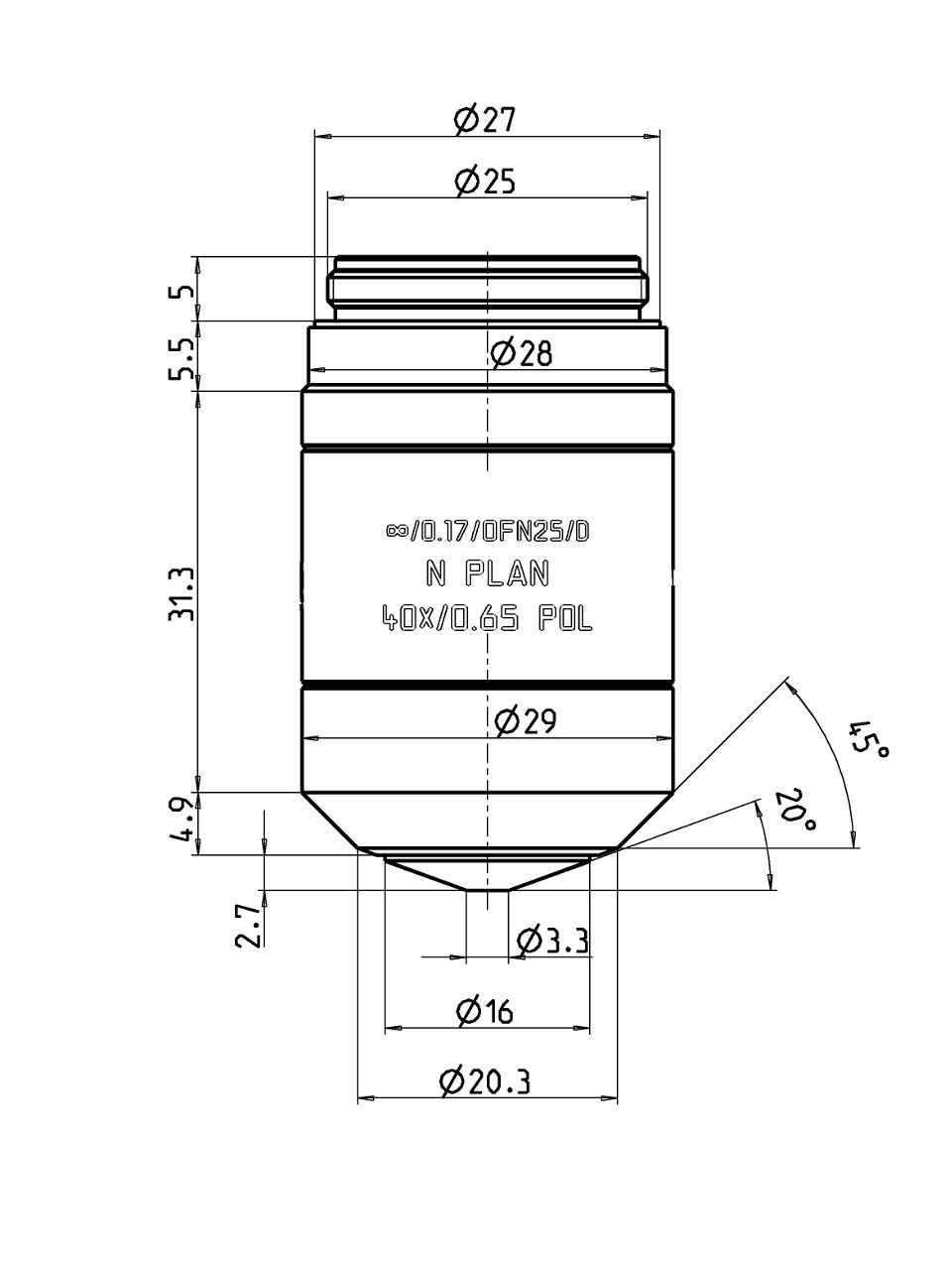

Microscope Objective N PLAN 40x/0,65 POL
11556084
1
QTY
Flexacam i5 (Compound)
12730537
1
QTY
Power supply for Flexacam i5 (Compound)
12730603
1
QTY
Surface Go Kit
11561617
1
QTY

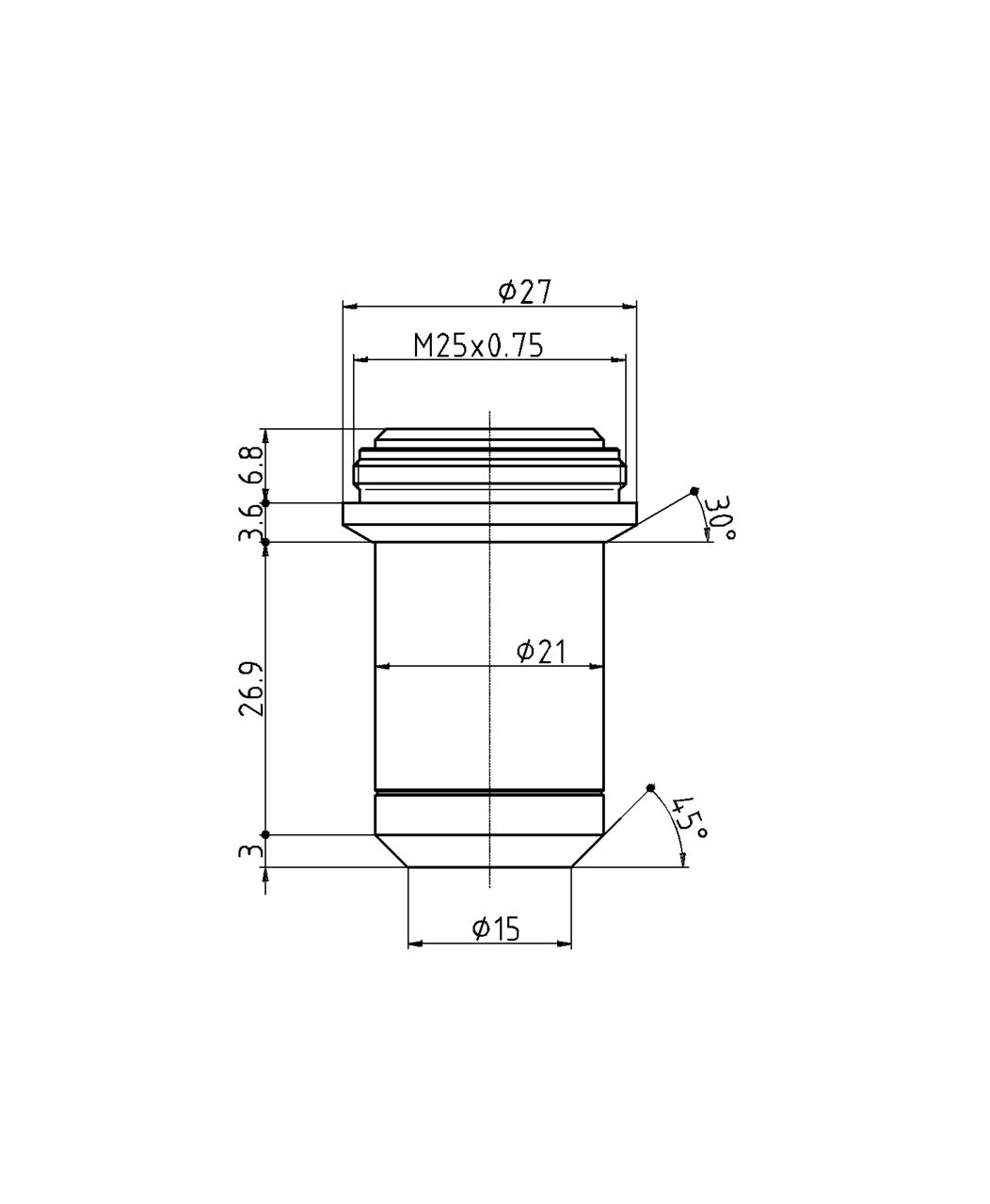

Microscope Objective N PLAN 2,5x/0,07 POL
11556036
1
QTY
