Visoria B Laboratory Microscope for Immunofluorescence
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories.
Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design.
This configuration includes the Visoria B laboratory microscope as well as the K3M microscope camera and is suited for Immunofluorescence applications.
- Visoria B Laboratory microscope (Research use only) with illumination management
- Trinocular phototube
- Two eyepieces (10x), field of view 22 mm
- K3M microscope camera, incl. c-mount 0.5x

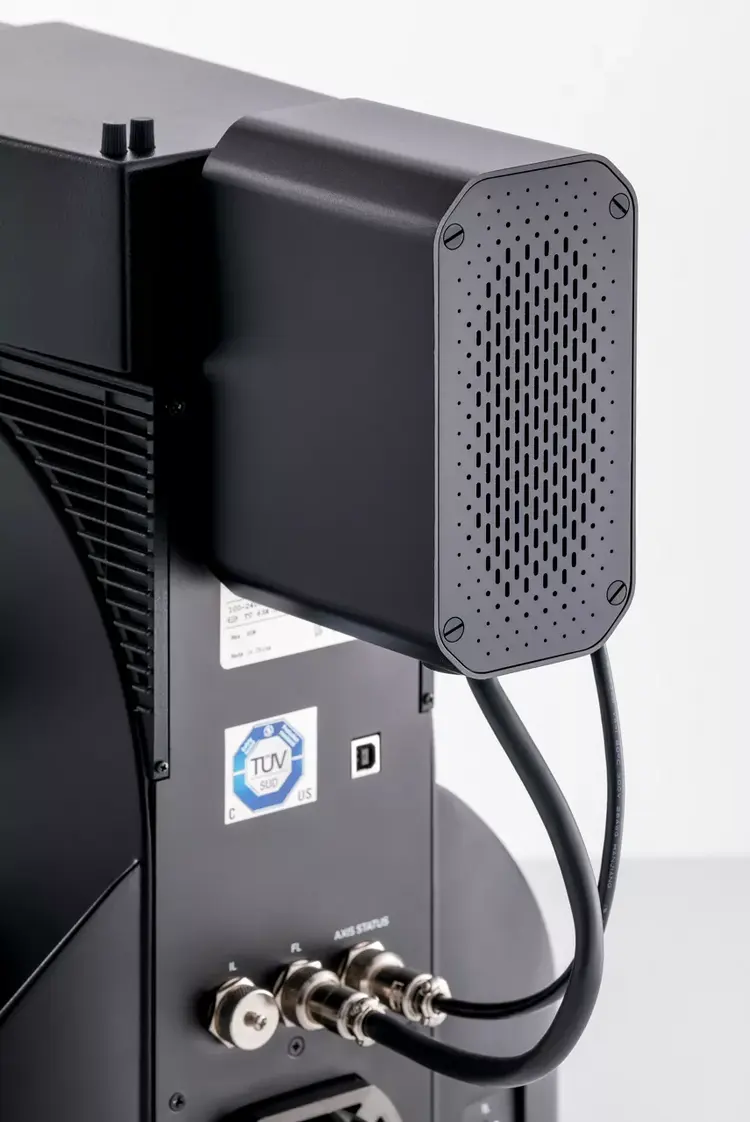

- High-power white LED and 4-channel LED light source
- Fluorescence axis, 5-position, with four filters (Y5, I3, N2.1, DAPI )
- Contrast methods: Brightfield, Fluorescence
- Encoded nosepiece, 6x
- Objectives (N PLAN): 5x, 10x, 20x, 40x, 50x, 100x
- ErgoStage with Ceramic Plate, with specimen holder
- 2-step focus drive with height-adjustable focus knobs

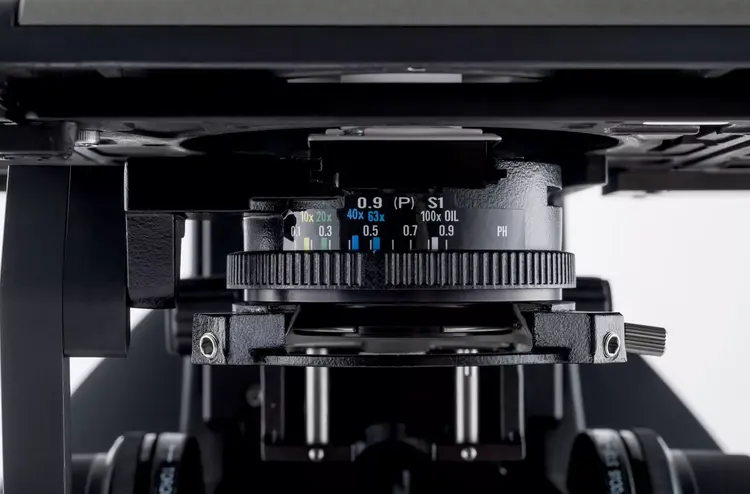

- Condenser A 0.9 (P)
- Immersion liquid, ISO 8036
- Dust protection cover
- Quick start guide and user manual
- Efficiency through encoded functions
- More comfort with ergonomics
- Visualize sample details with the right contrast
- Powered by the Enersight software platform
| Contrasting Method(s) | Brightfield, Fluorescence |
| Long Working Distance | Optional |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Optional |

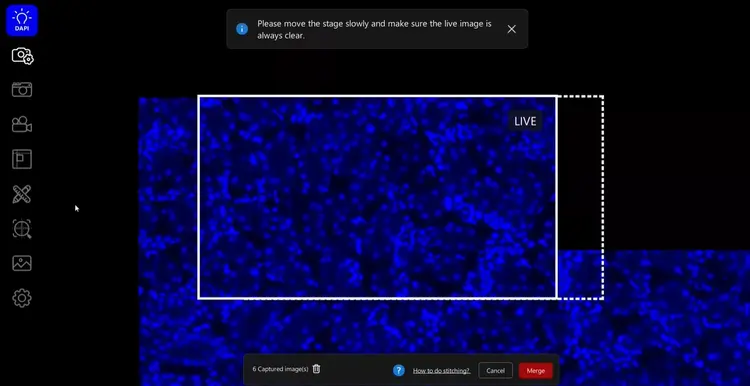

| Microscopy Software Available | Documentation, Measuring, Tile Stitching |
| Has Eyepiece | Yes |
| Microscope Type(s) | Upright Microscope, Light Microscope |
| Maximum Optical Magnification (x times) | 1000 |
| Microscope Group | Light Microscope |
| Application(s) | Anatomic Pathology;Cancer Research |
Focus drive 2-step
11561616
1
QTY
Focus knobs for Visoria
11561608
1
QTY
Condenser achr.-apl. A 0.9 (P), CC
11501183
1
QTY
Dust cover DML/Visoria/3000 Fluo/Photo
11501074
1
QTY
ErgoStage with Ceramic Plate f. DM2-3000
11888186
1
QTY
Slide holder one hand slide change
11505196
1
QTY
XY-stage control standard
11888153
1
QTY
Microscope Objective N PLAN 5x/0,12
11506302
1
QTY
Microscope Objective N PLAN 10x/0,25
11506405
1
QTY
Microscope Objective N PLAN 20x/0,40
11506096
1
QTY
Microscope Objective N PLAN 40x/0,75
11506314
1
QTY
C-Mount HC 0.50x
11541550
1
QTY
Lamp housing LH113 LED
11504199
1
QTY
Phototube HC L1T 4/5/7, trinocular
11561622
1
QTY
Eyepiece HC PLAN s 10x/22 Br. M
11507820
2
QTY
Object clamp for oil immersion
11505218
1
QTY
Microscope Objective N PLAN 100x/1,25 OIL
11506158
1
QTY
Type F Immersion liquid, ISO 8036
11513859
1
QTY
Leica K3M
11547113
1
QTY
Visoria B RUO
11561613
1
QTY
Fluo Axis 5 Pos.
11561619
1
QTY
4 channels LED light source
11561604
1
QTY
Filter System N2.1, size K
11513882
1
QTY
Filter System DAPI ET, size K
11504203
1
QTY
Filter System Y5 ET, size K
11504171
1
QTY
Filter Cube FITC LP, size k
11525491
1
QTY
