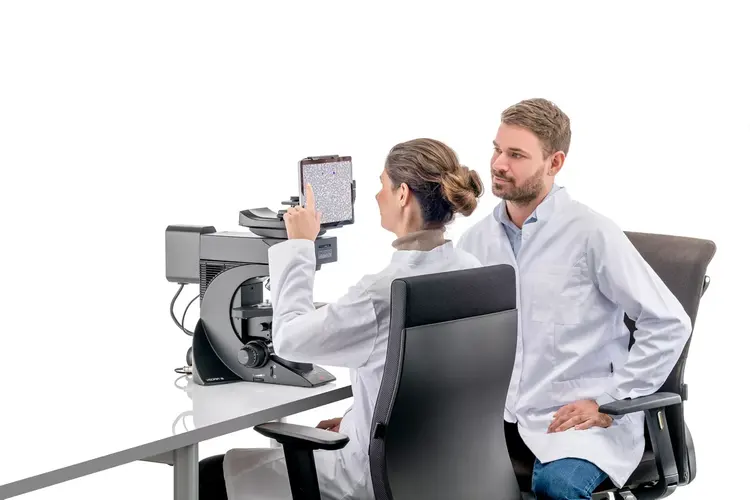

Visoria B Digital Laboratory Microscope for Histopathology or Cytopathology
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories.
Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design.

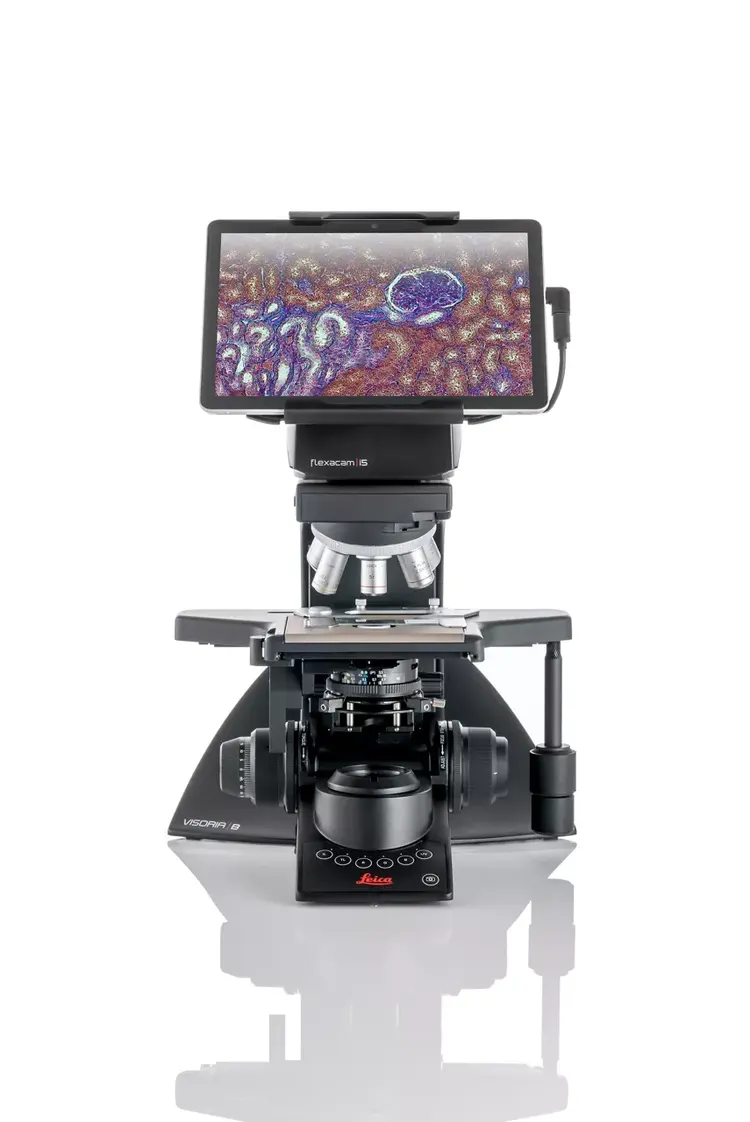

This configuration includes the Visoria B digital laboratory microscope and is suited for Histopathology or Cytopathology applications.
- Visoria B Digital Laboratory microscope (Global IVD) with illumination management
- 10” screen / tablet with Enersight microscope software (Desktop)

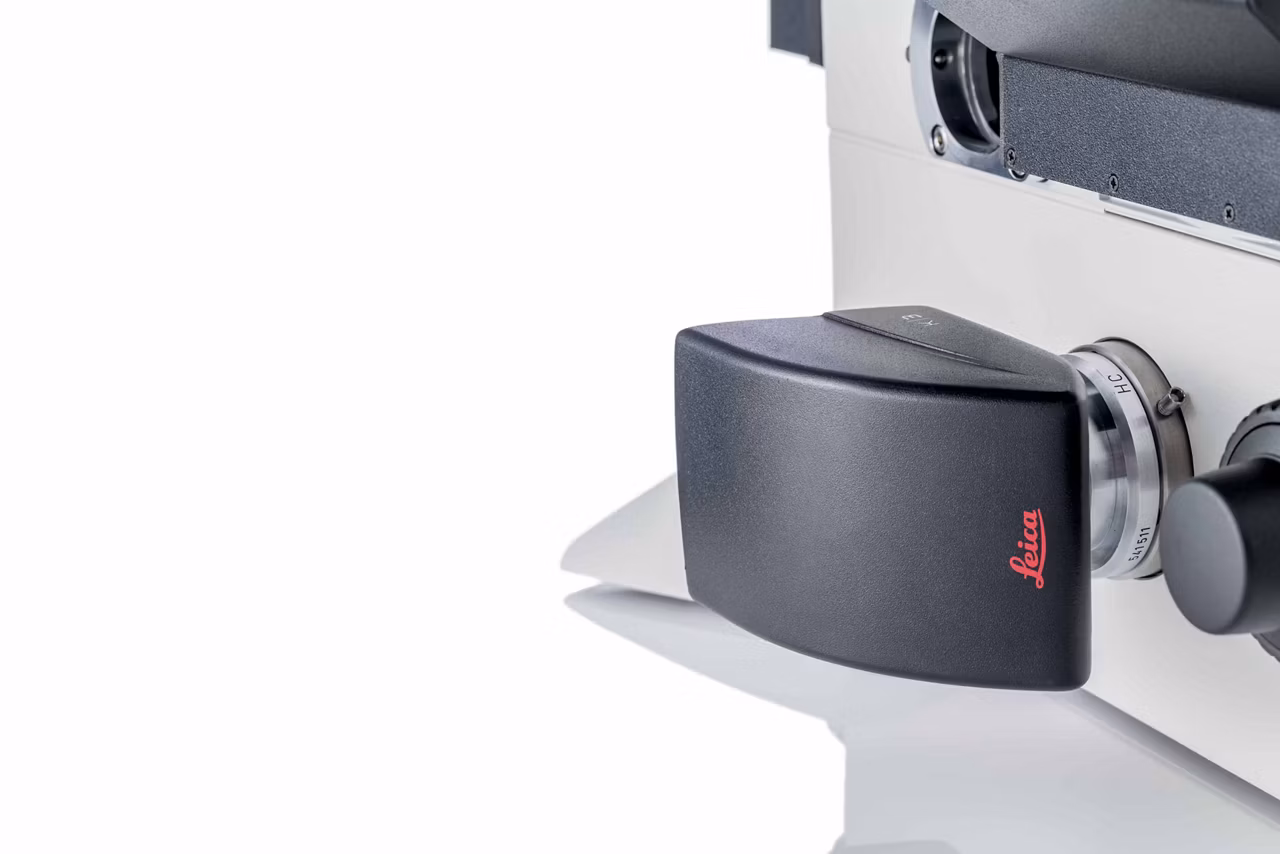

- Flexacam i5 microscope camera, incl. power supply
- High-power white LED
- Contrast methods: Brightfield

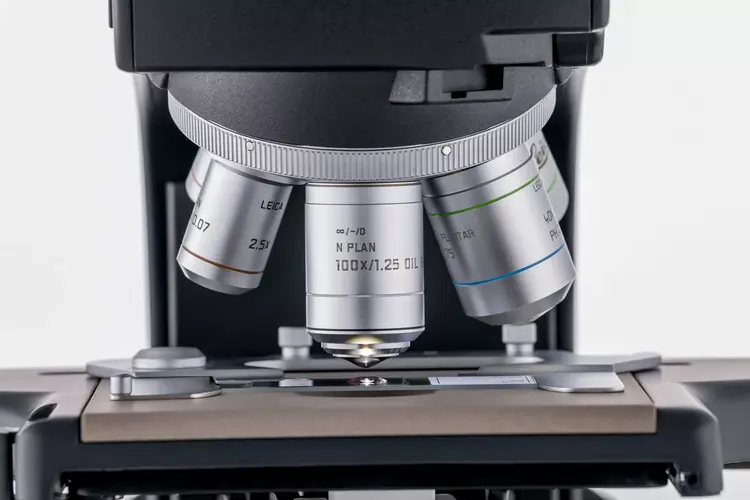

- Encoded nosepiece, 6x
- Objectives (N PLAN): 2.5x, 5x, 10x, 20x, 40x

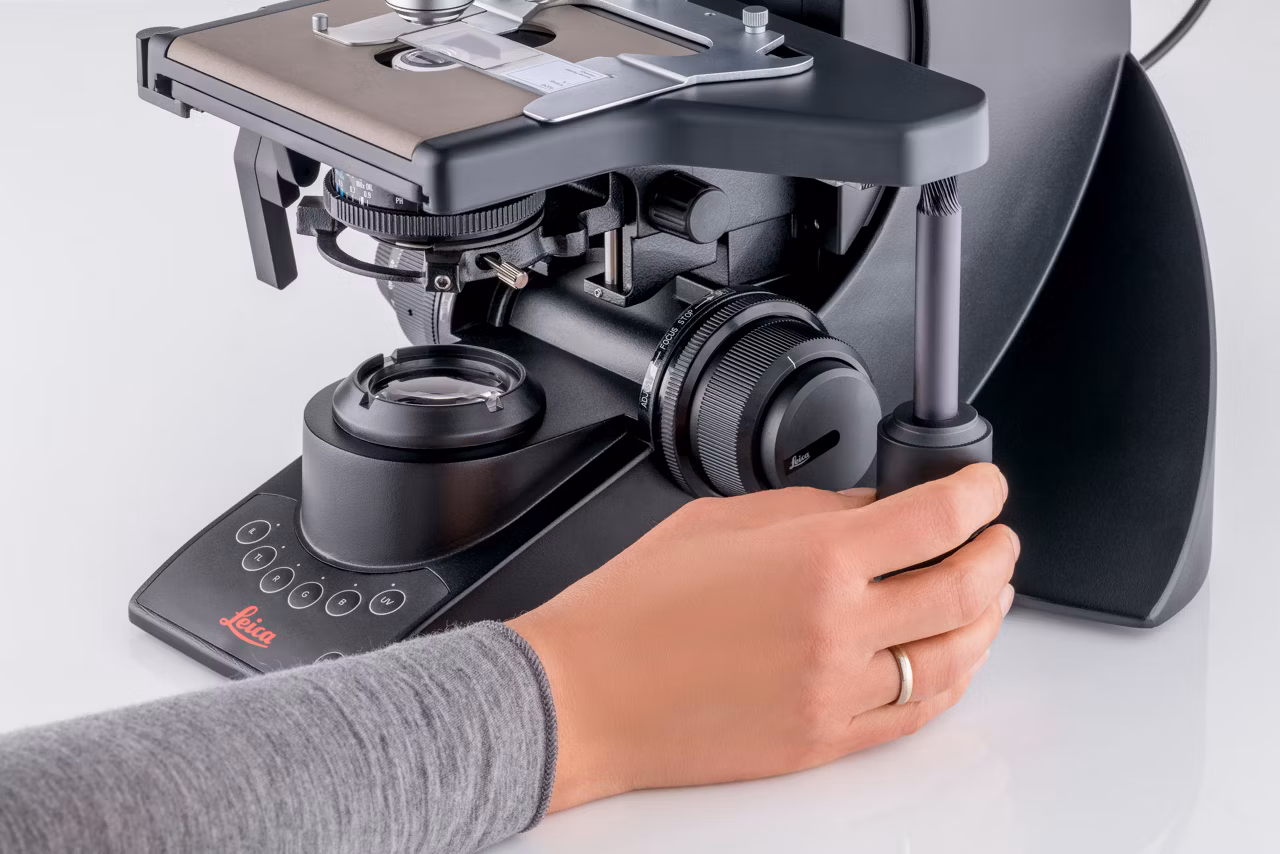

- ErgoStage with Ceramic Plate, with specimen holder
- 2-step focus drive with height-adjustable focus knobs

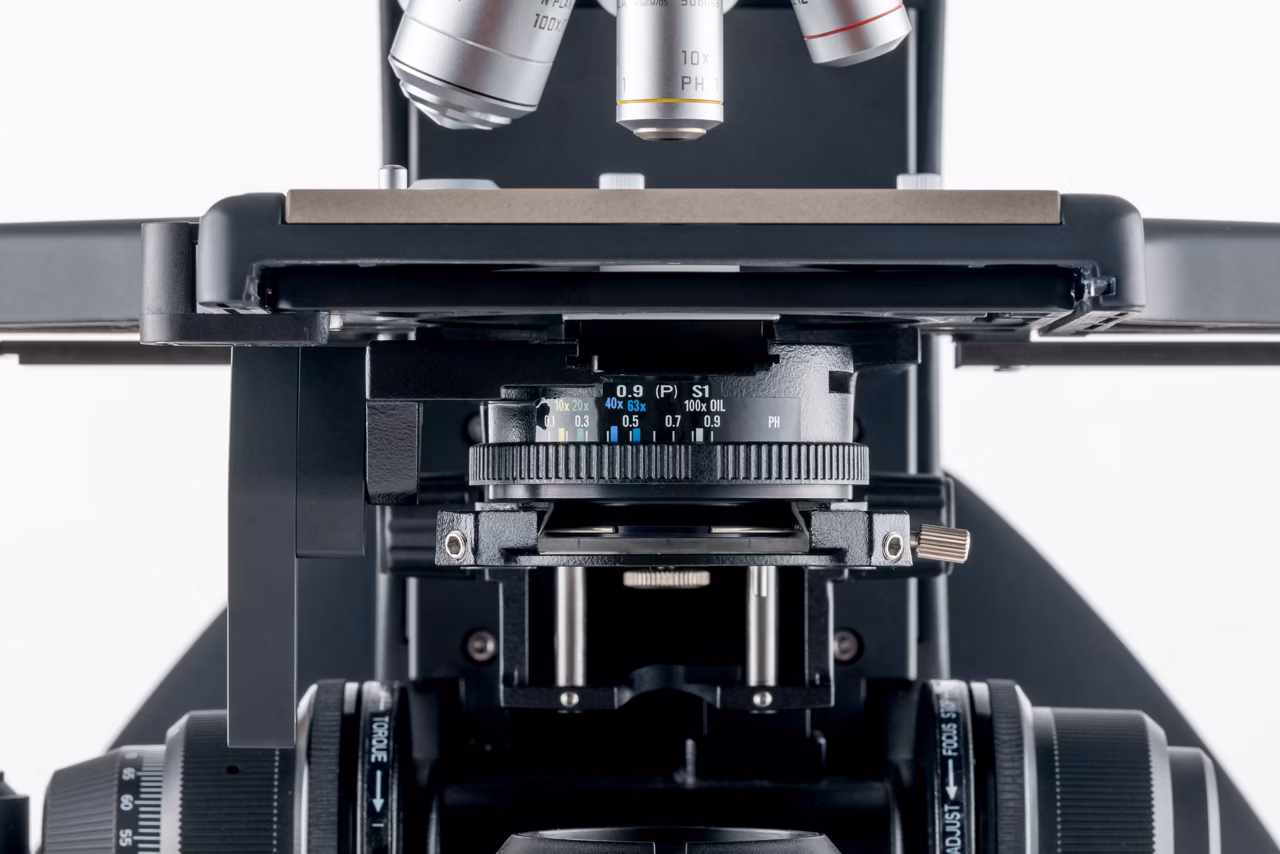

- Condenser A 0.9 (P)
- Dust protection cover
- Quick start guide and user manual

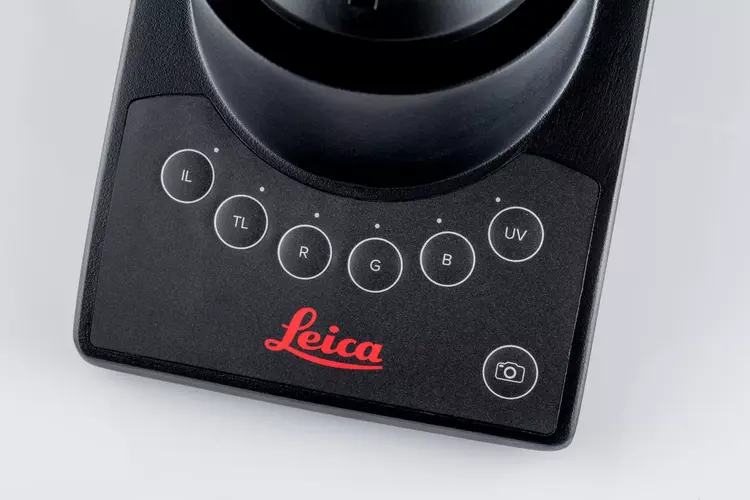

- Efficiency through encoded functions

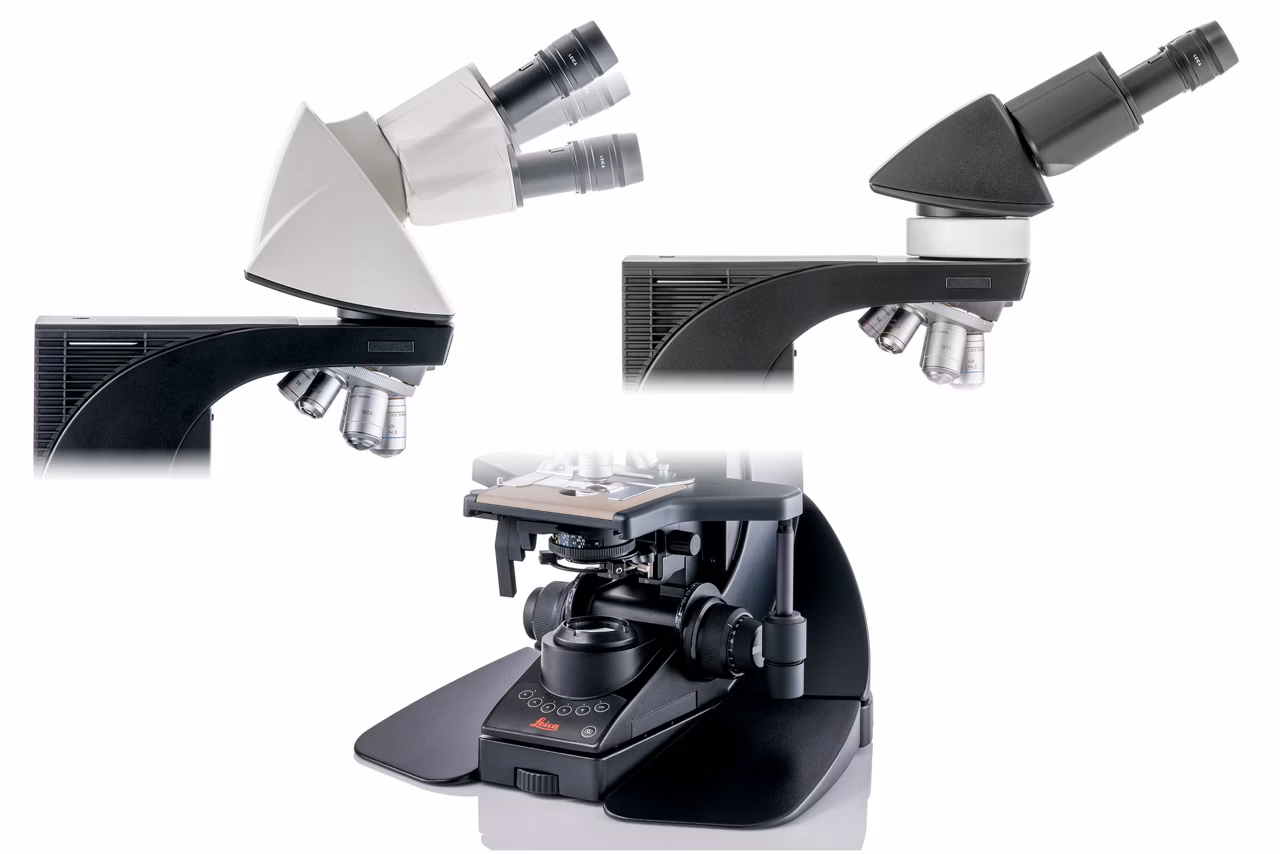

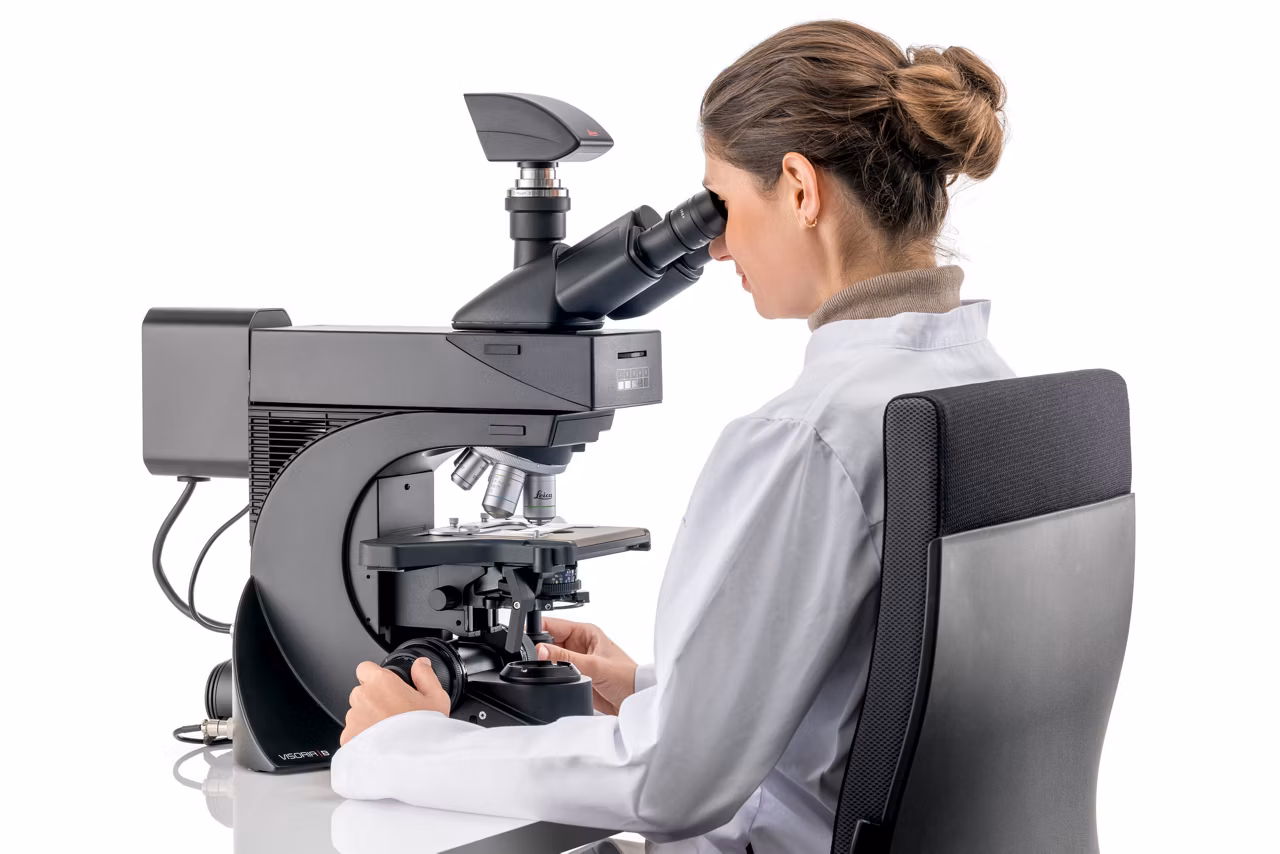

- More comfort with ergonomics

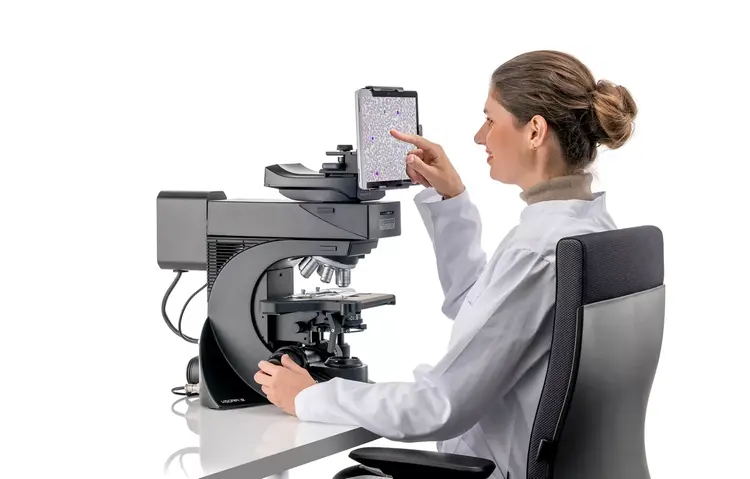

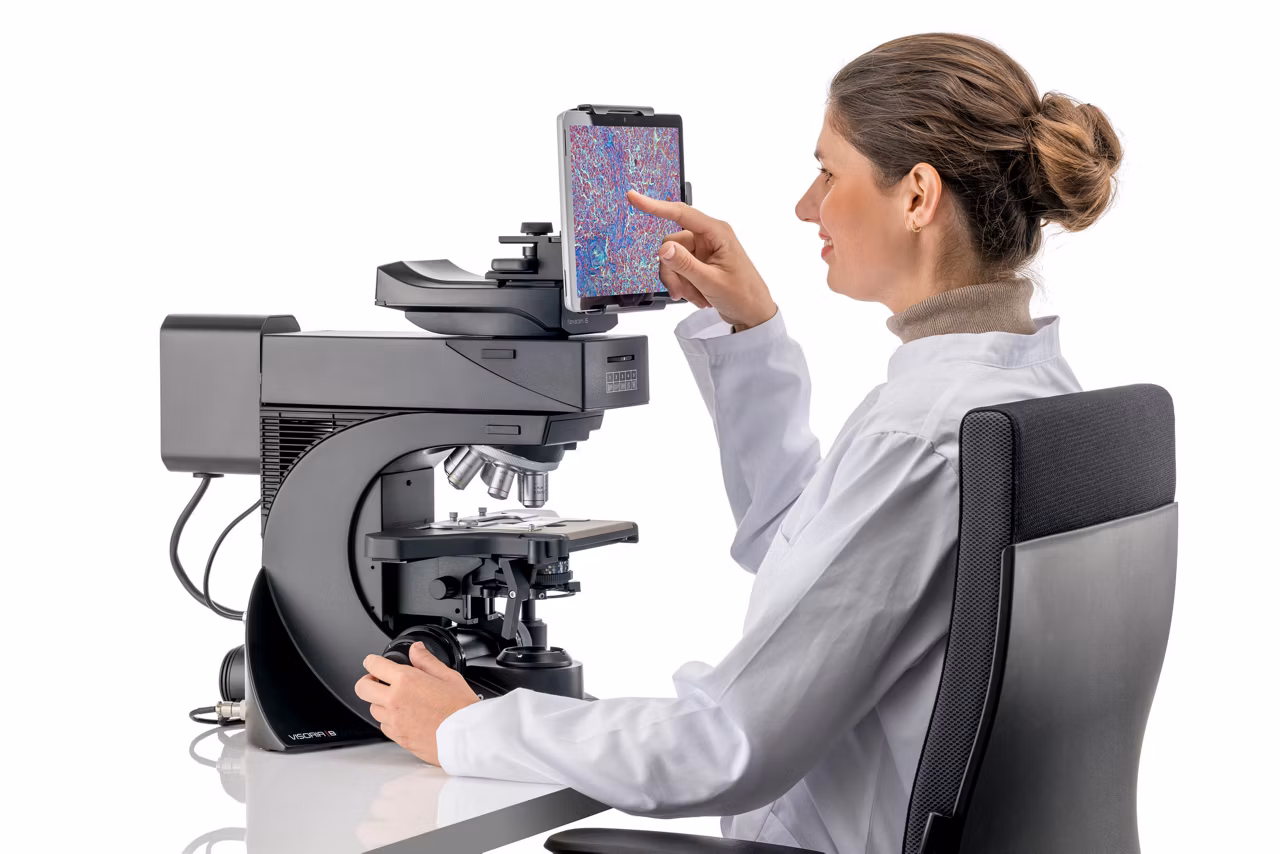

- Work without eyepieces by going digital
- Visualize sample details with the right contrast
- Powered by the Enersight software platform
| Contrasting Method(s) | Brightfield |
| Long Working Distance | Optional |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Single Camera |
| Microscopy Software Available | Documentation, Measuring, Tile Stitching |
| Has Eyepiece | No |
| Microscope Type(s) | Upright Microscope, Light Microscope, Digital Microscope |
| Has Resonance Scanner | No |
| Maximum Optical Magnification (x times) | 400 |
| Microscope Group | Light Microscope |
| Application(s) | Anatomic Pathology |
Visoria B IVD Global
11561611
1
QTY
Focus drive 2-step
11561616
1
QTY
Focus knobs for Visoria
11561608
1
QTY
Condenser achr.-apl. A 0.9 (P), CC
11501183
1
QTY
Dust cover DML/Visoria/3000 Fluo/Photo
11501074
1
QTY
ErgoStage with Ceramic Plate f. DM2-3000
11888186
1
QTY
Slide holder one hand slide change
11505196
1
QTY
XY-stage control standard
11888153
1
QTY
Microscope Objective N PLAN 2,5x/0,07
11506083
1
QTY
Microscope Objective N PLAN 5x/0,12
11506302
1
QTY
Microscope Objective N PLAN 10x/0,25
11506405
1
QTY
Microscope Objective N PLAN 20x/0,40
11506096
1
QTY
Microscope Objective N PLAN 40x/0,75
11506314
1
QTY
Lamp housing LH113 LED
11504199
1
QTY
Surface Go Kit
11561617
1
QTY
Flexacam i5 (Compound)
12730537
1
QTY
Power supply for Flexacam i5 (Compound)
12730603
1
QTY
