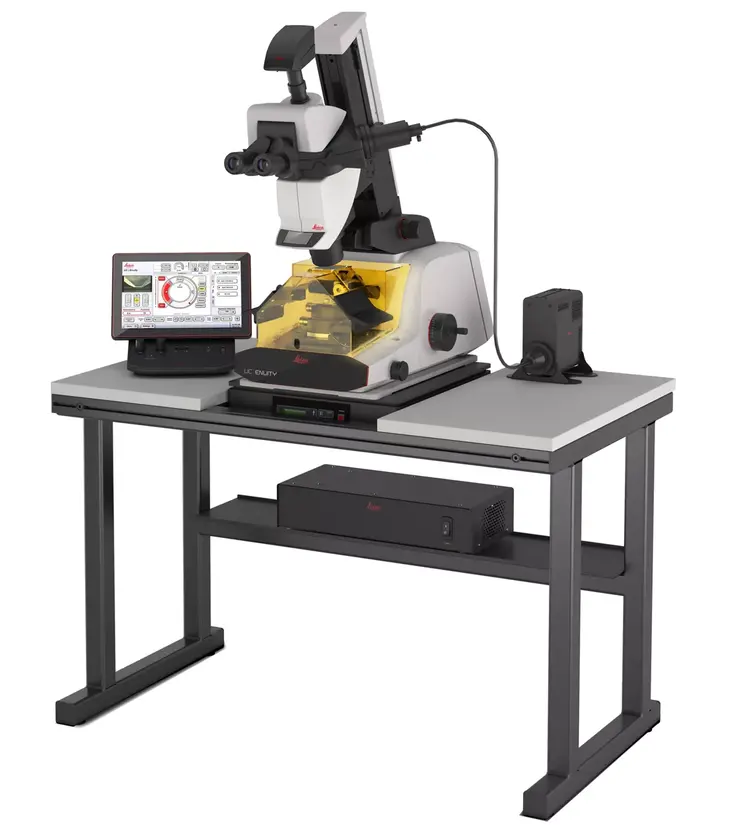

UC Enuity Advance Room Temperature

Specifications:

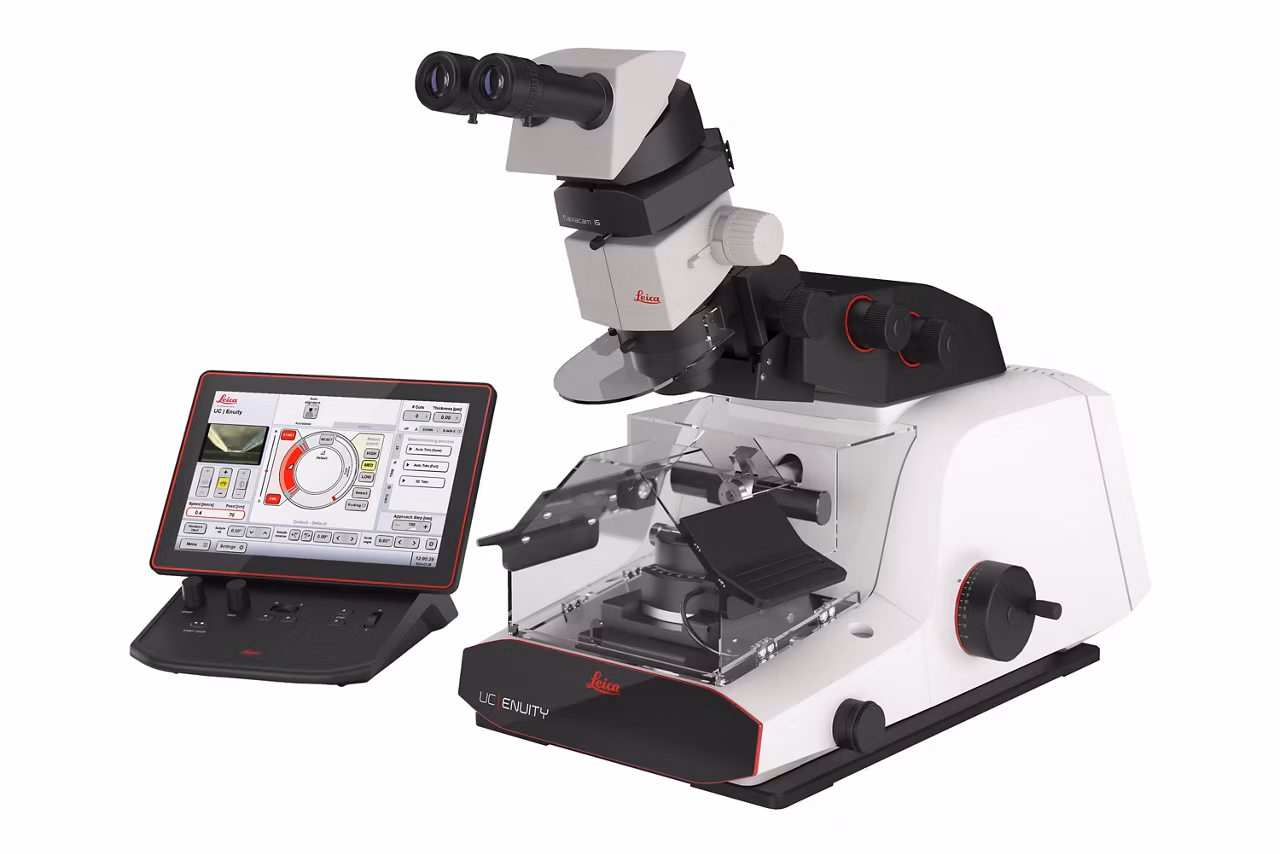

UC Enuity - Basic instrument M80; Consisting of: Base Unit with Manual Segment Arc and Knife Block, Control and Processing Unit, Software, Accessories.

Base Unit with Manual Segment Arc and Knife Block, Control and Processing Unit, Software, Accessories.

Base Unit:

Housing and rigid mechanics, built-in antivibration system, segment arm, drive unit, control electronic, stable microscope carrier for sectioning and observation.

Segment Arm movement:

• Cutting transmission: vibration decoupled gravity stroke
• Cutting window setting: 15 mm total range
• Cutting speed control: from 0.04 - 100 mm/s

Specimen advance control:

• 0 to 100 in steps of 1 nm
• 100 to 2500 nm in steps of 10 nm
• Return speeds: 10, 30 and 50 mm/s
• Total specimen advance: 200 µm

Knife Stage dual automatic advance system:

• 10 mm knife N-S movement range (motorized)
• 25 mm E-W movement range
• E-W movement control: continuous with wheel or 100 µm distance with step button
• N-S movement control: continuous with wheel or adjustable (0.1-15 µm) with step button

Knife Stage dual automatic advance system:

• 10 mm knife N-S movement range (motorized)
• 25 mm E-W movement range
• E-W movement control: continuous with wheel or 100 µm distance with step button
• N-S movement control: continuous with wheel or adjustable (0.1-15 µm) with step button
• Specimen advance control with knife stage
• 100 nm to 2500 in steps on 100 nm
• 2500 to 50000 nm in steps of 500 nm

Manual Segment arc including:

• Self locking precision drives with ± 22° eucentric sample tilt
• 360° rotation of specimen with self locking drive

Manual Knife block including:

• 360° rotatable, dual sided self locking precision drive
• ±30° graduation, clearance angle adjustment with 1° scale from -2° to over 14°
• Knife holder for 6 – 12 mm glass and diamond knives

Carrier for Stereomicroscope M80:

• Eucentric movement of the stereo carrier: + 5°/ - 8
• Defined knife positions of stereo carrier: for glass and diamond knifes
• 100 mm N-S movement of stereo carrier

Illumination:

• Top-, Bottom- and Transillumination with controllable brightness for specimen and knife area observation.

Compatible with UC Enuity Cryochamber for cryosectioning.

Remote care compatible system with real time monitoring of Service relevant data.

Control and Processing Unit:

Control Unit including:

• 12.1” inch capacitive touchpanel with interactive and configurable screen and optional camera integration (Flexacam i5)
• Ergonomic design including intuitive push button control of key paramenters for sectioning
• Swipe function for task specific display configuration
• Infrared mouse
• 3 x USB 3.0 connections.

Processing Unit including:

• Windows PC
• Operating system: Windows 10
• Power supplies for Base Unit and Control Unit
• 2 x LAN connections for Remote Access/Remote Care.;

Software:

• Configurable/task specific/interactive user interface with swipe function
• Speed and Feed indicator with 5 memory lane positions
• Advance and Advance Reset control
• Total advance end position indicator with acoustic warning 20 µm before the end of the total advance
• Indicator of Knife Stage and Specimen Arm N - S position
• Step button control of stage N - S
• Up Counter for Feed Advance in nm and number of sections
• Customizable Specimen arm/knife block feed
• Supports sectioning with foot switch (prerequ. 16654925)
• Supports sectioning with antistatic device (prerequ.Crion 16705857)
• Remote Access: via Windows Remote Desktop.
