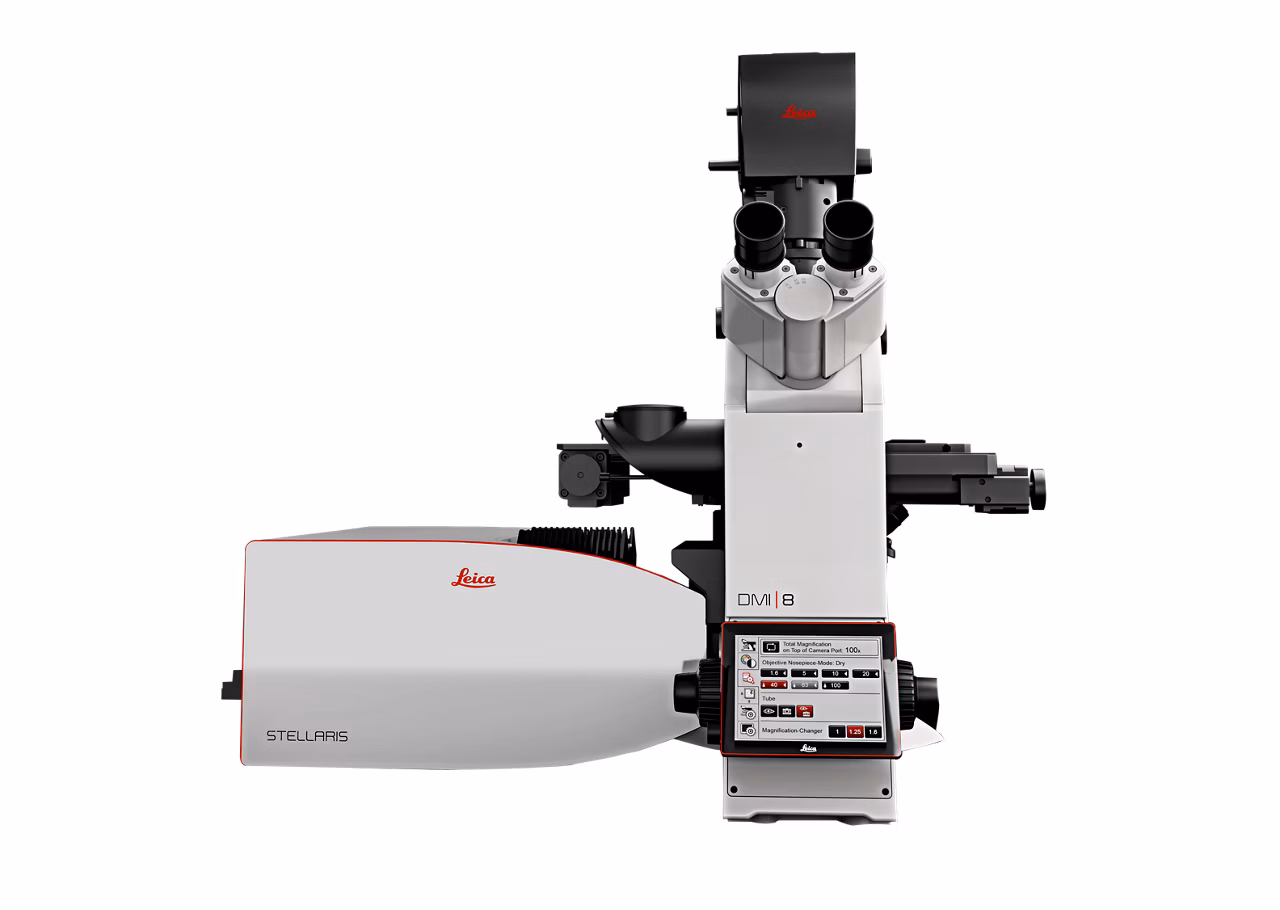

STELLARIS Personal Confocal Microscope

Personal Confocal Microscope

STELLARIS is a true confocal point scanning system with beam splitters and has Spectral Detection, Photon Counting Detectors, and Confocal Super Resolution!

STELLARIS confocal microscope also offers the following modalities, including Autonomous Microscopy, Digital Light Sheet, Dynamic Signal Enhancement, and more. 

Includes: A fully equipped confocal microscope with 3 Power HyD S detectors, 3 VIS Laser Lines, 405 nm Laser, Motorized X-Y Stage, and Confocal LIGHTNING Super Resolution package - Request a Quote Today!*.

An array of key features that facilitates imaging:

3 VIS Laser Lines and a 405 nm Laser
3 Photon Counting Detectors
Motorized X-Y Stage
Confocal LIGHTNING Super Resolution package
Upgradable to additional detectors (up to a total of 5) or additional lasers etc. in the future

Specifications:

Prism based spectral detection to every detector with 99% light efficiency across the light spectrum
Laser Set: 405nm, 488nm, 561nm, 638nm
High resolution FOV galvo scanner
High light transmission scan optics
3 Power HyD S detectors with full control of the spectral range of each detector
Lightning Super Resolution to every detector
With Bright Field detector
Objective Lens set: 10X APO, 20X APO, 63X APO Oil
CUDA Workstation, with flat monitor
PC Table
LAS X Software
Lightning Super Resolution (120 nm XY and 200 nm Z)
Automatic Dye Separation

Power to see more: Imagine the power to observe finer details in every sample, capture the faintest signals, gather more precise data across the spectrum and push your spatial discoveries with high multiplexing. Productivity to do more: Consider the enhanced productivity that comes with simplified setup and navigation, allowing you to acquire images from complex samples with just a few clicks and focus on data that matters with Autonomous Microscopy Powered by Aivia

Instrumentation
Contrasting Method(s)	Brightfield, Fluorescence
Microscope Stage Type(s)	Motorized
Microscope Camera Option(s)	Optional
Has Eyepiece	Yes
Microscope Type(s)	Confocal Microscope, Light Microscope
Has Resonance Scanner	Optional
Microscope Environmental Control	Stage Top

Search Facet
Microscope Group	Confocal Microscope
Application(s)	Cancer Research;Cell Biology;Live Cell Imaging;Virology

LAS X STELLARIS Control Software

158203200

QTY

Microscope Objective HC PL APO 20x/0.75 CS2

15506517

QTY

Type F Immersion liquid, ISO 8036

15513859

QTY

XY advanced board for scanning stage

15525226

QTY

Smart Move I²C

15525232

QTY

Filter Cube DAPI LP

15525301

QTY

Filter Cube FITC LP

15525302

QTY

Filter Cube RHOD LP

15525303

QTY

Microscope Objective HC PL APO 63x/1.40 OIL CS2

15506350

QTY

Laser 561nm (Green)

158202114

QTY

Workstation

158203110

QTY

Transmission axis

155933666

QTY

Base Plate DMi8

158000640

QTY

Air Compressor IR opt. table act. 110V

158002406

QTY

Optical Table 750 x 900 actively damped

158002407

QTY

Bino Tube

155933660

QTY

Scanning stage inv. universal

158004141

QTY

BF detector for DMI.

158004201

QTY

Control panel with LCDs

158004752

QTY

Scan optics HIVISR DMi8

158101121

QTY

FOV Scanner STELLARIS 5

158101130

QTY

Service Installation

9I_LL_STELLARIS_B

QTY

High brilliance monitor

158003150

QTY

SP Light Trap

158201310

QTY

Laser 488nm (Blue)

158202112

QTY

Laser Port 405

158101200

QTY

Laser 638nm (Rot)

158202115

QTY

Laser 405 DMOD

158202140

QTY

Univ.hold.frame K:0311.200

15600234

QTY

LAS X Lightning Expert

158203204

QTY

LAS X Dye Finder

158203206

QTY

Closed Loop Focus

158204201

QTY

LIAchroics RGB

158209433

QTY

Microscope Objective HC PL APO 10x/0.40 CS2

15506424

QTY

Confocal Training Class B

9T-CLSM-APP_CLASSB

QTY

DMi8 CS

155933667

QTY

Power HyD S SP Core Unit Pos 3

158301313

QTY

Power HyD S SP pos 2

158301312

QTY

STELLARIS STED DMi8 Adapter

158301141

QTY

pE 300 white MB

158200681

QTY

Power HyD S SP pos 4

158301314

QTY

STELLARIS LIAchroic

158401101

QTY

Computer table small

158204710

QTY
