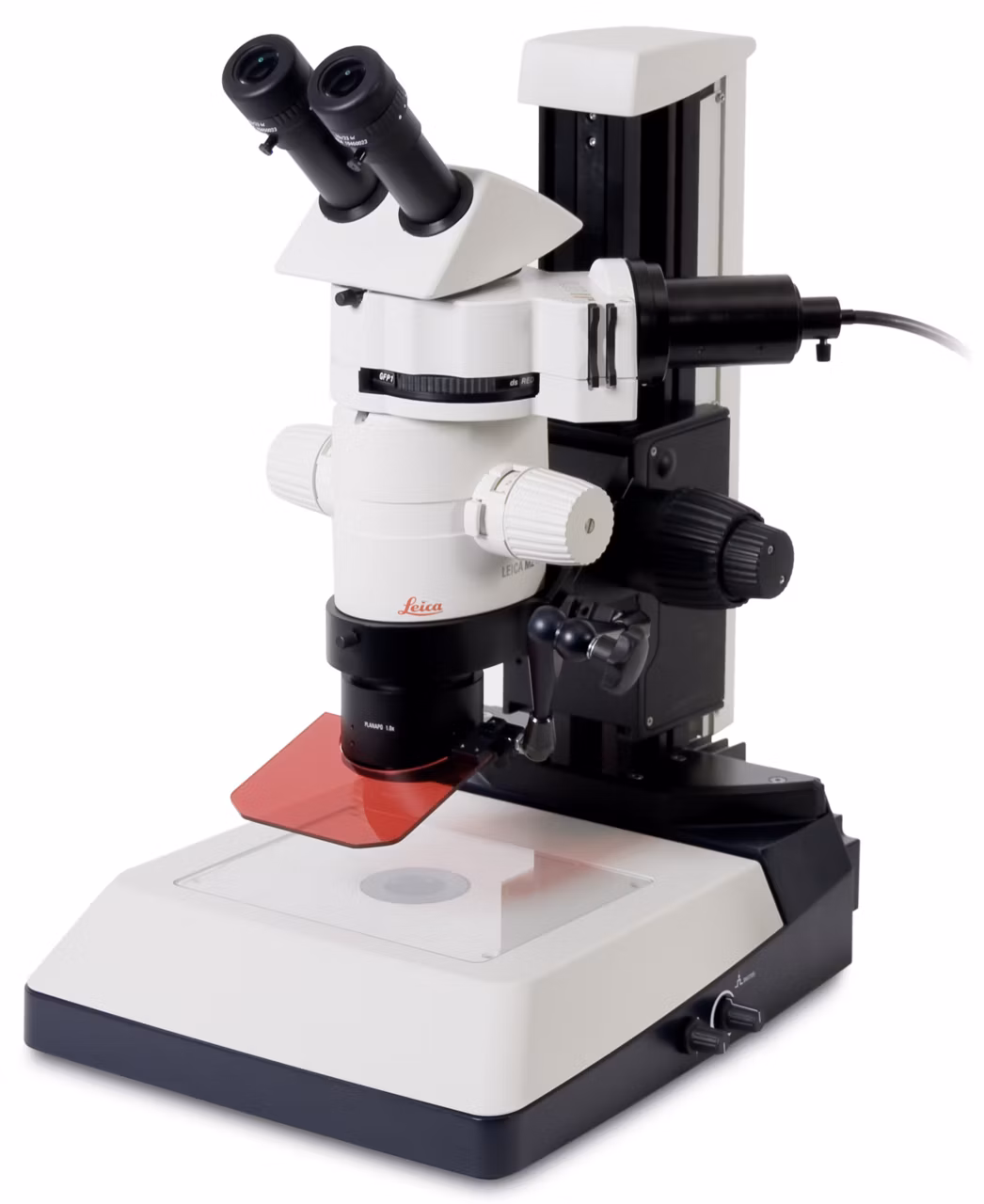

MZ10F for Fluorescence Sorting

The MZ10-F stereo microscope is a cutting-edge instrument designed for precision and clarity in microscopic observation. With its advanced optics and ergonomic design, this microscope is particularly well-suited for cell sorting applications. Delivering exceptional image quality and versatility, the MZ10-F enhances the efficiency and accuracy of cell sorting processes, making it an indispensable tool for researchers and professionals in the field of life sciences.

Specifications:

Magnification range: 8x-80x (1.0x objective, 10x eyepieces)
Click stop zoom settings
Triple Beam TM: Separate illumination beam path for fluorescence
Four position fluorescence filter turret
Objective thread M65

10:1 zoom range with high numerical aperture of 0.125 for excellent representation of small structures TripleBeam™, Leica’s patented separate beam path for extremely intense fluorescence illumination FLUOIII™, Leica’s patented, 4-position, rapid change filter system Wide range of standard filters and availability of custom filters for almost any fluorescence technique Comprehensive user protection against UV radiation Innovative contrast possibilities with Leica’s high-performance transmitted light bases

Instrumentation
Microscope Camera Option(s)	Optional
Microscopy Software Available	3D Visualization, Multichannel Acquisition
Has Eyepiece	Yes
Microscope Type(s)	Stereo Microscope, Macroscope
Has Resonance Scanner	No
Microscope Environmental Control	None
Maximum Field of View (X-Axis) (Metric mm)	28.8 mm
Maximum Field of View (Y-Axis) (Metric mm)	28.8 mm
Maximum Optical Magnification (x times)	80

Search Facet
Microscope Group	Light Microscope
Application(s)	Cell Biology;Cell Culture

Leica MZ10 F optics carrier

10450103

QTY

Eyepiece 10x/23B, adj., eyeglasses

10447137

QTY

Focus drive coarse/fine 420mm M-series

10450504

QTY

Microscope carrier for MZ-Series

10450104

QTY

Dust cover (40 x 35 x 75 cm), antistatic

10450287

QTY

Power cable, 2 m, USA

10445661

QTY

TL3000 Ergo

10450690

QTY

ST Adapter column on TL Bases

10450242

QTY

Microscope Objective HC PL APO 1.0x M-series

10450028

QTY

Filter set ET GFP - MZ10F

10450588

QTY

Leica LED5000 SLI

10450548

QTY

Clamp-combi light guide - highend M-ser

10450205

QTY

Coupling for fluid light guide, EL6000

10447399

QTY

pE 300 white MB

11504264

QTY

Inclined binocular tube 45° M-Series

10450252

QTY

Fluid light guide Ø3x2000mm / series 380

11504269

QTY
