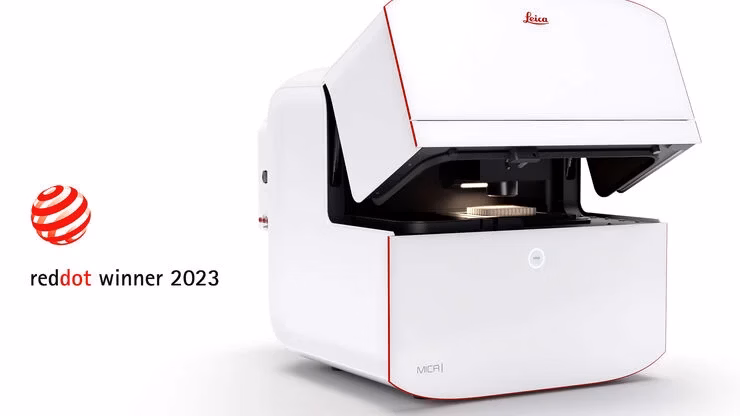

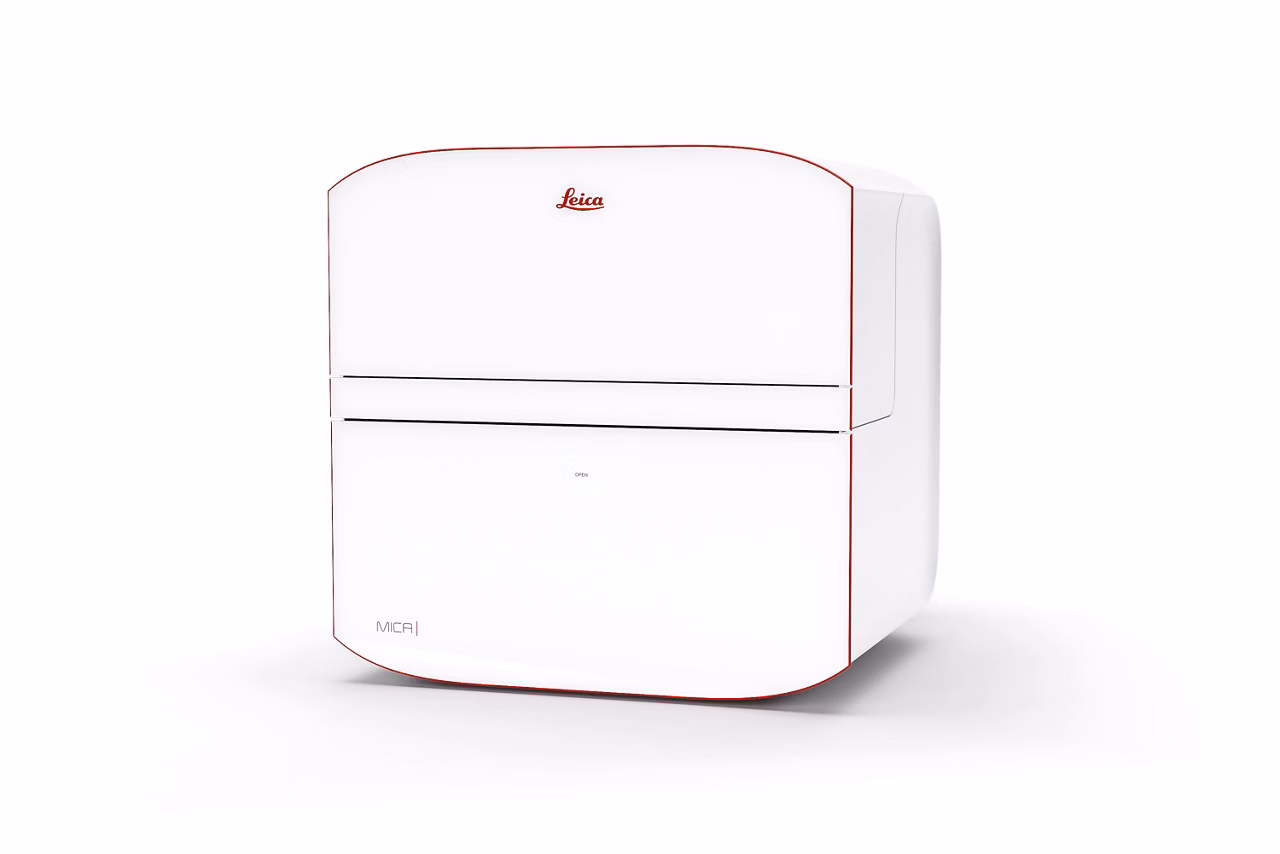

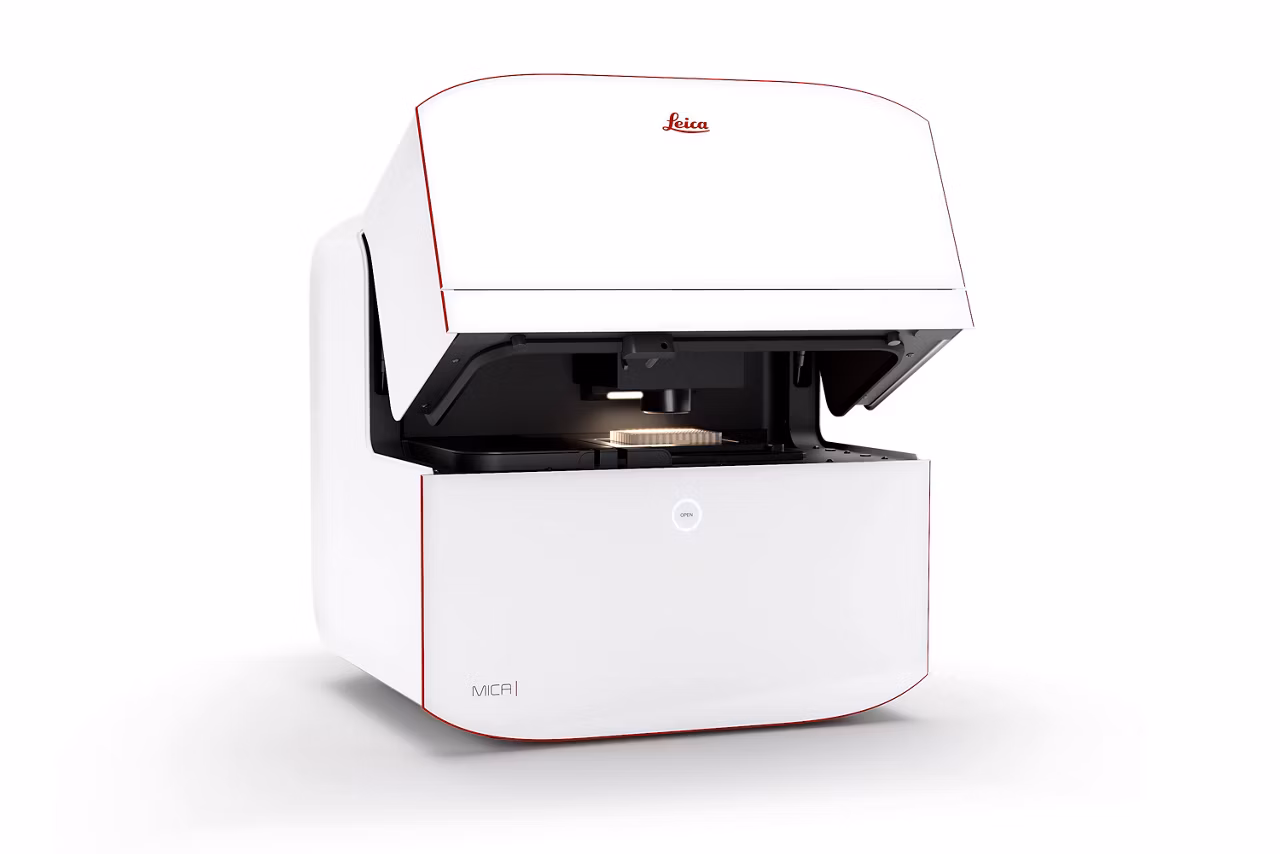

Mica Widefield Microhub Automated Microscope
Mica Widefield has been designed for widefield fluorescence and transmitted light microscopy. The extensive automation combined with an intuitive user interface allow for an easy handling of the high-performant system. The microhub is equipped with 4 LEDs and the FluoSync detector unit for widefield microscopy – thus allowing the handling of samples with a wide excitation and detection spectrum.
Mica Widefield can be upgraded to a live cell system with temperature, CO2 and humidity regulation and even hypoxia experiments – Mica Widefield Live Cell. Mica Widefield can be upgraded to a Mica WideFocal.
Target Application: Fixed samples, fluorescence imaging, transmitted light.
- Key Features:
- Widefield imaging only.
- Integrated modulation contrast (IMC) and brightfield in RGB or grayscale.
- FluoSync™ detector for simultaneous 4-label imaging.
Ideal For: High-throughput fluorescence imaging of fixed samples.
Details:
- Mica Widefield package
- Mica High Power WS and Analysis Package
- 31.5" Screen
- Aivia Go software
- Chamber slide
- 2 x objective 20x & 63x
- Type F Immersion liquid
- 1 day advanced application training
- Full Installation
- Microscopy basic training
- Keyboard and Mouse
Keyboard US ;USB Hub
11600220
1
QTY
Advanced application training one day
9I_CM_APPLIC1
1
QTY

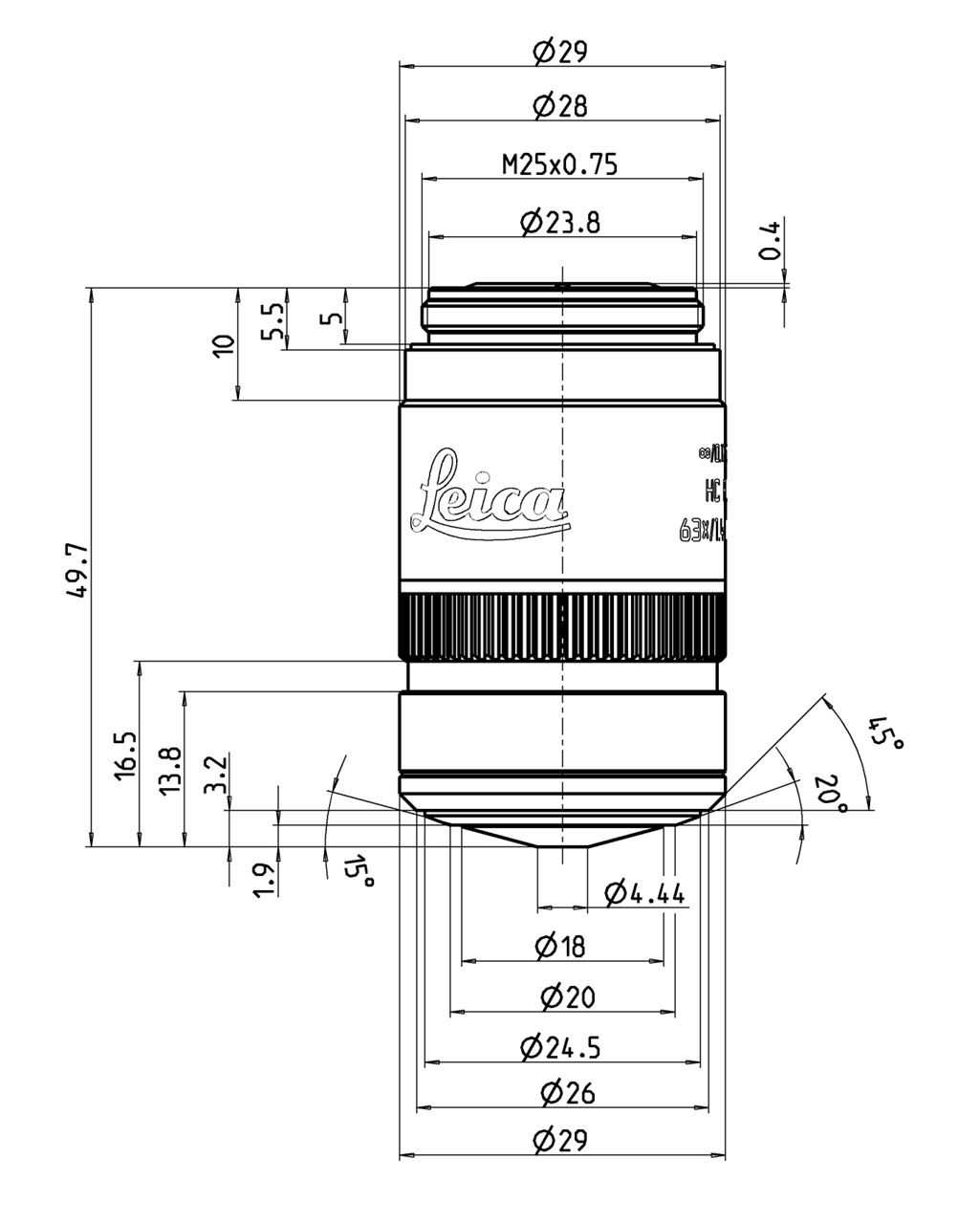

Microscope Objective HC PL APO 63x1,40 OIL CS2
11506535
1
QTY

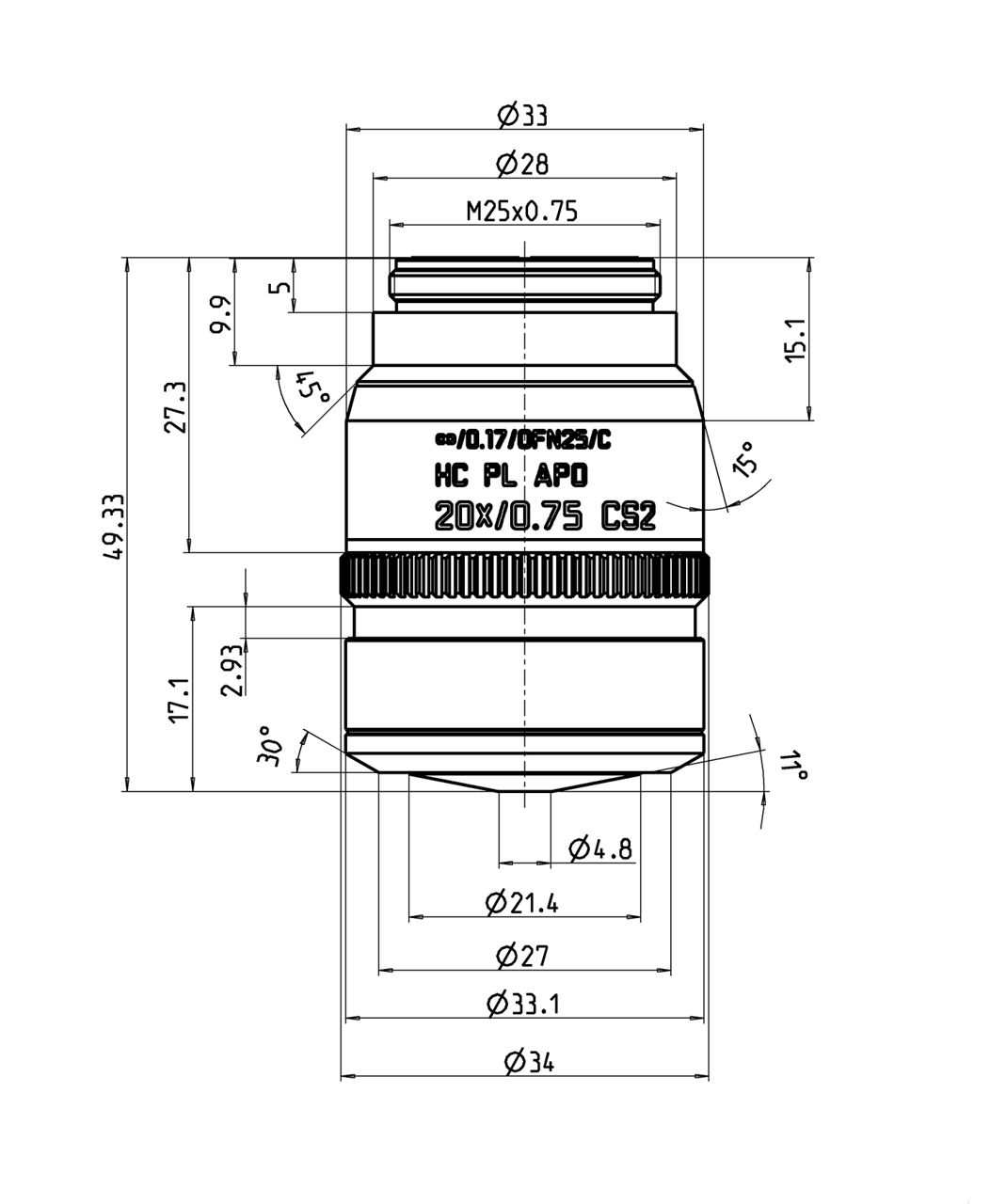

Microscope Objective HC PL APO 20x/0,75 CS2
11506517
1
QTY
Type F Immersion liquid, ISO 8036
11513859
1
QTY
Mica Core
11525700
1
QTY
Okolab Click-In,standard & chamber slide
11525712
1
QTY
Mica High Power WS and Analysis Package
11525738
1
QTY
Cordless Keyboard+Mouse US
11533582
1
QTY
HP E32K G5 31.5 UHD IPS"
11533649
1
QTY
Mica Widefield
11889183
1
QTY
Service Installation
9I_CM_MICA_B
1
QTY
Microscopy Training Basic
9T-CM-APP_BASIC
1
QTY
