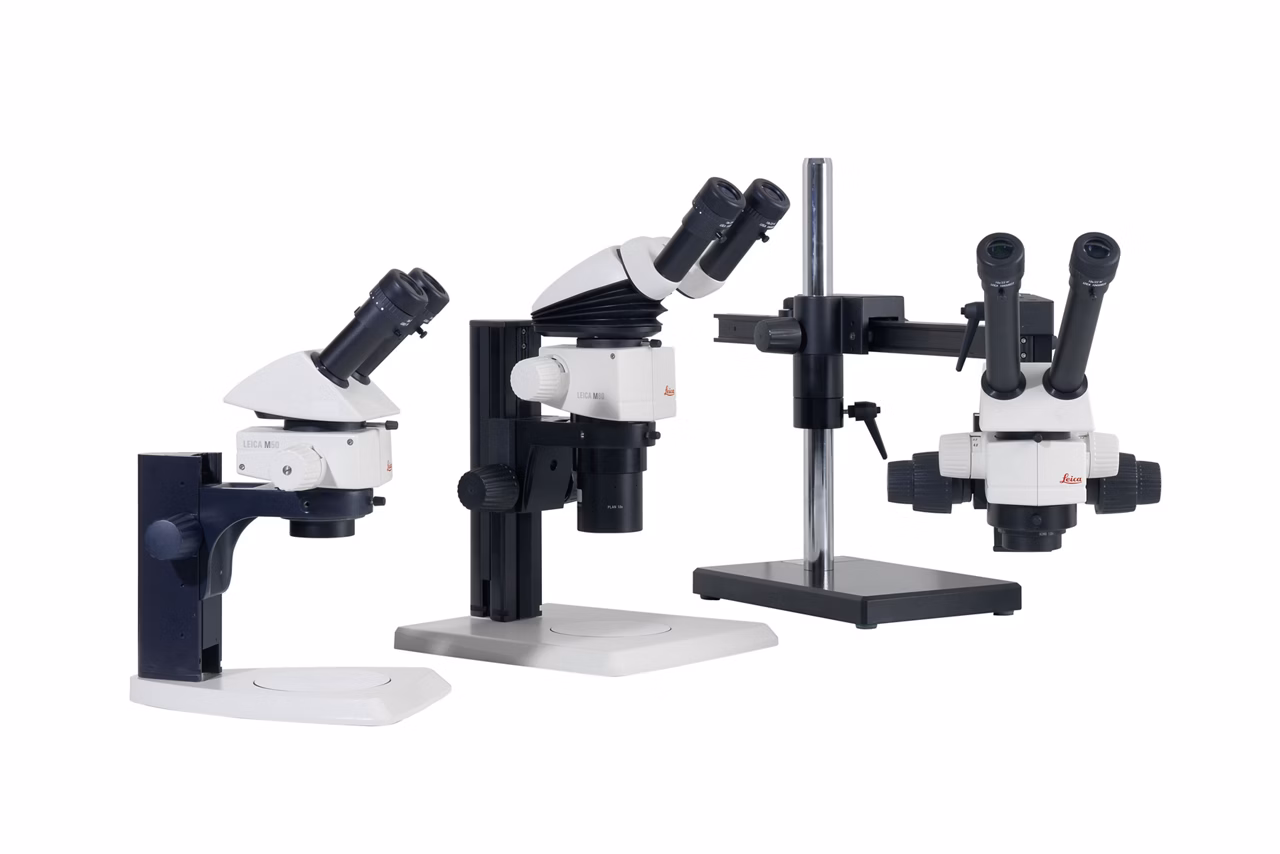

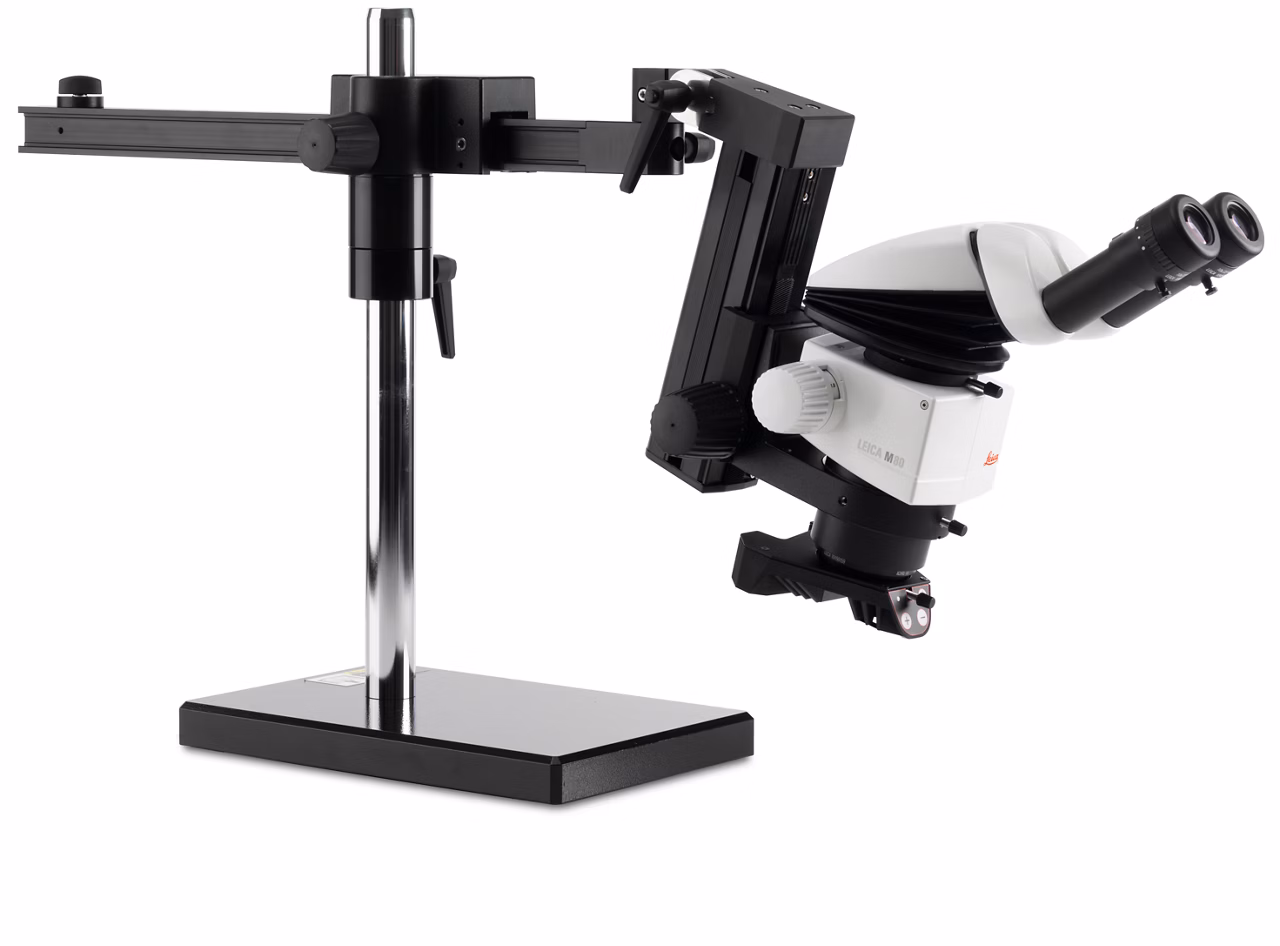

M80 Ergonomic Stereo Microscope for Inspection with Removable Integrated Camera

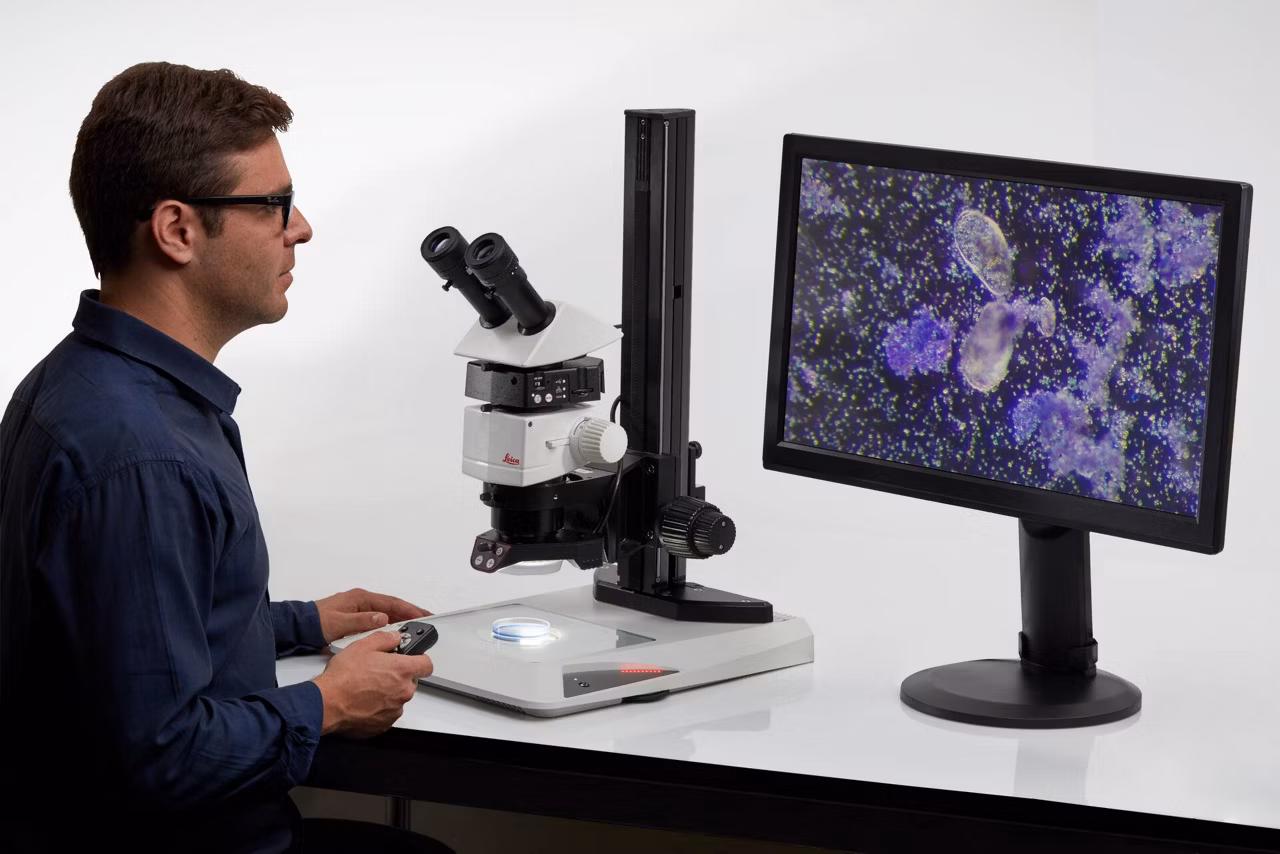

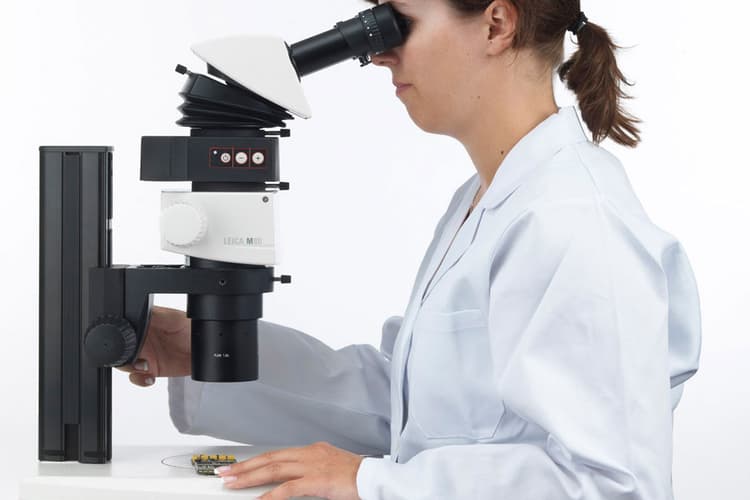

The M80 stereo microscope is a versatile solution, excelling in inspection tasks with its ergonomic design and removable integrated camera. Tailored for professionals, this microscope offers unparalleled clarity and ease of use, enhancing the efficiency of inspection processes. Its ergonomic features ensure comfortable use during prolonged periods of work. The removable integrated camera adds a layer of flexibility, allowing users to document and analyze their inspections seamlessly. Elevate your inspection experience with the M80, a reliable stereo microscope that combines precision, ergonomics, and advanced imaging capabilities for optimal performance.
- Magnification range: 7.5x -60x (1x objective, 10x eyepieces)
- Optics parfocal
- 8 click stop zoom settings
- Modular system
- Suitable for achromatic, plan or planapo objectives
- Objective thread M60
- ESD
| Contrasting Method(s) | Brightfield |
| Long Working Distance | Yes |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Single Camera |
| Microscopy Software Available | Documentation, Measuring |
| Has Eyepiece | Yes |
| Microscope Type(s) | Stereo Microscope |
| Has Resonance Scanner | No |
| Microscope Environmental Control | None |
| Maximum Field of View (X-Axis) (Metric mm) | 30.7 mm |
| Maximum Field of View (Y-Axis) (Metric mm) | 30.7 mm |
| Maximum Optical Magnification (x times) | 60 |
Leica M80 optics carrier
10450155
1
QTY
Eyepiece 10x/23B, adjustable, 3d gen
10450910
2
QTY
Ergo Tube 10°-50°, binocular
10450158
1
QTY
Microscope Objective Achromat 1.0x, WD = 90 mm
10450159
1
QTY
Power cable, 2 m, USA
10445661
2
QTY

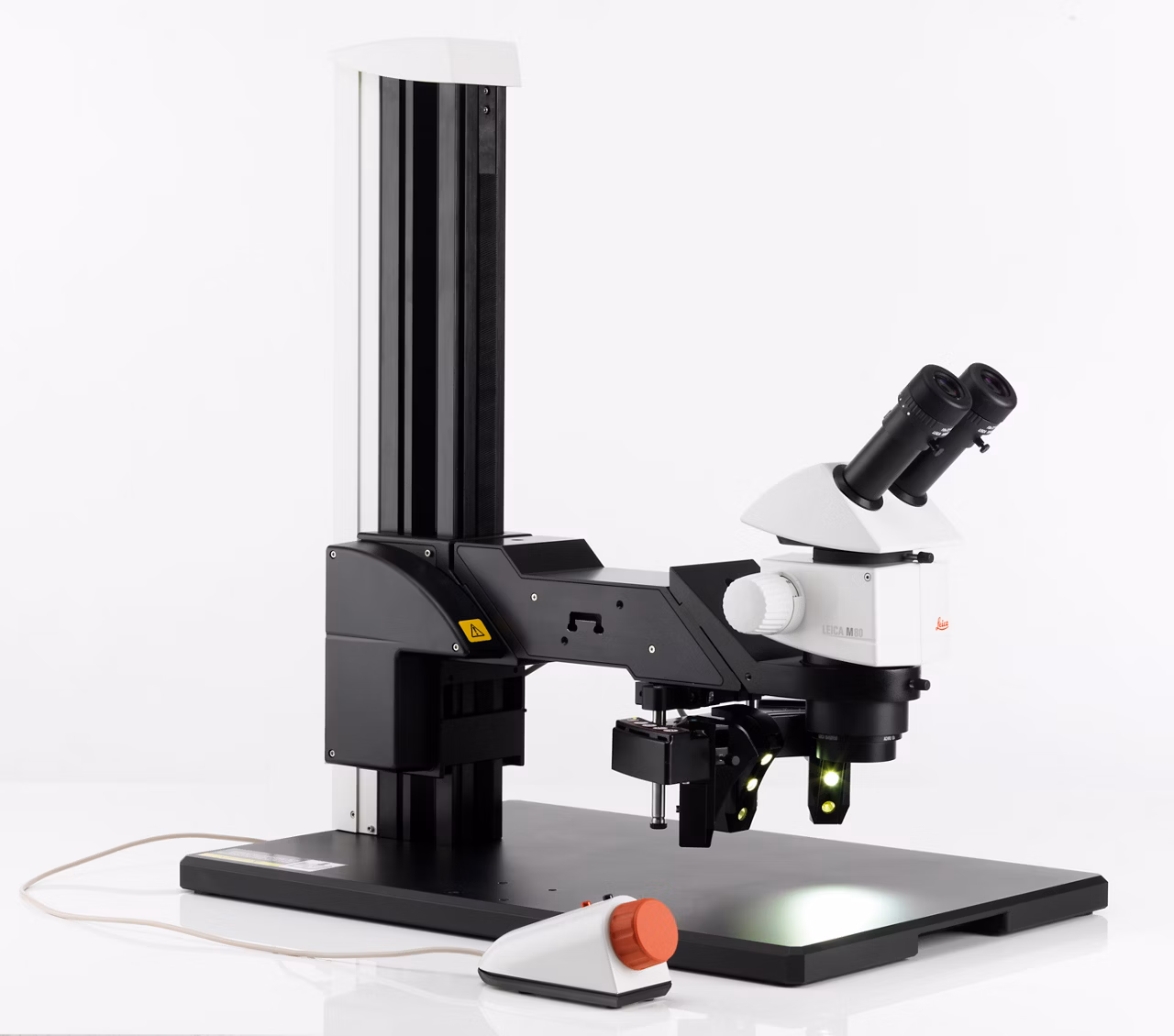

Focus drive 500 mm M-Series Routine
10450172
1
QTY
Microscope carrier
10450173
1
QTY
Inc. light base, large w. AntiShock feet
10450049
1
QTY
Intermediate adapter for TL and IL Base
10450434
1
QTY

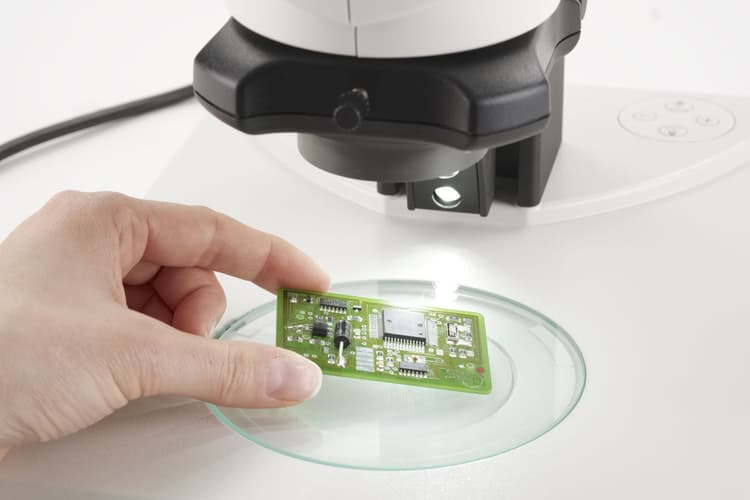

Leica LED3000 RL, 58 mm
10450271
1
QTY
Polarisation set for LED3000 RL
10450337
1
QTY
Power Supply for LED3000/LED5000
10450266
1
QTY
Dust cover antistatic, small
10447039
1
QTY

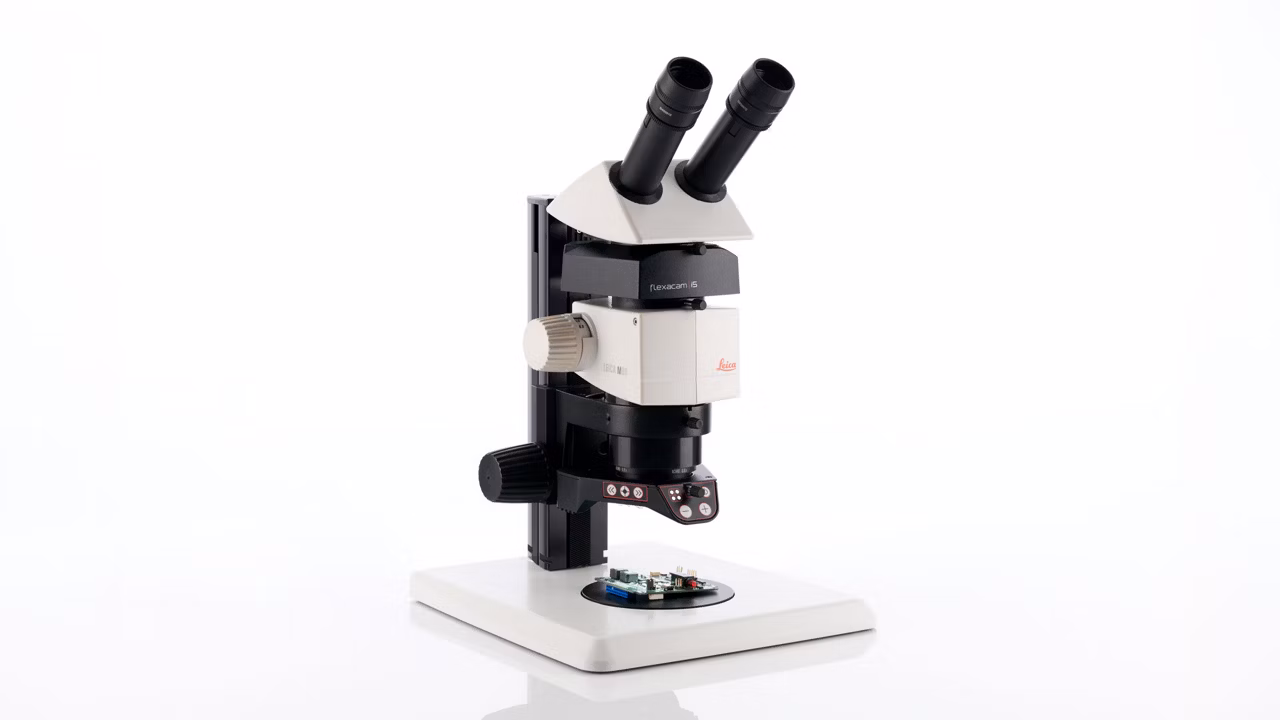

Flexacam i5 (Stereo)
12730536
1
QTY
HP E27k G5 27inches UHD
11533663
1
QTY
