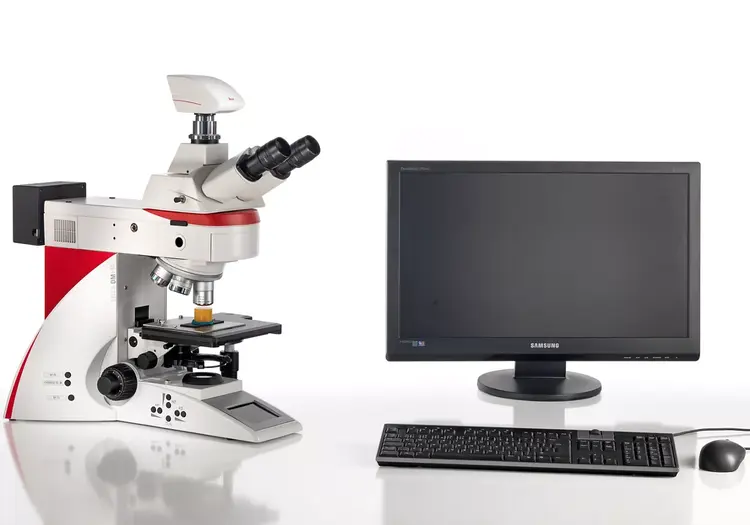

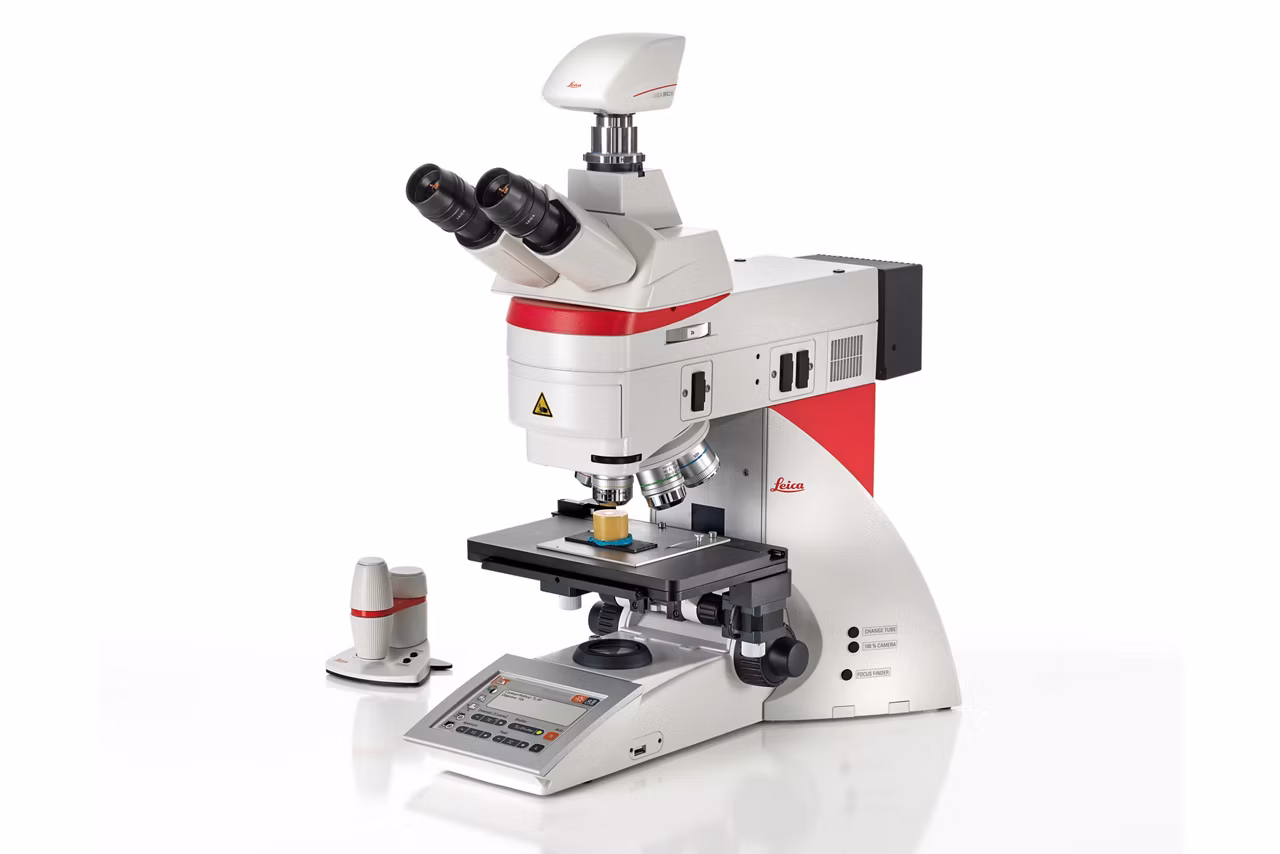

DM6 M Metallographic Microscope
Meet the DM6 M – a pinnacle in optical precision. This advanced light microscope combines ergonomic design with high-resolution imaging, providing versatile applications in various fields. Built with Leica's renowned craftsmanship, the DM6 M offers durability and stability. Explore the microscopic world with ease and precision, as cutting-edge technology meets user-centric design in this indispensable scientific tool.
Specifications:
- DM6M fully motorized inspection microscope with touch screen control e.g. of all contrasting modes Brightfield (BF), Highdynamic Darkfield (HDF), Differential Interference Contrast (DIC), Polarization (POL) or Fluorescence (FL).
- Including Light Manager for a time saving and easy operation.
- For a very fast overview on the sample the 1.25x objective can be adapted.
- The integrated Contrast Manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user.
- 27“ 4k HDMI Monitor
- W2 Workstation (for imaging with xyz motorized Microscopes)
- Motorized Z drive
- With magnification changer
- Phototube HC L2TU 4/5/6
- Motorized objective turret
- With DF contrast
- Automated (motorized + scanning)
- Scanning stage 100x100 (2mm)
- Metal insert 160x116
| Contrasting Method(s) | Brightfield, Incident Light Darkfield |
| Long Working Distance | Optional |
| Microscope Stage Type(s) | Motorized |
| Microscope Camera Option(s) | Single Camera |
| Microscopy Software Available | 2D Anaylsis, 3D Acquisition (Z-Stacking), Cleanliness Analysis, Documentation, Measuring, Phase Analysis, Steel Analysis, Tile Stitching |
| Has Eyepiece | Yes |
| Microscope Type(s) | Upright Microscope |
| Has Resonance Scanner | No |
| Microscope Environmental Control | None |
| Maximum Field of View (X-Axis) (Metric mm) | 20 mm |
| Maximum Field of View (Y-Axis) (Metric mm) | 20 mm |
| Maximum Optical Magnification (x times) | 1500 |
| Microscope Group | Light Microscope |
| Application(s) | Automotive and Transportation;Material Analysis;Metallography;Metals and Machine Engineering;Steel Quality Rating;Technical Cleanliness |
DM6 M basic stand, RL/TL, LED, mot. Z
11889193
1
QTY
Dust cover for DM4/6
11505168
1
QTY
Ground plate with filter magazine
11888100
1
QTY
Reflector BF, fixed
11888716
1
QTY

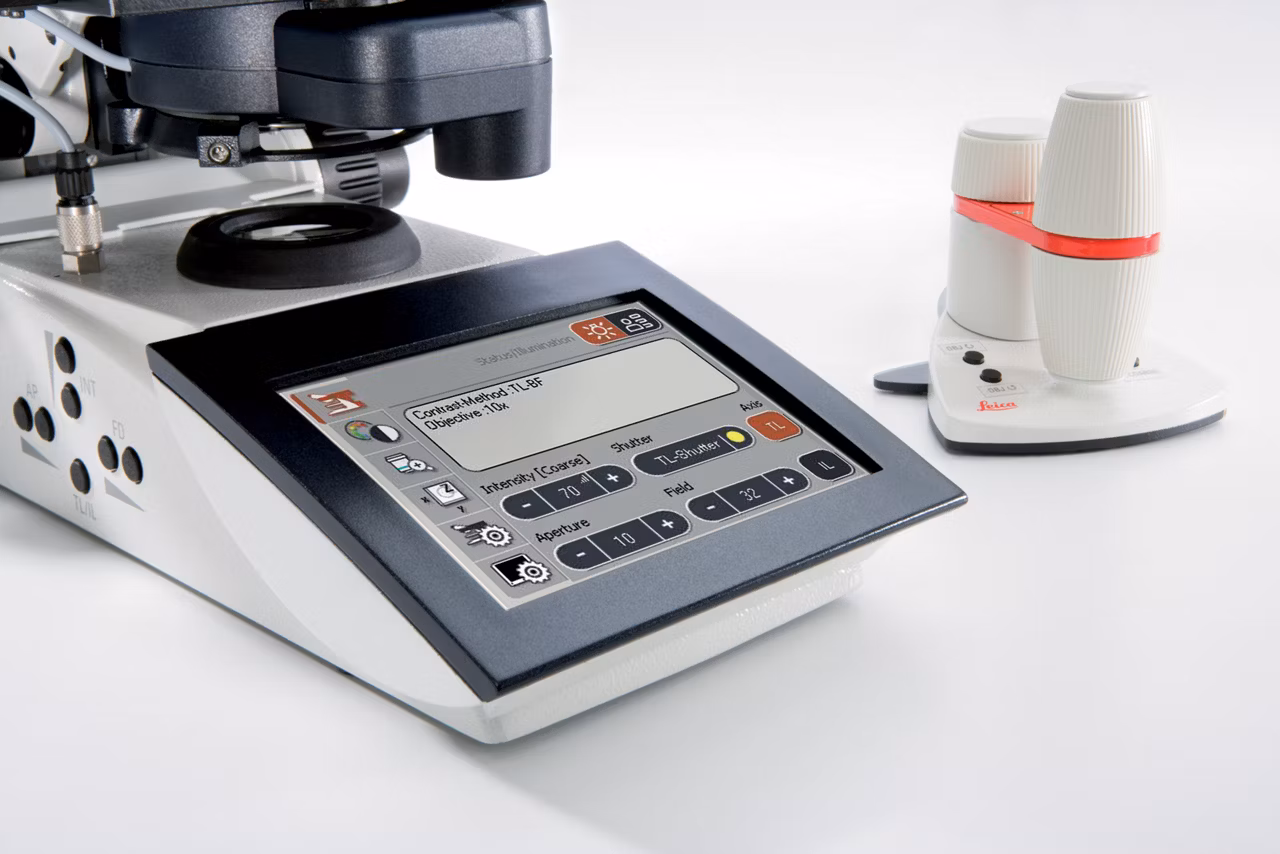

Smart Move l²C
11525232
1
QTY
Magnification changer IND 1/1.5/2x, cod.
11888789
1
QTY
Reflector DF
11888740
1
QTY
CTR compact XY
11525227
1
QTY
LED lamp housing DM6, cable long
11504242
1
QTY
Tube HC L2TU 4/5/7, binoc. phototube
11501598
1
QTY
Eyepiece HC PLAN s 10x/25 Br. M
11507808
2
QTY
Stage insert 160x116x7mm
11532701
1
QTY
Glass plate 160x116x3mm; for industrial
11600183
1
QTY
Scanning stage mot., DM4-6, 100x100,2mm
11501260
1
QTY
Metal insert 160x116 f.Scan.-St.100x80
11532502
1
QTY
Cable scanningstage, XY-adv. board
11525218
1
QTY
Condenser BF
11505141
1
QTY
Condenser head achr. 0.50 S15
11501037
1
QTY
Microscope Objective HC PL FLUOTAR 5x/0,15 BD
11566046
1
QTY
Microscope Objective HC PL FLUOTAR 10x/0,30 BD
11566503
1
QTY
Microscope Objective HC PL FLUOTAR 20x/0,45 BD
11566509
1
QTY
Microscope Objective HC PL FLUOTAR 50x/0,80 BD
11566201
1
QTY
Microscope Objective HC PL FLUOTAR 100x/0,90 BD
11566203
1
QTY
K5C The Color CMOS Camera
11547118
1
QTY
C-Mount adapter 1x HC f. 1"
11541510
1
QTY
HP E27k G5 27inches UHD
11533663
1
QTY
Silver Workstation
11640714
1
QTY
