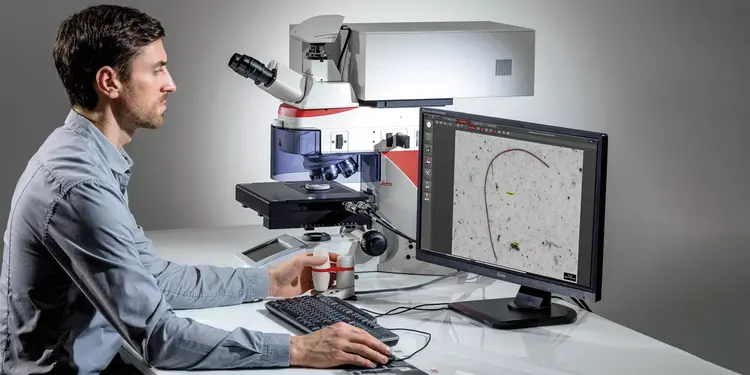

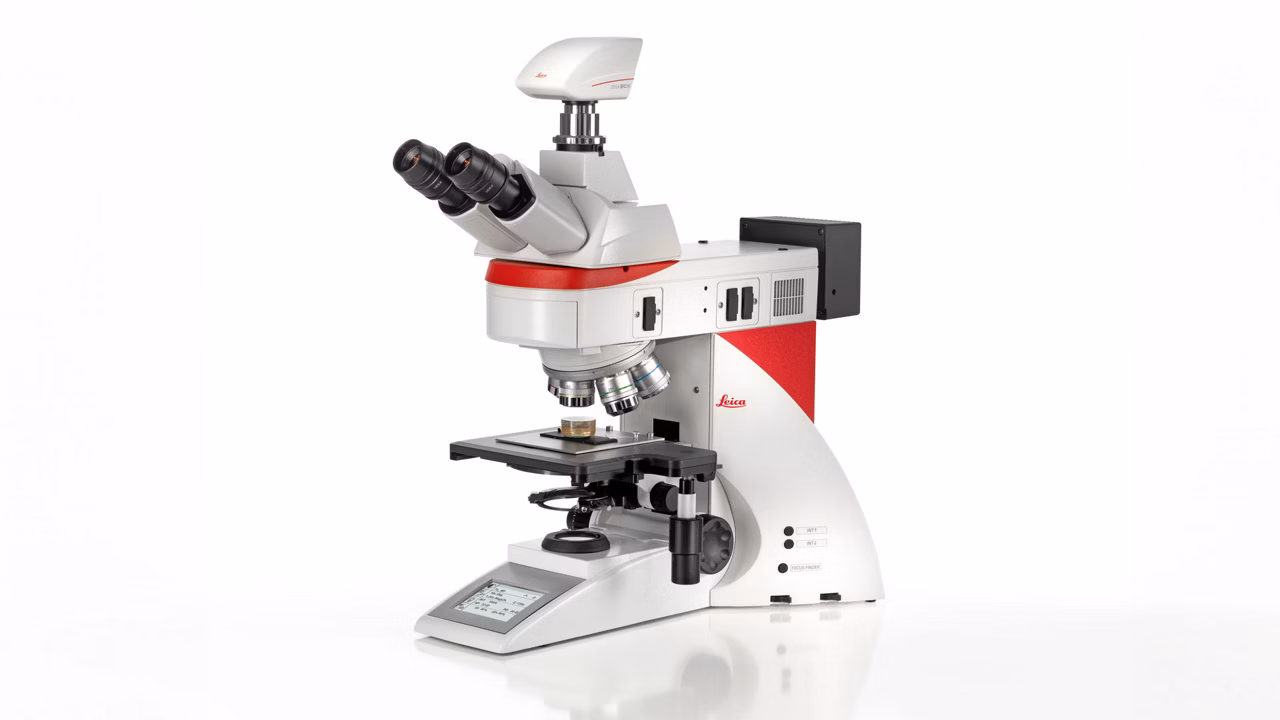

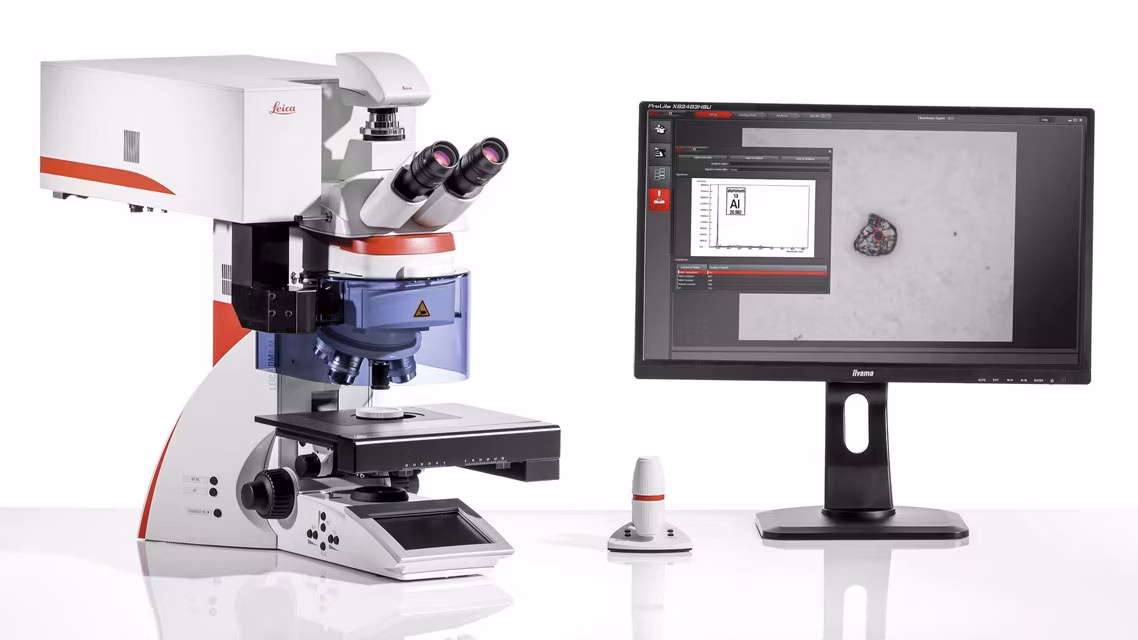

DM6 M LIBS Material Analysis Microscope

Use the DM6M fully motorized inspection microscope with all contrasting modes and benefit from the huge magnification range starting at 1.25x for fast sample overview. The light and contast manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user. By the possibility of an instantaneous chemical analysis by laser induced breakdown spectroscopy (LIBS) the user gets all required information direct and on the spot within seconds without the need of further sample preparation or transportation to other devices.

>Specifications

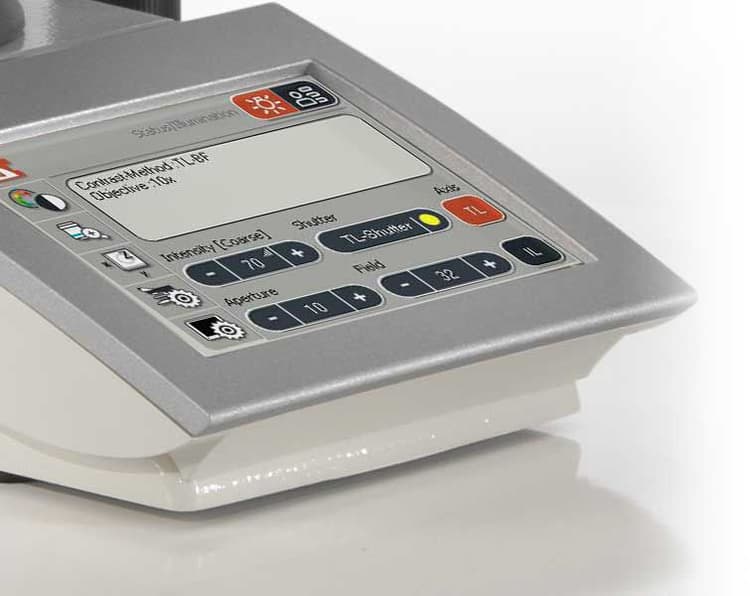

Including Light Manager for a time saving and easy operation.
For a very fast overview on the sample the 1.25x objective can be adapted.
The integrated Contrast Manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user.
27“ 4k HDMI Monitor
W2 Workstation (for imaging with xyz-motorized Microscopes)
Motorized Z-drive
With magnification changer
Phototube HC L2TU 4/5/6
Motorized objective turret
With DF contrast
Automated (motorized + scanning)
Scanning stage 100x100 (2mm)
Metal insert 160x116
LIBS standard sample

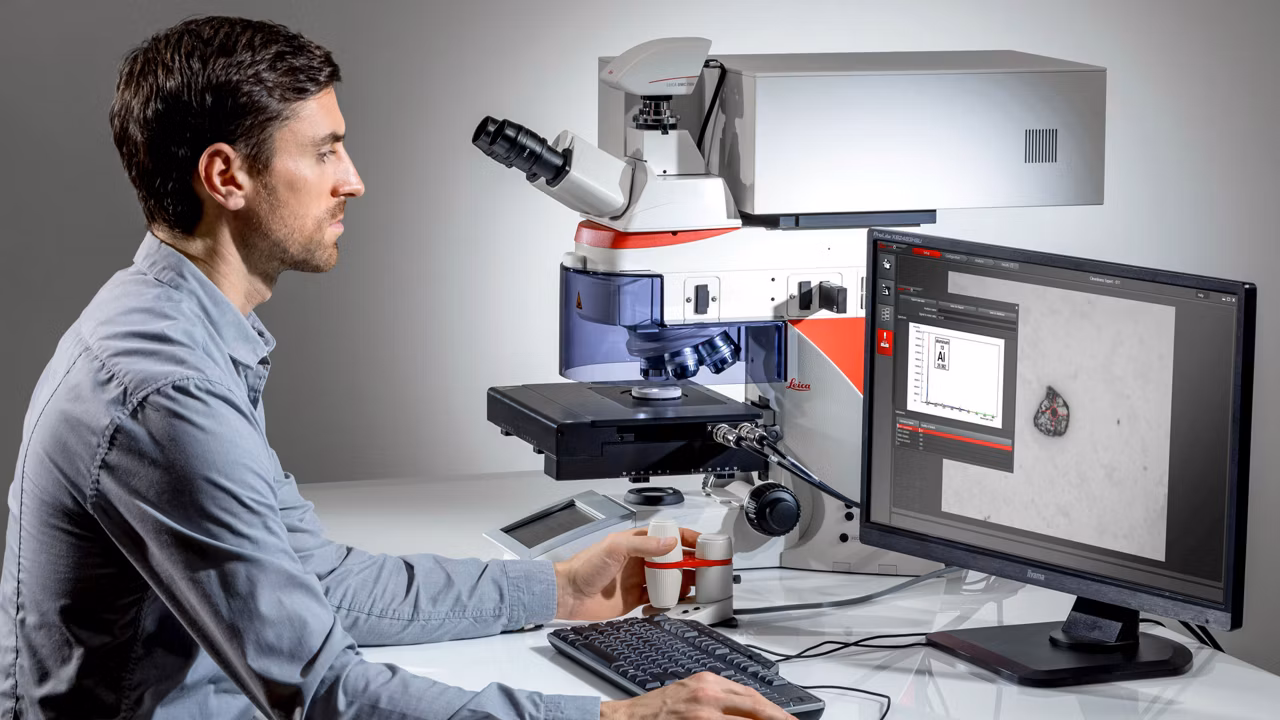

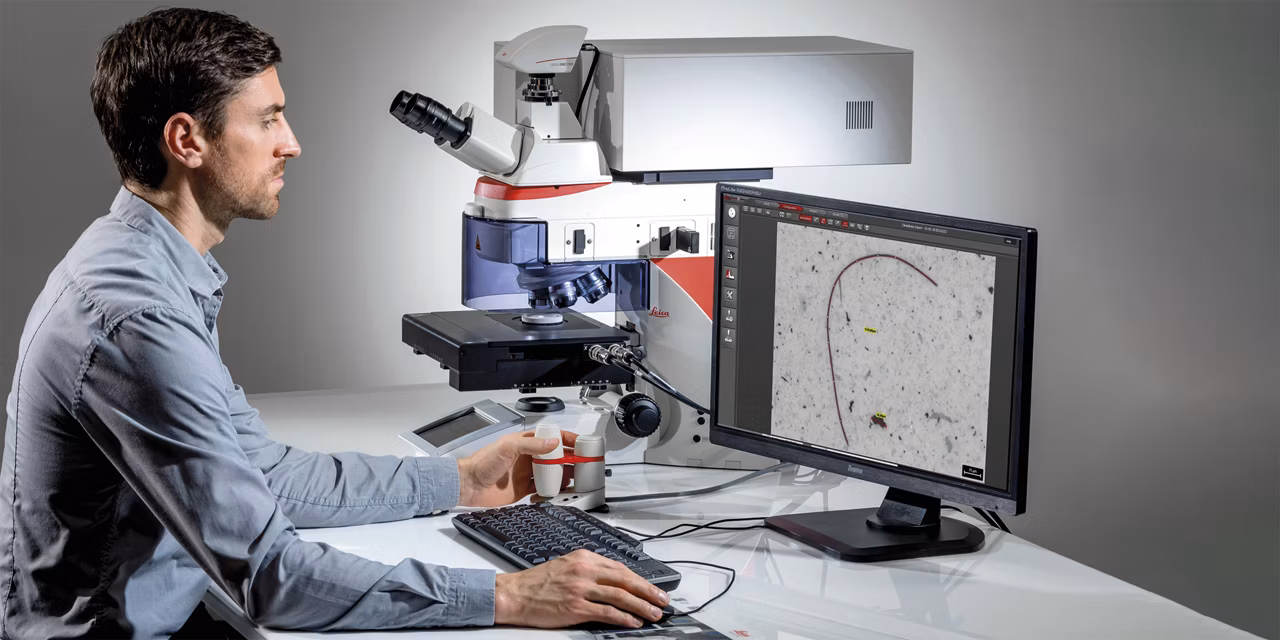

The LIBS module turns a Leica optical microscope into a 1-step solution that combines visual inspection and chemical analysis right at your workspace Determine the composition of what you have visually identified within seconds Use LIBS to perform advanced material analysis 90% faster compared to inspection with SEM/EDS Surface contamination or coatings can also be easily removed Chemical mapping and micro-drilling are further analytical steps

Instrumentation
Contrasting Method(s)	Brightfield, Incident Light Darkfield
Long Working Distance	Optional
Microscopy Technique	LIBS
Microscope Stage Type(s)	Motorized
Microscope Camera Option(s)	Single Camera
Microscopy Software Available	2D Anaylsis, 3D Acquisition (Z-Stacking), Cleanliness Analysis, Documentation, Measuring, Phase Analysis, Steel Analysis, Tile Stitching
Has Eyepiece	Yes
Microscope Type(s)	Upright Microscope
Has Resonance Scanner	No
Microscope Laser Type	Fixed Wave Length
Microscope Environmental Control	None
Maximum Field of View (X-Axis) (Metric mm)	20 mm
Maximum Field of View (Y-Axis) (Metric mm)	20 mm
Maximum Optical Magnification (x times)	1500

Search Facet
Microscope Group	Light Microscope
Application(s)	Automotive and Transportation;Material Analysis;Metallography;Metals and Machine Engineering;Steel Quality Rating;Technical Cleanliness

DM6 M basic stand, RL/TL, LED, mot. Z

11889193

QTY

Dust cover for DM4/6

11505168

QTY

Ground plate with filter magazine

11888100

QTY

Reflector BF, fixed

11888716

QTY

Smart Move l²C

11525232

QTY

Reflector DF

11888740

QTY

CTR compact XY

11525227

QTY

LED lamp housing DM6, cable long

11504242

QTY

Tube HC L2TU 4/5/7, binoc. phototube

11501598

QTY

Eyepiece HC PLAN s 10x/25 Br. M

11507808

QTY

Stage insert 160x116x7mm

11532701

QTY

Glass plate 160x116x3mm; for industrial

11600183

QTY

Scanning stage mot., DM4-6, 100x100,2mm

11501260

QTY

Metal insert 160x116 f.Scan.-St.100x80

11532502

QTY

Cable scanningstage, XY-adv. board

11525218

QTY

Condenser BF

11505141

QTY

Condenser head achr. 0.50 S15

11501037

QTY

Microscope Objective HC PL FLUOTAR 5x/0,15 BD

11566046

QTY

Microscope Objective HC PL FLUOTAR 10x/0,30 BD

11566503

QTY

Microscope Objective HC PL FLUOTAR 20x/0,45 BD

11566509

QTY

Microscope Objective HC PL FLUOTAR 50x/0,80 BD

11566201

QTY

Microscope Objective HC PL FLUOTAR 100x/0,90 BD

11566203

QTY

K5C The Color CMOS Camera

11547118

QTY

C-Mount adapter 1x HC f. 1"

11541510

QTY

LIBS standard sample

11560204

QTY

SpectralTools licence

11560205

QTY

LIBS module, complete

11560200

QTY

LIBS reflector cube

11561105

QTY

Microscope Objective 20x/0.40 LIBS NUV

11518149

QTY

Laser safety set for mot. stage

11560201

QTY

HP E27k G5 27inches UHD

11533663

QTY

Silver Workstation

11640714

QTY
