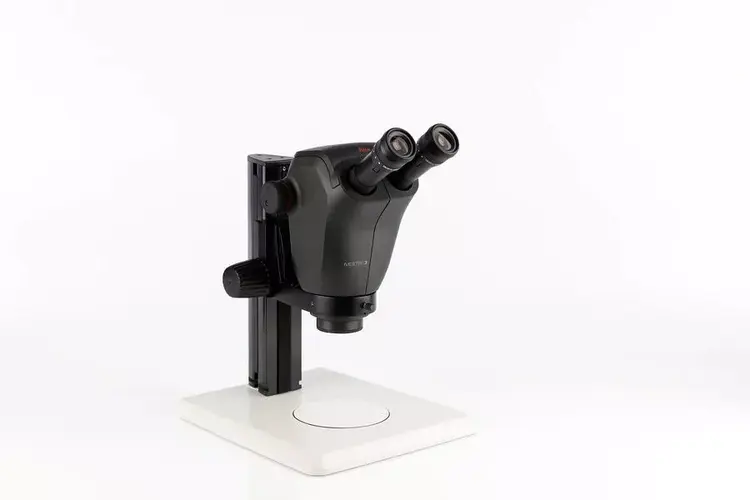

Ivesta 3 Stereo Microscope for Inspection
The Ivesta 3 stereo microscope is a precision instrument engineered for meticulous inspection and rework tasks. Designed for professionals, this microscope offers superior optics, ensuring unparalleled clarity in detailed work. Its ergonomic design and advanced features make it an indispensable tool for professionals engaged in inspection and rework applications. Elevate your workmanship with the Ivesta 3, a reliable stereo microscope crafted to enhance accuracy and efficiency in tasks requiring meticulous attention and precision.
Specifications:
- 9:1 zoom with magnification 6.1x-55x (10x eyepieces, no supplementary lens) – provides field of view up to 37.6mm for fast, accurate inspection
- 12 mm Depth of Field with Fusion Optics. Greenough optical design - provides very flat (plan) field of view and large depth of field
- Complete apochromatic corrected microscopy system - 35° angle eye tubes - for comfort and convenience
- 122 mm standard working distance (without lens shield) – ensures excellent accessibility to the samples
- Resolution up to 250 lp/mm (without supplementary lens, 10x eyepieces), maximum resolution up to 500 lp/mm (2x supplementary lens, 10x eyepieces)
- Antimicrobial PC/ABS housing with AgTreat™
- Clickstops at 10x 20x 30x 40x and 50x – inspection at specific magnification can be easily repeated
- Large range of supplementary lenses as well as eyepieces
- LED2500, LED stand with incident and transmitted light, For S-M- and DMS-Series 6100K colour temperature 4-point ring light for high brightness 3-point arc light for oblique illumination.
- Transmitted light with centered LED for contrast enhancing integrated power supply: 100 - 240V
- Dimension of Base : 331x257 mm
- Height of base: 35 mm
- Adjustable focus torque
| Contrasting Method(s) | Brightfield |
| Long Working Distance | Yes |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | No Camera |
| Has Eyepiece | Yes |
| Microscope Type(s) | Light Microscope, Stereo Microscope |
| Microscope Environmental Control | None |
| Maximum Field of View (X-Axis) (Metric mm) | 37.6 mm |
| Maximum Field of View (Y-Axis) (Metric mm) | 37.6 mm |
| Maximum Optical Magnification (x times) | 55 |
| Microscope Group | Light Microscope |
| Application(s) | Automotive and Transportation;Electronics and Semiconductor;Inspection |
Ivesta 3
10450983
1
QTY
Eyepiece 10x/23B, adj., eyeglasses
10447137
2
QTY
Power cable, 2 m, USA
10445661
1
QTY
Dust cover antistatic, small
10447039
1
QTY
Leica LED2500
10450846
1
QTY
