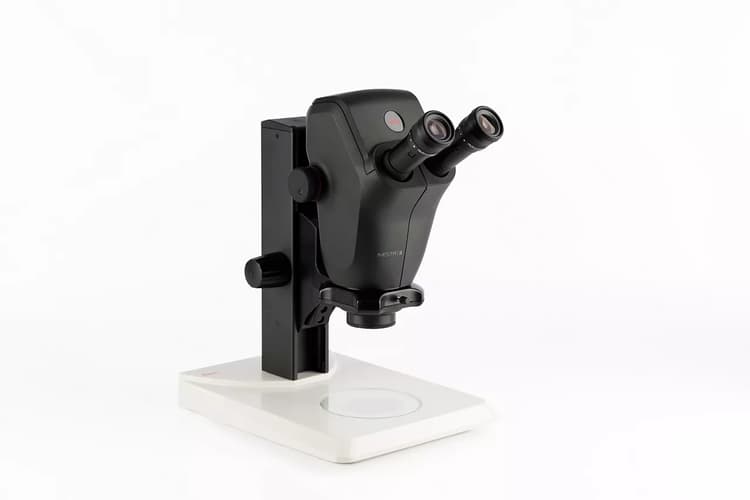

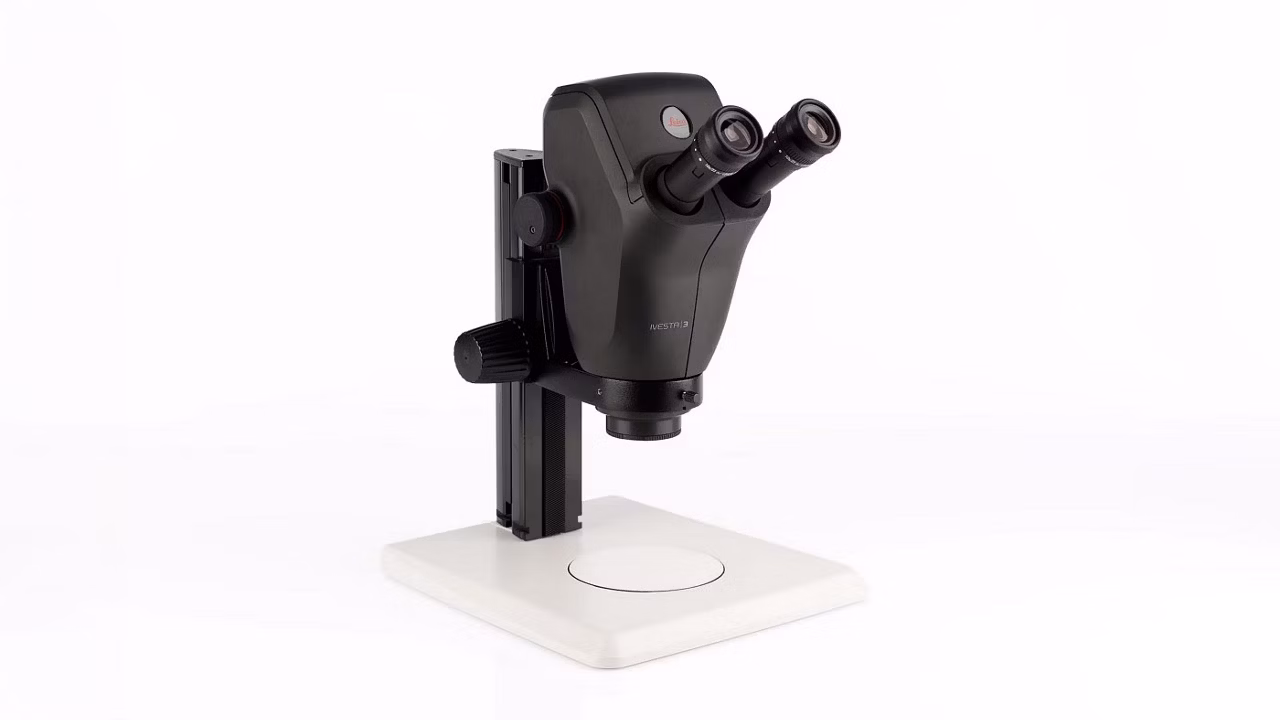

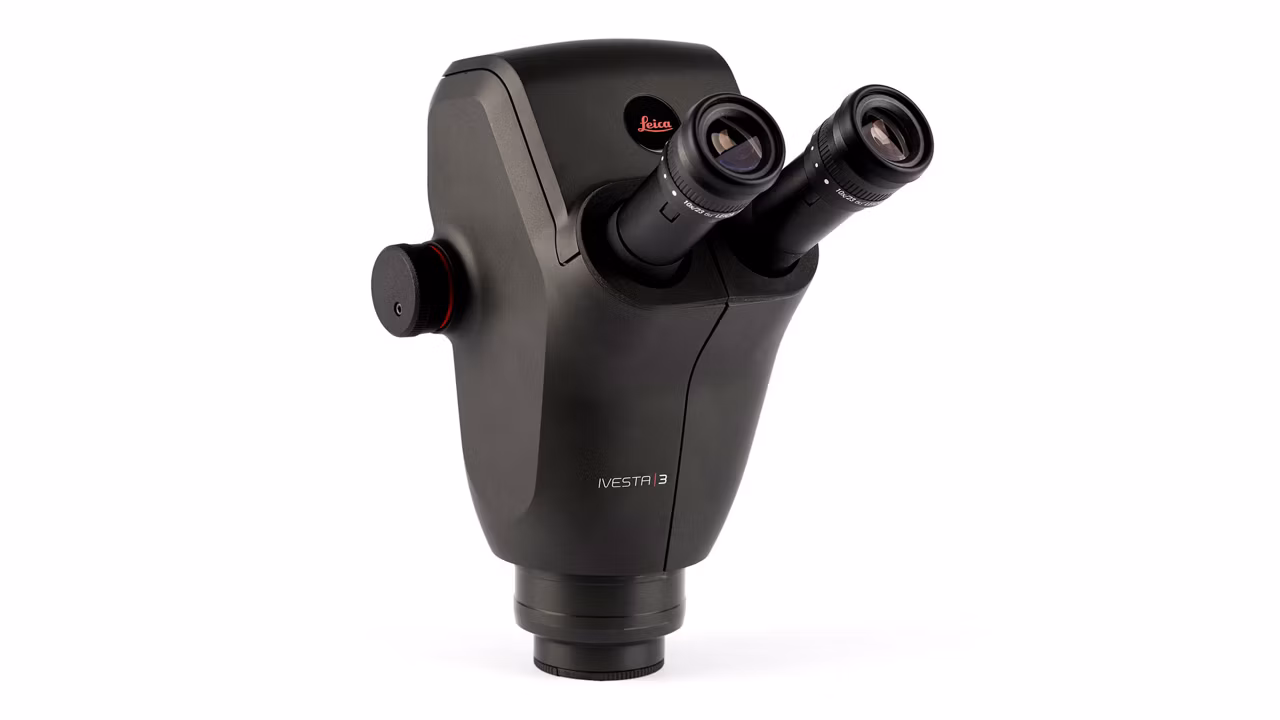

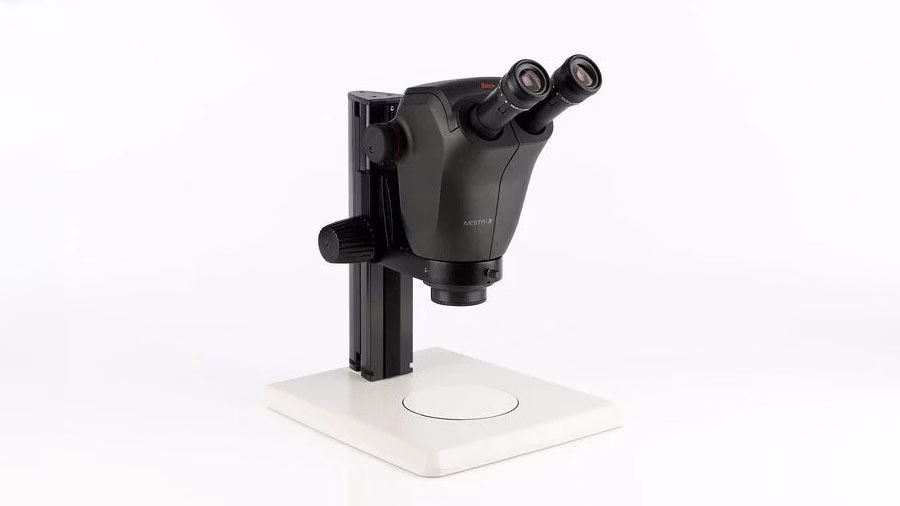

Ivesta 3 Stereo Microscope for Inspection with Integrated Camera

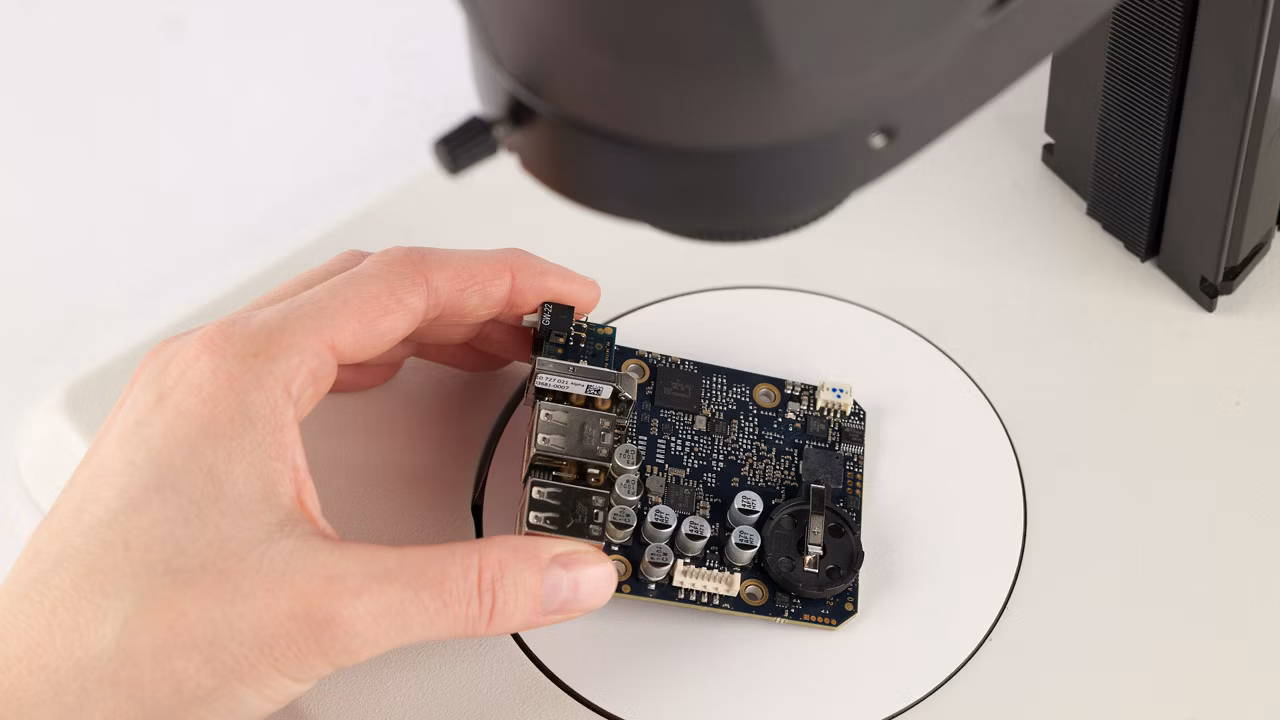

The Ivesta 3 stereo microscope is a powerhouse for inspection and rework, featuring an integrated camera for documentation. Designed for professionals, this microscope combines superior optics with advanced imaging capabilities, providing unparalleled clarity in inspection and rework tasks. The integrated camera adds an extra layer of efficiency, allowing users to document and analyze their work seamlessly. Elevate your work processes with the Ivesta 3, a reliable stereo microscope that seamlessly integrates cutting-edge technology to enhance accuracy and productivity in inspection and rework applications.

Specifications:

9:1 zoom with magnification 6.1x-55x (10x eyepieces, no supplementary lens) – provides field of view up to 37.6mm for fast, accurate inspection
12mm Depth of Field with Fusion Optics. Greenough optical design - provides very flat (plan) field of view and large depth of field
Complete apochromatic corrected microscopy system - 35° angle eye tubes - for comfort and convenience
122 mm standard working distance (without lens shield) – ensures excellent accessibility to the samples
Resolution up to 250 lp/mm (without supplementary lens, 10x eyepieces), maximum resolution up to 500 lp/mm (2x supplementary lens, 10x eyepieces)
Fully encoded zoom – inspection at specific magnification can be easily repeated
Antimicrobial PC/ABS housing with AgTreat™
Large range of supplementary lenses as well as eyepieces
Adapt the optical performance to the application requirements

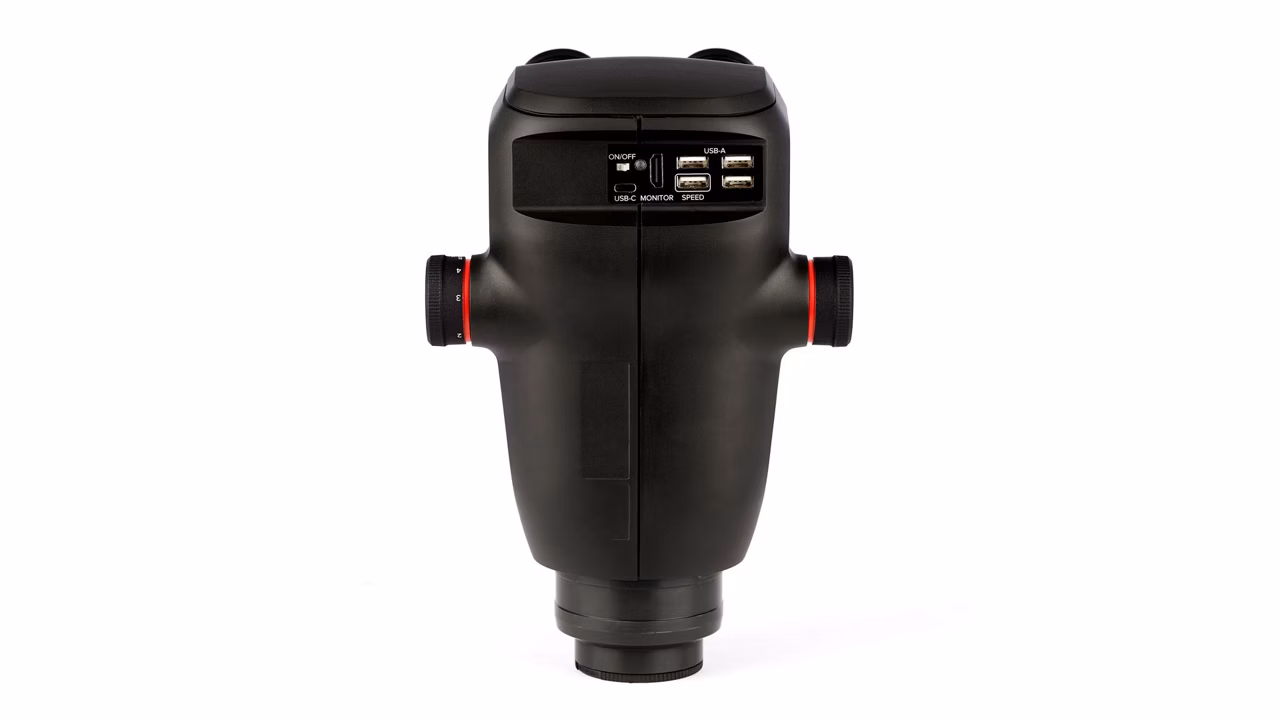

Integrated digital color camera with CMOS sensor
Possible to operate with 4k HDMI monitor using Enersight OSD
High definition live image 4k, 60fps, HDR
JPG images with up to 12 MP
Full HD MJPG Video recording with 30 fps
Camera control via Windows using Enersight Desktop or via tablet/smartphone via Enersight Mobile application
Capture images directly to USB Stick
USB-C connection to PC for Enersight Desktop
Delivered accessories: HDMI Cable, USB C-A cable, external power supply (without power cord), USB stick.

For digital image sharing directly on different devices, e.g., a monitor, mobile device, or computer Reduce the need for training and supervision and make decisions as a team more easily Inspect, compare, measure, and share seamlessly on a single intuitive interface, regardless of how or where you do it

Instrumentation
Contrasting Method(s)	Brightfield
Long Working Distance	Yes
Microscope Stage Type(s)	Manual
Microscope Camera Option(s)	Integrated
Microscopy Software Available	Documentation, Measuring
Has Eyepiece	Yes
Microscope Type(s)	Light Microscope, Digital Microscope, Stereo Microscope
Microscope Environmental Control	None
Maximum Field of View (X-Axis) (Metric mm)	37.6 mm
Maximum Field of View (Y-Axis) (Metric mm)	37.6 mm
Maximum Optical Magnification (x times)	55

Search Facet
Microscope Group	Digital Microscope
Application(s)	Automotive and Transportation;Electronics and Semiconductor;Inspection
