Ivesta 3 for Sample Sorting (e.g. Drosophila)

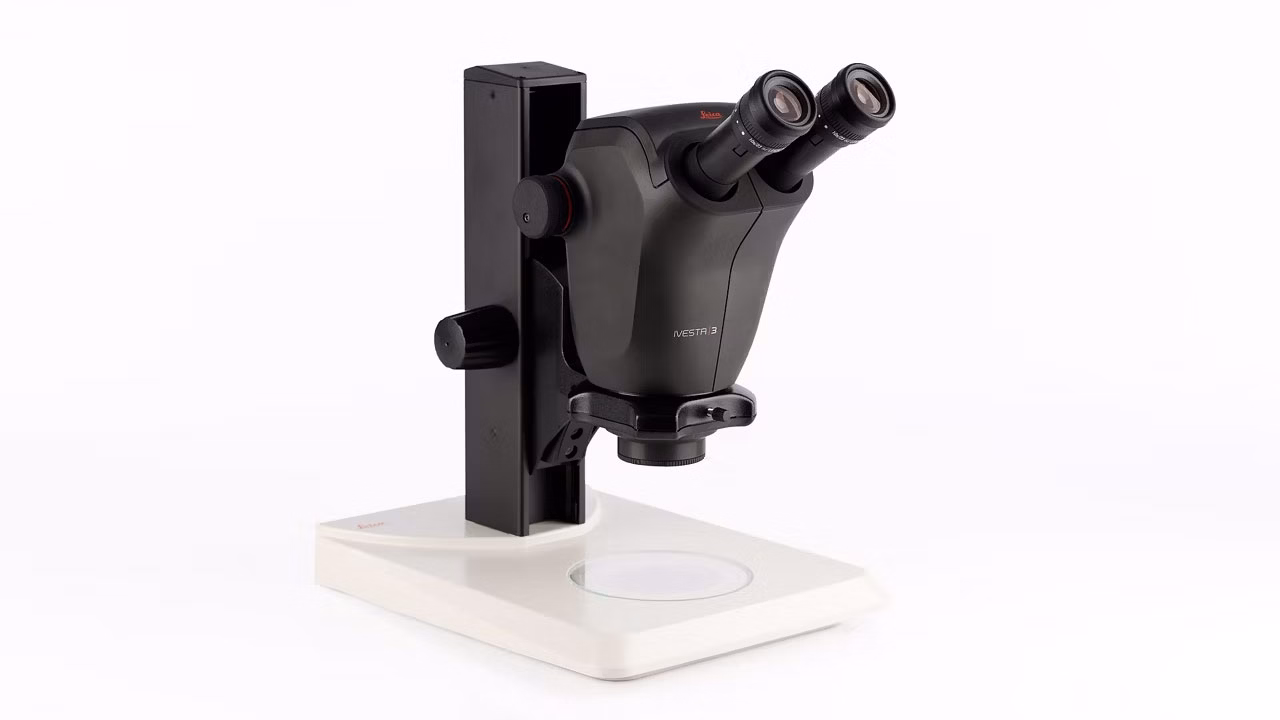

The Ivesta 3 stereo microscope is the perfect solution for routine sorting applications, combining precision optics with user-friendly features. This microscope not only offers exceptional clarity and ease of use but also includes an integrated camera for documentation purposes. With advanced capabilities and convenient documentation features, the Ivesta 3 streamlines routine sorting processes, providing researchers and professionals with a reliable and efficient tool for daily laboratory tasks. Elevate your workflow and capture important moments seamlessly with the performance and convenience offered by the Ivesta 3 stereo microscope and its integrated camera for documentation.
- 9:1 zoom with magnification 6.1x-55x (10x eyepieces, no supplementary lens) – provides field of view up to 37.6mm for fast, accurate inspection
- 12mm Depth of Field with Fusion Optics. Greenough optical design - provides very flat (plan) field of view and large depth of field
- Complete apochromatic corrected microscopy system - 35° angle eye tubes - for comfort and convenience
- 122 mm standard working distance (without lens shield) – ensures excellent accessibility to the samples
- Resolution up to 250 lp/mm (without supplementary lens, 10x eyepieces), maximum resolution up to 500 lp/mm (2x supplementary lens, 10x eyepieces)
- Fully encoded zoom – inspection at specific magnification can be easily repeated
- Antimicrobial PC/ABS housing with AgTreat™
- Clickstops at 10x 20x 30x 40x and 50x – inspection at specific magnification can be easily repeated
- Large range of supplementary lenses as well as eyepieces
Features
- Provides the flexibility to add a camera if needed, turning it into a digital microscope solution
- Achieve optimal 3D perception of the sample thanks to the FusionOptics technology
- Discuss quickly opinions and review findings with a fast live image display on a monitor
- Visualize sample movements on the monitor clearly and smoothly thanks to the high frame rate (up to 60 fps)
| Contrasting Method(s) | Brightfield |
| Long Working Distance | Yes |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | No Camera |
| Has Eyepiece | Yes |
| Microscope Type(s) | Light Microscope, Stereo Microscope |
| Microscope Environmental Control | None |
| Maximum Field of View (X-Axis) (Metric mm) | 37.6 mm |
| Maximum Field of View (Y-Axis) (Metric mm) | 37.6 mm |
| Maximum Optical Magnification (x times) | 55 |
Eyepiece 10x/23B, adj., eyeglasses
10447137
2
QTY
Focus column for S-Line
10446339
1
QTY
Incident light base, small
10446340
1
QTY
Dust cover antistatic, small
10447039
1
QTY
Ivesta 3
10450983
1
QTY
Lens shield for A- and S-Series
10450831
1
QTY
Power Supply for LED3000/LED5000
10450266
1
QTY
Leica LED3000 SLI
10450508
1
QTY
Adapter LEDx000 SLI/MCI - Routine
10450549
1
QTY
Power cable, 2 m, EURO
10445662
1
QTY
