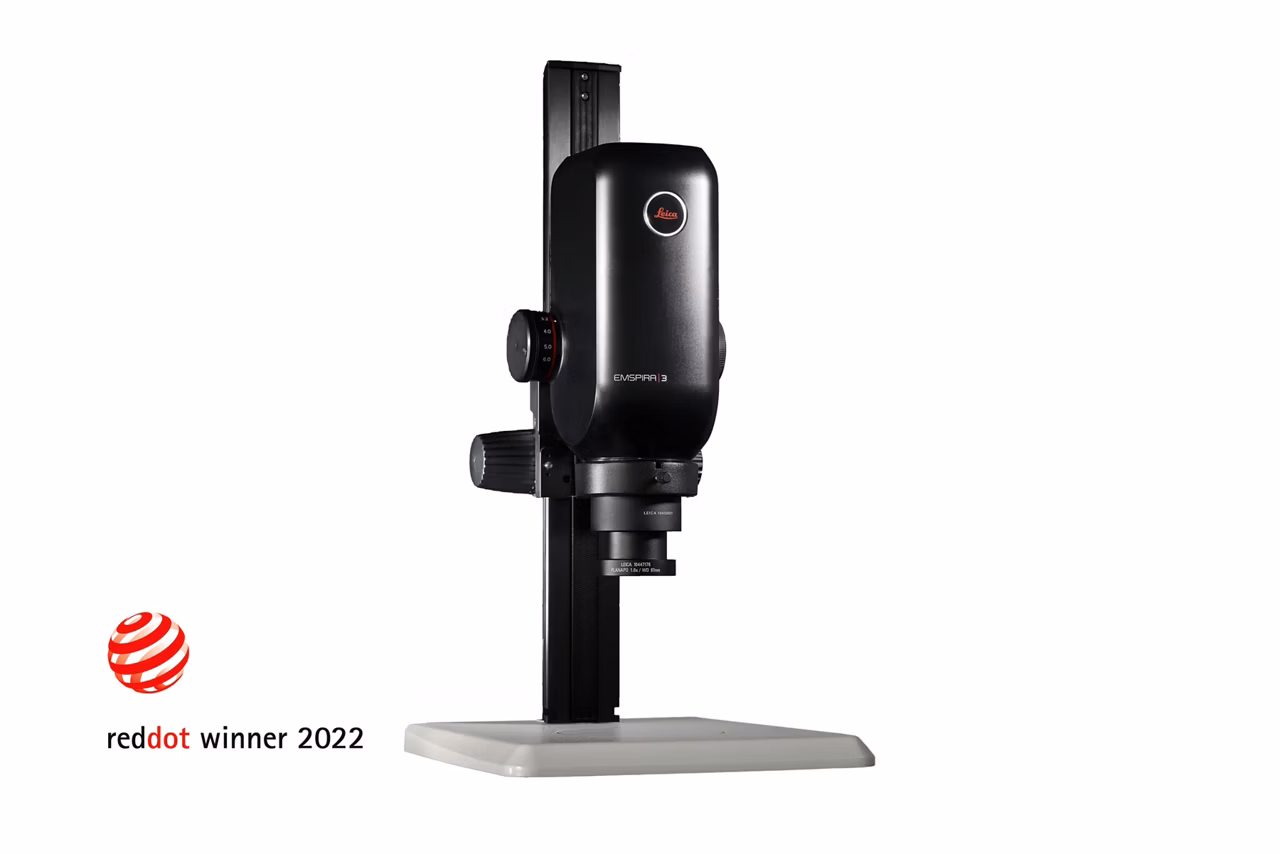

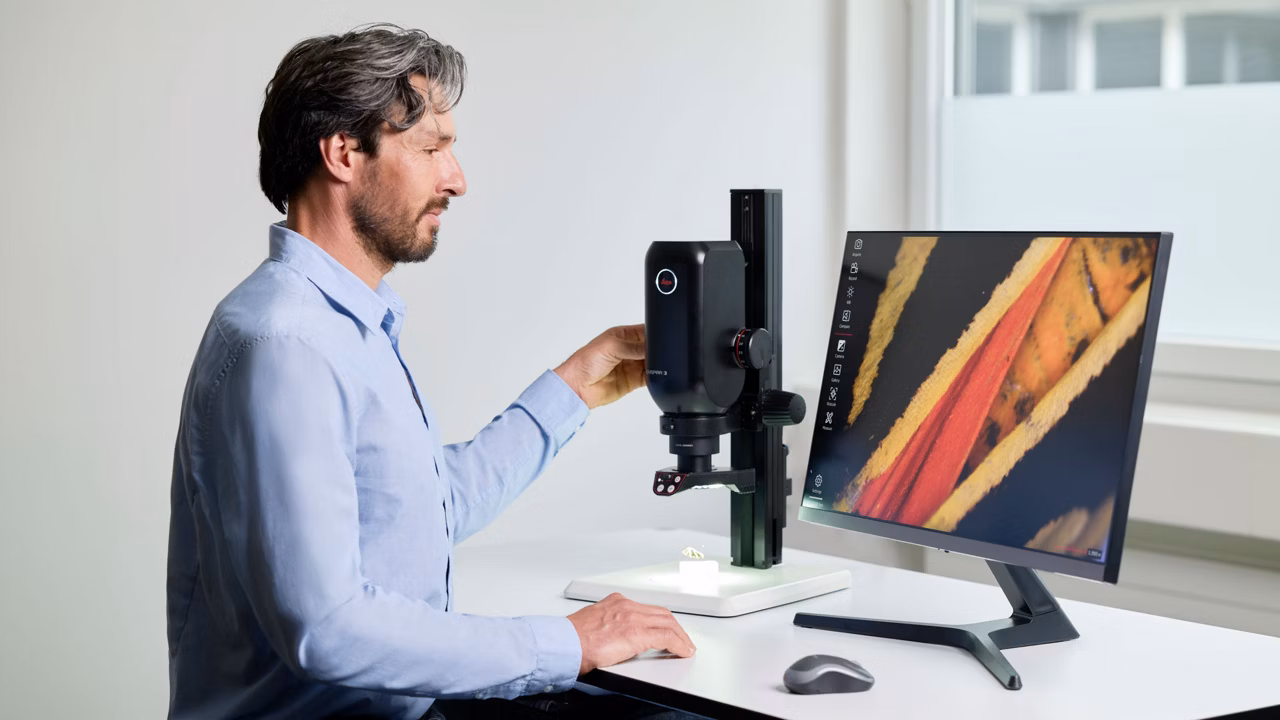

Emspira 3 Digital Microscope for Inspection

The Emspira 3 digital microscope is a cutting-edge tool tailored for precision inspection tasks. With advanced digital capabilities and high-quality imaging, this microscope transforms the inspection process, providing detailed and clear visualizations. Its user-friendly design and versatility make it an ideal choice for professionals seeking efficiency and accuracy in inspection applications. Elevate your inspection workflow with the Emspira 3, a digital microscope designed to meet the demands of meticulous inspection tasks with exceptional clarity and ease.

Limited time promotion -20% discount applied at checkout

Specifications:

4k 60fps live image via HDMI
Antimicrobial PC/ABS housing with AgTreat™
8:1 zoom ratio with 26x- 206x magnification range (1x Planapo objective, optional 28"-monitor) & parfocal optics – from overview to detail
Possible magnification range 8.2x to 1027x (depending on objective with 28" monitor)
Coded zoom with click stop option for reproducible workflows
JPG/TIFF/BMP images with up to 12 MP
Full HD MJPG Video recording with 30 fps
USB 3.1 type C connection

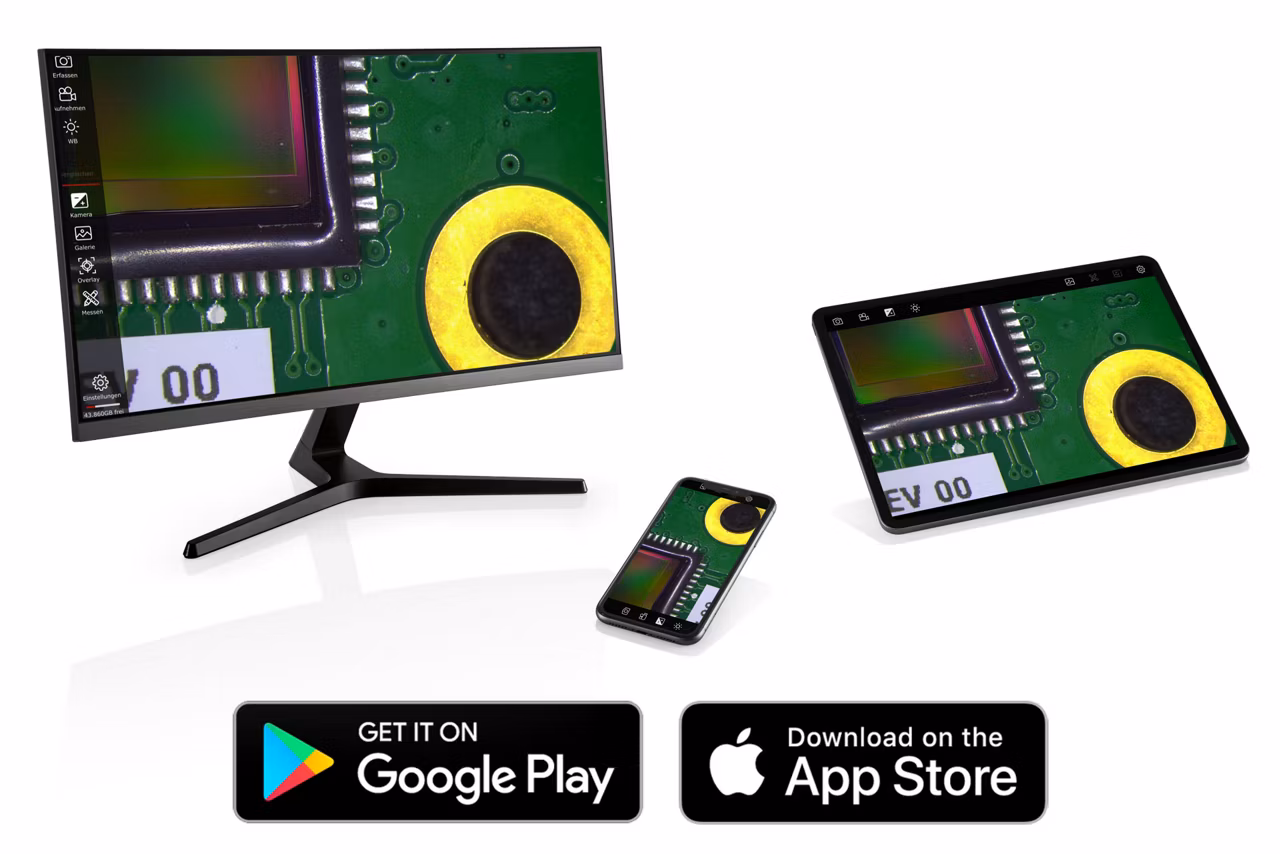

control via Enersight Mobile (iOS/Android) or via Enersight OSD
Including: USB C to A cable

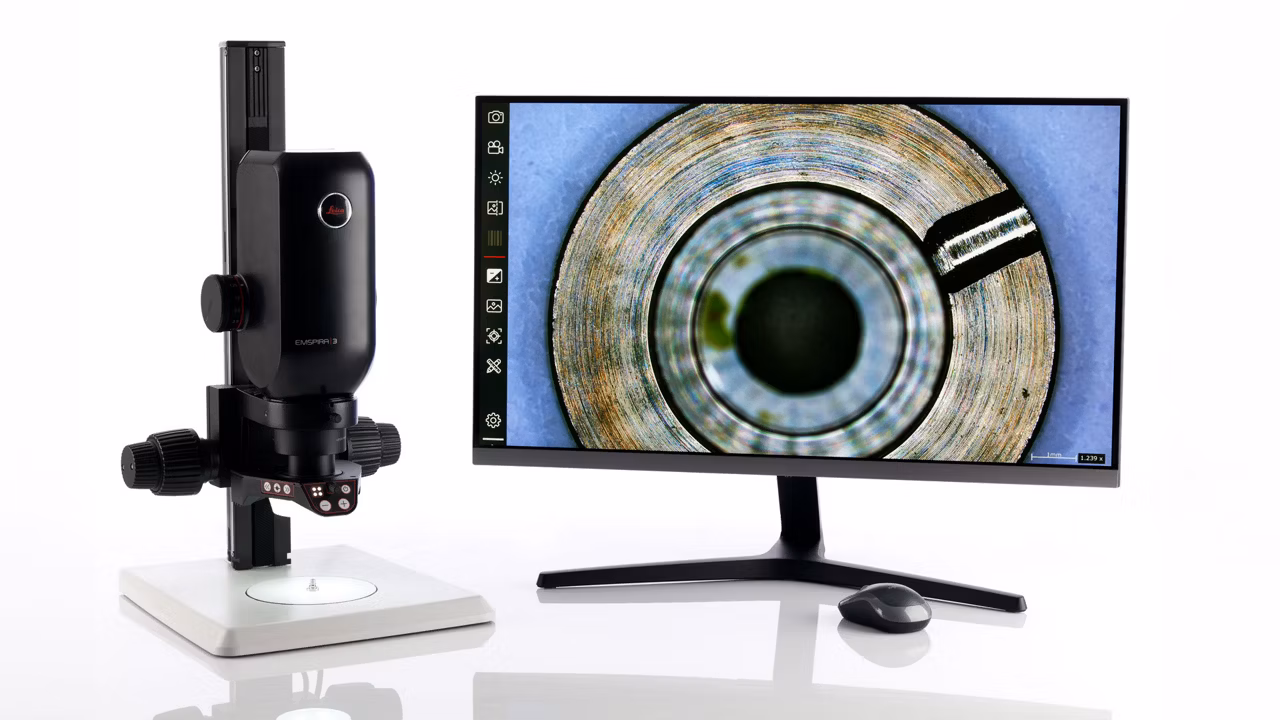

HP E27k G5 27" UHD

Features:

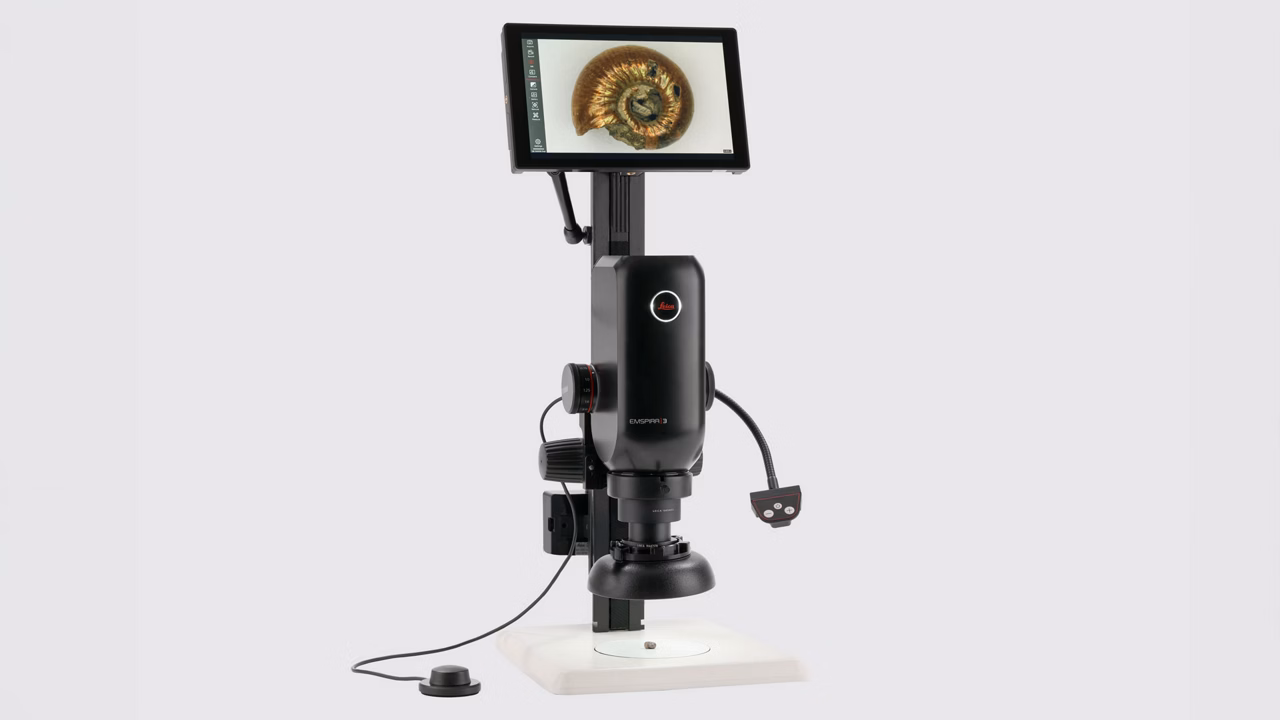

Stand alone operation
Control via mouse, keyboard, foot/hand switch and/or touchscreen

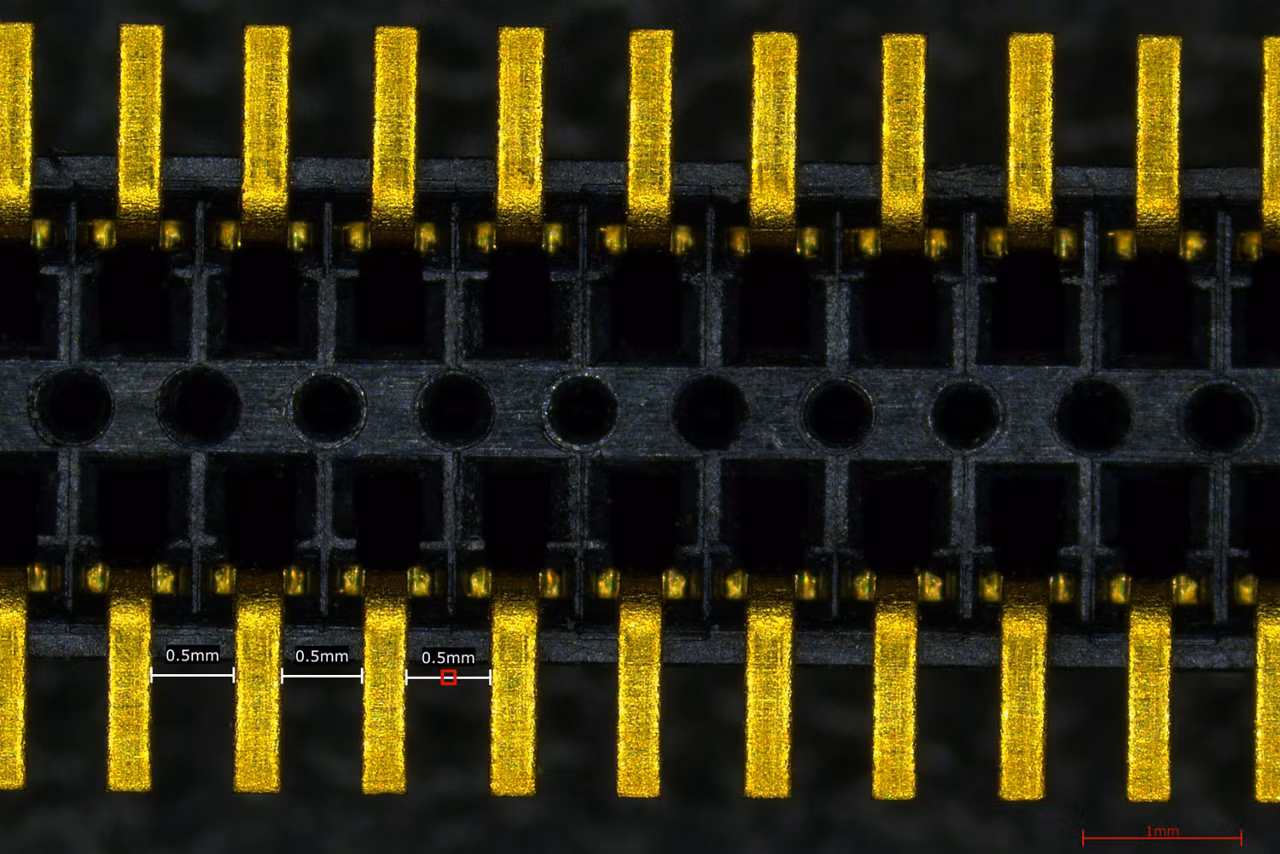

Integrated measurement, annotation and sharing functionality
Create overlays and reference images for comparison
Capture directly to USB stick or network folder
Send images via E-Mail
Customizable UI for simplified workflows

Your integrated solution for comparison, measurement, and data sharing, allowing you to optimize inspection efficiency and ditch the PC Work the way you want. Adapt the solution to your requirements and the needs of individual users Focus confidently and reliably on your inspection work both in production and laboratory environments thanks to the robust design of Emspira 3

Instrumentation
Microscope Camera Option(s)	Integrated
Microscopy Software Available	3D Acquisition (Z-Stacking), Cleanliness Analysis, Measuring
Has Eyepiece	No
Microscope Type(s)	Digital Microscope
Has Resonance Scanner	No
Microscope Environmental Control	None
Maximum Field of View (X-Axis) (Metric mm)	24.1 mm
Maximum Field of View (Y-Axis) (Metric mm)	13.6 mm
Maximum Optical Magnification (x times)	206

Search Facet
Microscope Group	Light Microscope
Application(s)	Automotive and Transportation;Electronics and Semiconductor;Inspection

Emspira 3

10450851

QTY

Power cable, 2 m, USA

10445661

QTY

WiFi Dongle 2.4/5GHz (US)

12730524

QTY

Focus drive 500 mm M-Series Routine

10450172

QTY

Intermediate adapter for TL and IL Base

10450434

QTY

Microscope carrier

10450173

QTY

Inc. light base, large w. AntiShock feet

10450049

QTY

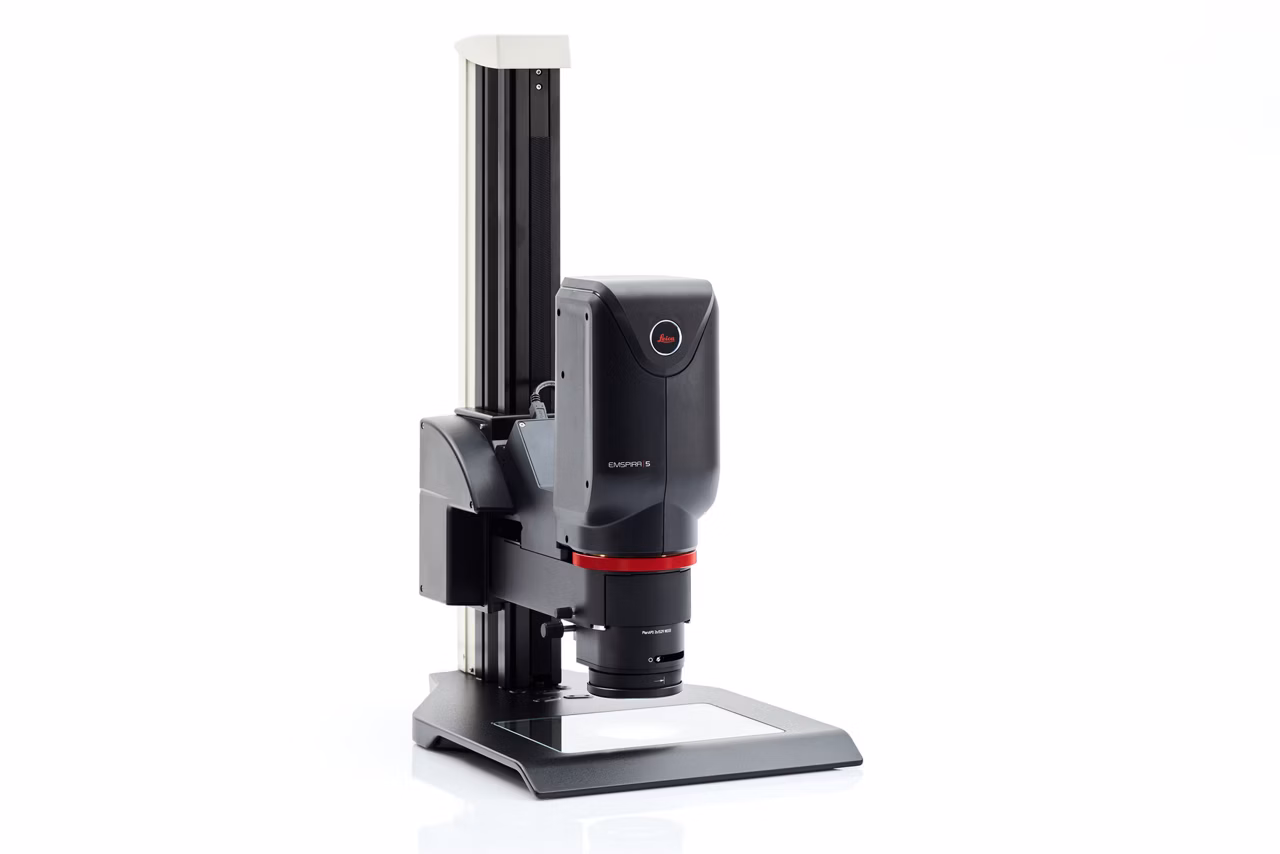

Leica LED3000 RL, 58 mm

10450271

QTY

Polarisation set for LED3000 RL

10450337

QTY

Dust cover antistatic, small

10447039

QTY

Microscope Objective 1.0x Planapo Z-series

10447176

QTY

Adapter-Telecentric, 0.8x & 1.0x Planapo

10450651

QTY

Standalone kit for Emspira 3

10450860

QTY
