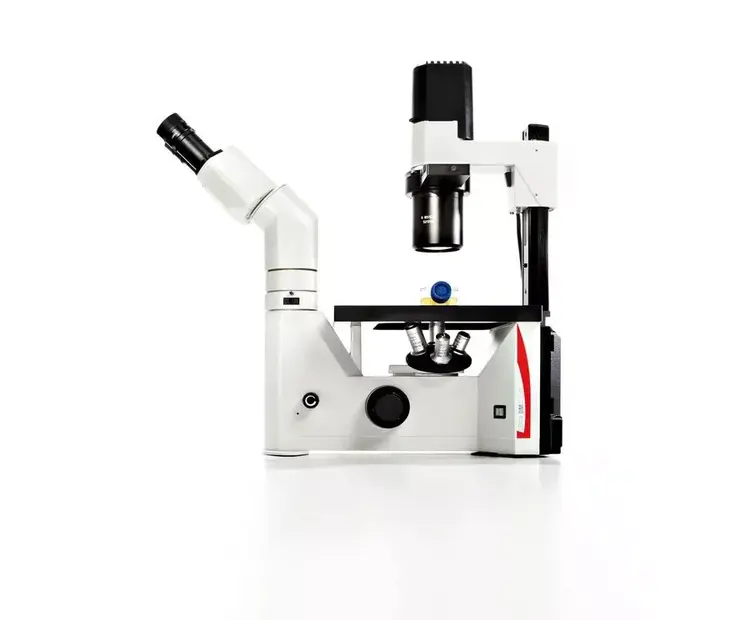

DMIL Fluorescence for Fluorescence Cell Culture

The DM IL LED is tailored for phase contrast and fluorescence monitoring of cell cultures and individual cells. With its advanced LED illumination system and precision optics, it supports routine tasks in cell culture labs like confluence estimation and transfection efficiency checks. Elevate your cell culture research with the DM IL LED, providing superior fluorescence capabilities for enhanced visualization and insights into the dynamic of cell cultures.

Specifications:

Inverted Microscope for incident fluorescence with transmitted light LED illumination for Bio-Medicine Applications.

Fixed stage on 3 point support
Coaxial double knob for coarse and fine focus on both sides
4-fold revolving nosepiece with 25x075 objective thread
Build in fluorescence illumination axis with manual shutter
Fluorescence slider with 3 positions for filter blocks
Fluorescence port for exchangeable lamp houses (e.g. 50W Hg# 100W Hg)
Infinity optics with tube lens 1x
Interface for exchangeable observation tube and phototubes
Condenser holder stepless adjustable, including collector, aperture diaphragm and filter holder
Illuminated ON/OFF switch
IMC- Interface
Power supply for TL LED illumination, including mains cable

Equipped with a 3 position fluorescence slider, the DMIL is capable of capturing brilliant fluorescence images Confidently overlay multiple fluorescence images due to zero pixel shift technology Easily add another slider to image more fluorochromes

Instrumentation
Contrasting Method(s)	Brightfield, Fluorescence, Integrated Modulation Contrast, Phase Contrast
Long Working Distance	Yes
Microscope Stage Type(s)	Manual
Microscope Camera Option(s)	Optional
Microscopy Software Available	2D Anaylsis, Live Cell Imaging, Measuring, Multichannel Acquisition, Time Lapse Imaging
Has Eyepiece	Yes
Microscope Type(s)	Inverted Microscope

Search Facet
Microscope Group	Light Microscope
Application(s)	Cell Biology;Cell Culture

Leica DM IL LED Fluo

11521265

QTY

Condenser S80 / 0.30

11521252

QTY

Microscope Objective HI PLAN CY 10x/0.25 PH1

11506402

QTY

Binocular tube HC ILB

11521250

QTY

Eyepiece HC PLAN 10x/20 BR.

11507801

QTY

Eyepiece HC PLAN 10x/20 BR.M

11507802

QTY

Dust cover for DM IL, ILM

11512596

QTY

Lightguide coupler 1"

11504117

QTY

Filter System GFP ET, size S

11504174

QTY

Microscope Objective HI PLAN 4x/0.10 PH0

11506408

QTY

Microscope Objective HI PLAN I 20x/0.30 PH1

11506272

QTY

pE 300 white MB

11504264

QTY

4-fold Lightring Slider for S80

11526112

QTY

Fluid light guide Ø3x2000mm / series 380

11504269

QTY
