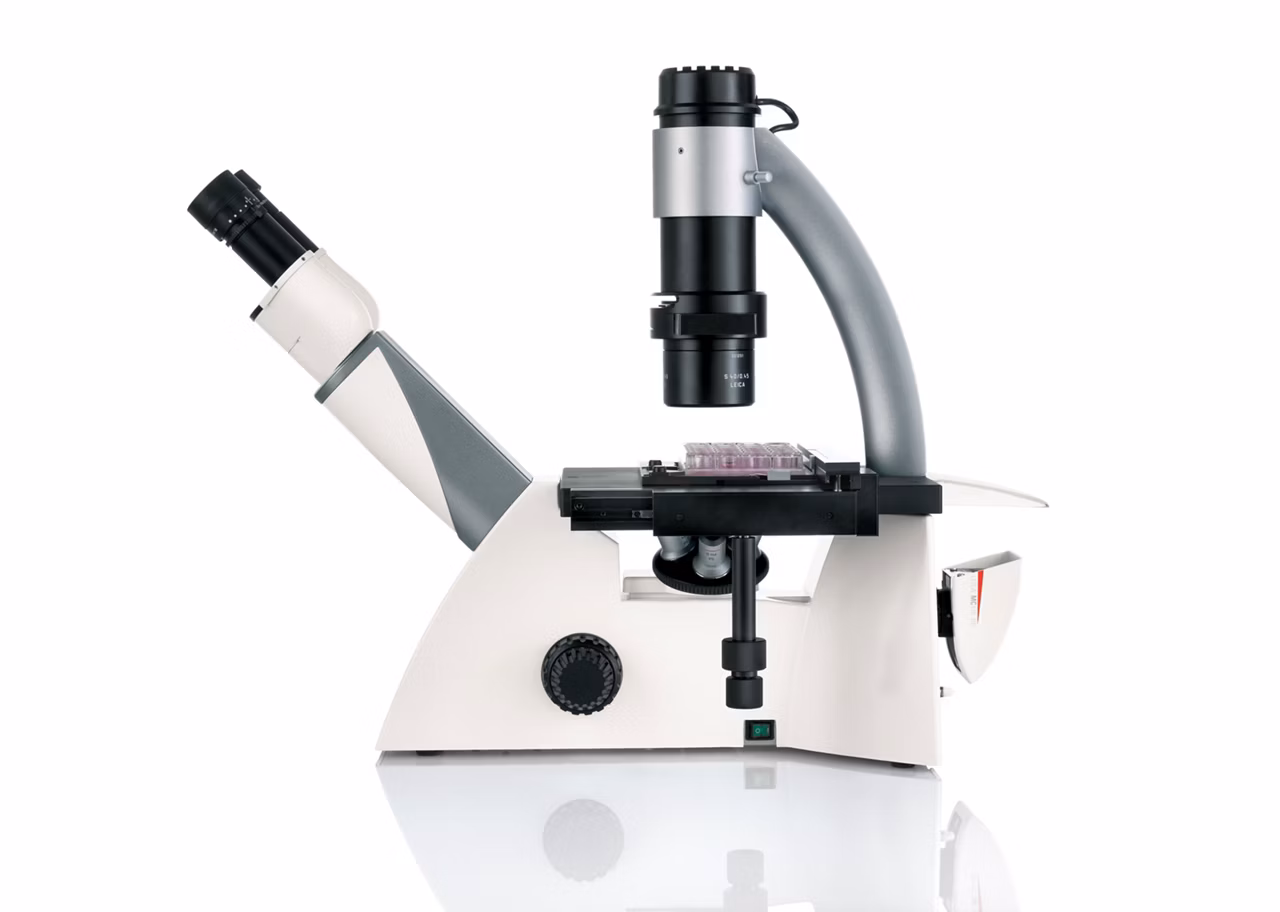

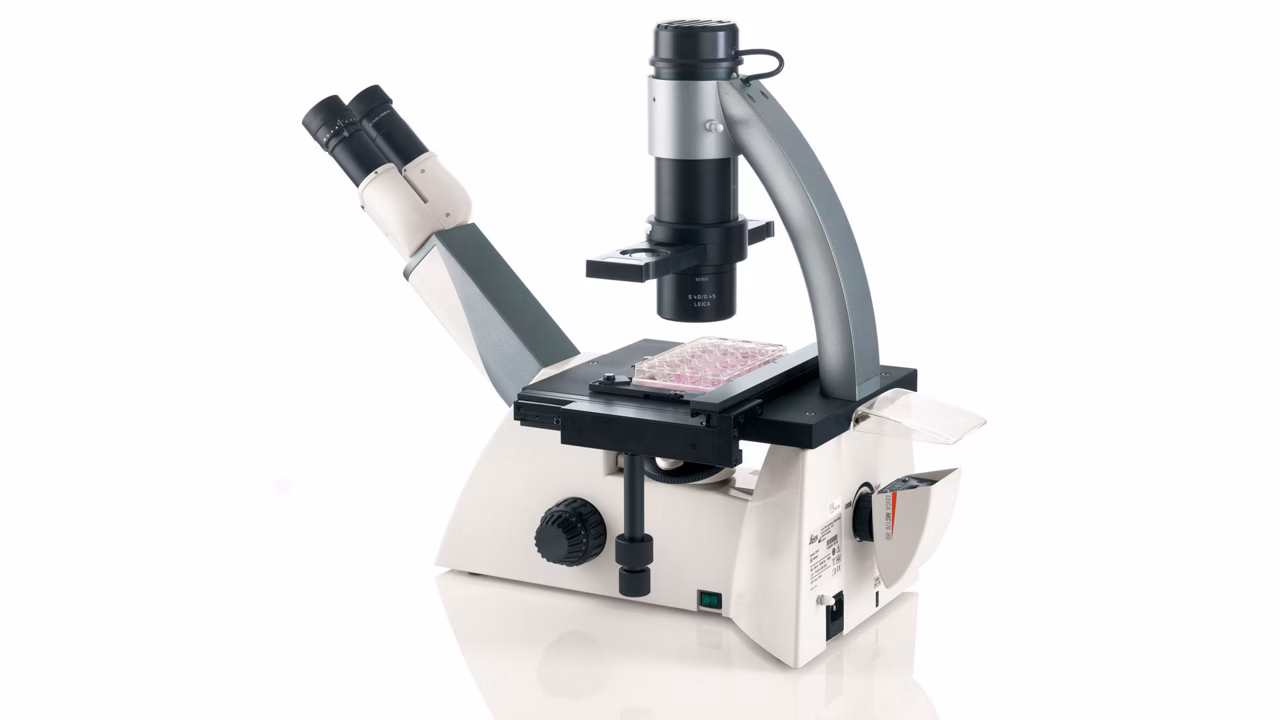

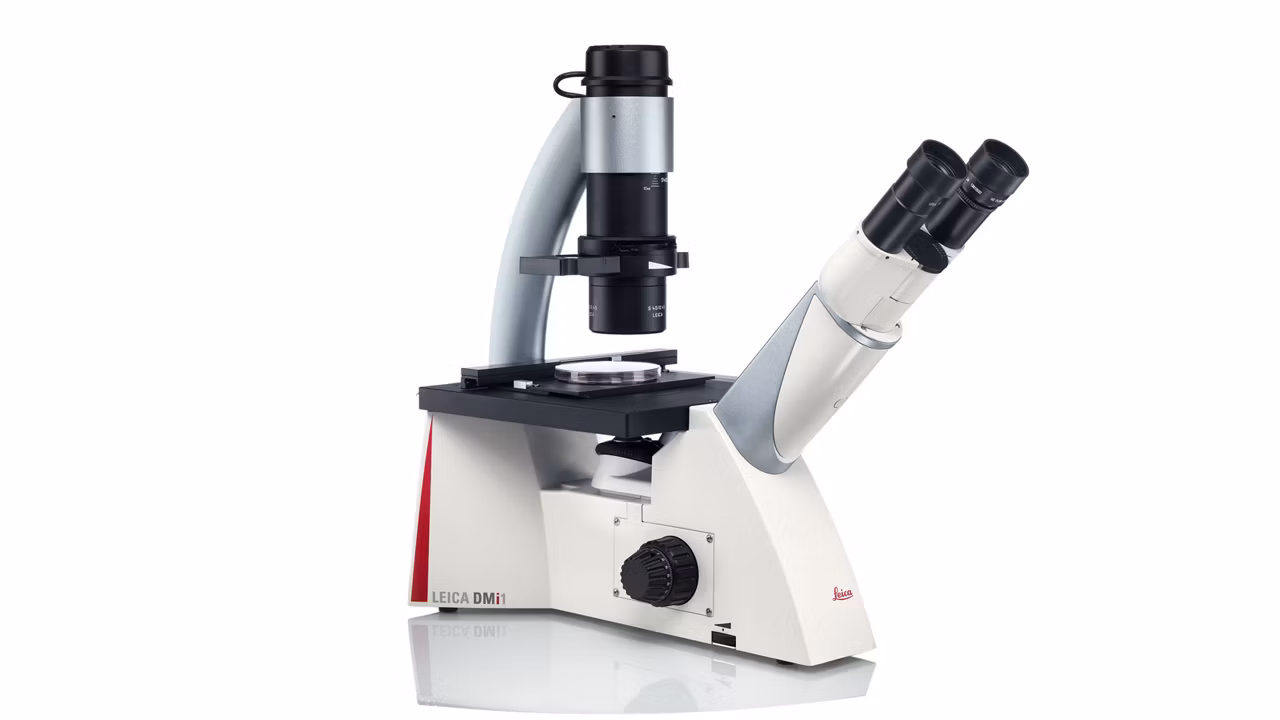

DMi1 for Core Cell Culture
The DMi1 for Core Cell Culture is a robust manual inverted microscope designed for routine tasks in cell culture labs. With precision optics and user-friendly features, this microscope delivers exceptional clarity and detail, making it an ideal tool for observing cell cultures and individual cells. Elevate your cell culture research with the DMI1's outstanding performance and reliable imaging capabilities.
Specifications:
- DMi1 FOV20 Basic stand FOV20, LED illumination, exchangeable eyepieces, Fix stage, power cable
- Two eyepieces(10X/20 eyepiece w/eyeguard and 10X/20 focusing eyepiece w/eyeguard)
- S80 condenser
- 4 position slider for S80 condenser(BF,Ph0,Ph1,Ph2)
- 3 Objectives(HI PLAN 4x/0.10 PH0, HI PLAN I 10x/0.22 PH1, HI PLAN I 20x/0.30 PH1)
- Dust cover
- LED technology and a two-hour auto-off-function reduce energy costs
- Narrow footprint and meets the demands of a high cleanliness cell culture room
- For basic usage, high quality and easy-to-use product with little maintenance need: S80/0.30 condenser (80 mm working distance). 10x to 20x to 40x phase contrast with one hand move; automatically light intensity change between brightfield and phase contrast
- For cell culture labs with limited space or high cleanness demanding and documentation required: S40/0.45 condenser (40-50 mm working distance) for optimal resolution with types of dishes, flasks and microtiters with extra 10mm free space by simply moving up. 12MP integrated FLEXACAM C1 camera turns your microscope into a stand-alone digital imaging station with no need for a PC
| Contrasting Method(s) | Brightfield, Phase Contrast |
| Long Working Distance | Yes |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Optional |
| Microscopy Software Available | 2D Anaylsis, Documentation, Measuring |
| Has Eyepiece | Yes |
| Microscope Type(s) | Inverted Microscope |
| Microscope Group | Light Microscope |
| Application(s) | Cell Biology;Cell Culture |
DMi1 FOV20, S80, 4P Slider, 3 Obj. IVD
11526231
1
QTY
Power cable, 2 m, USA
10445661
1
QTY
