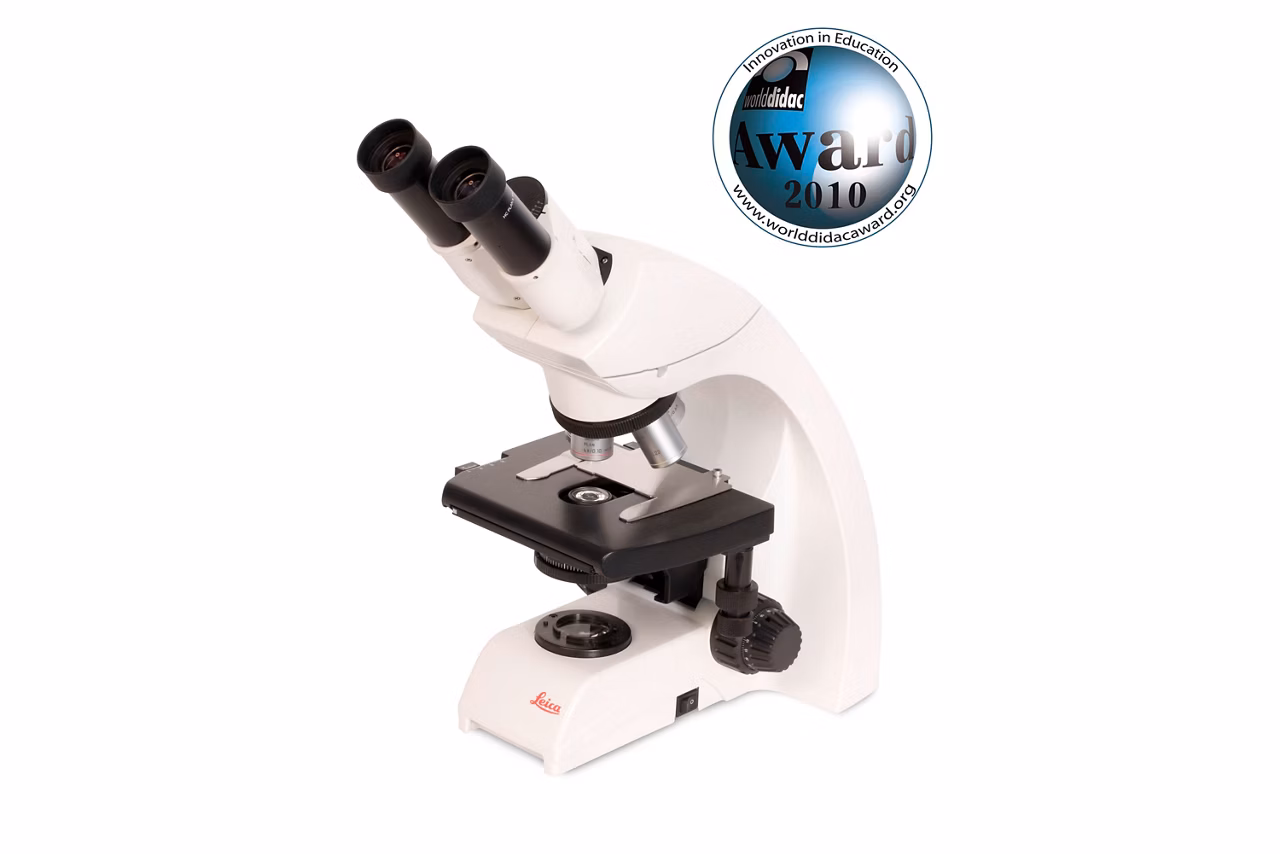

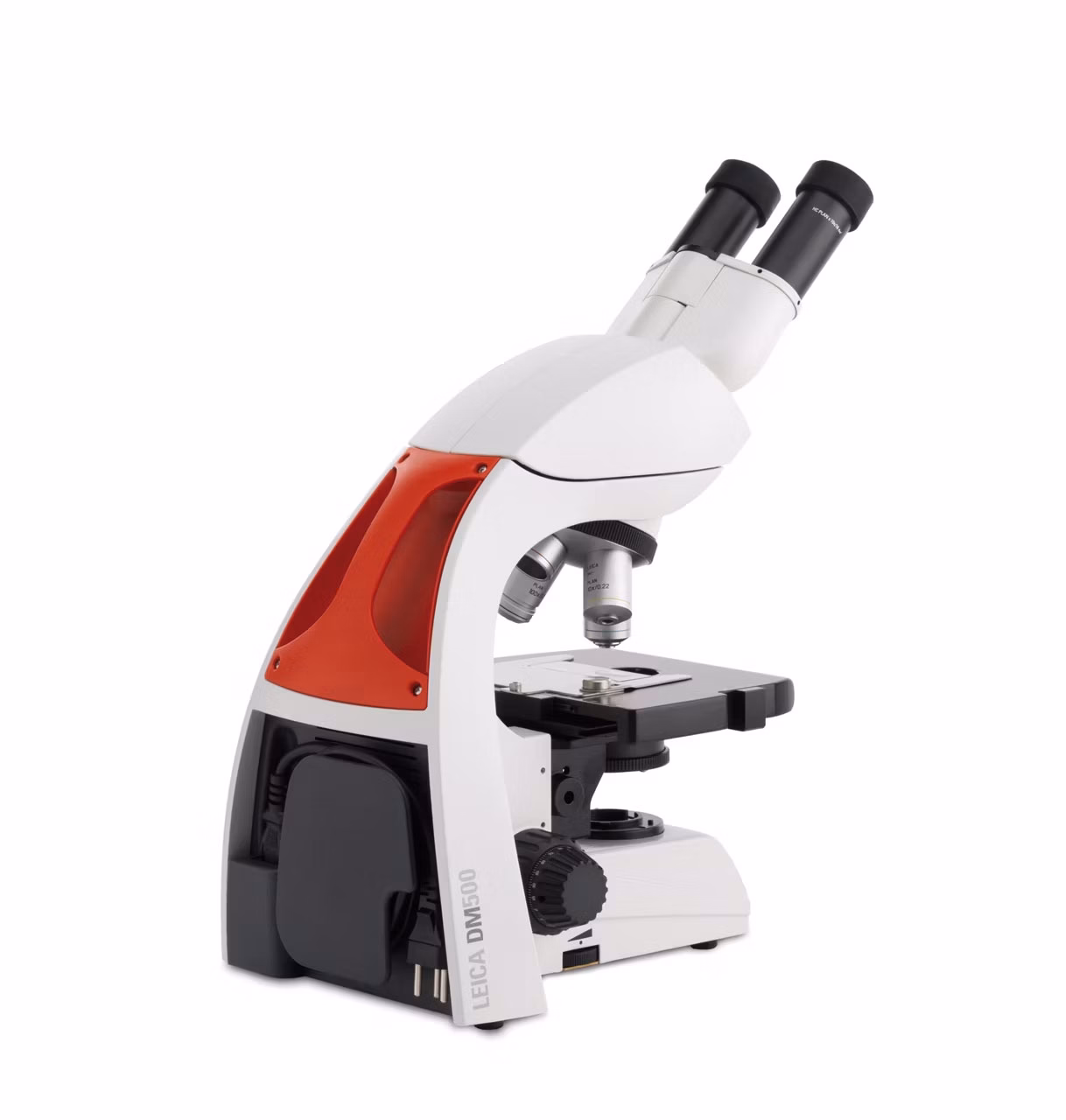

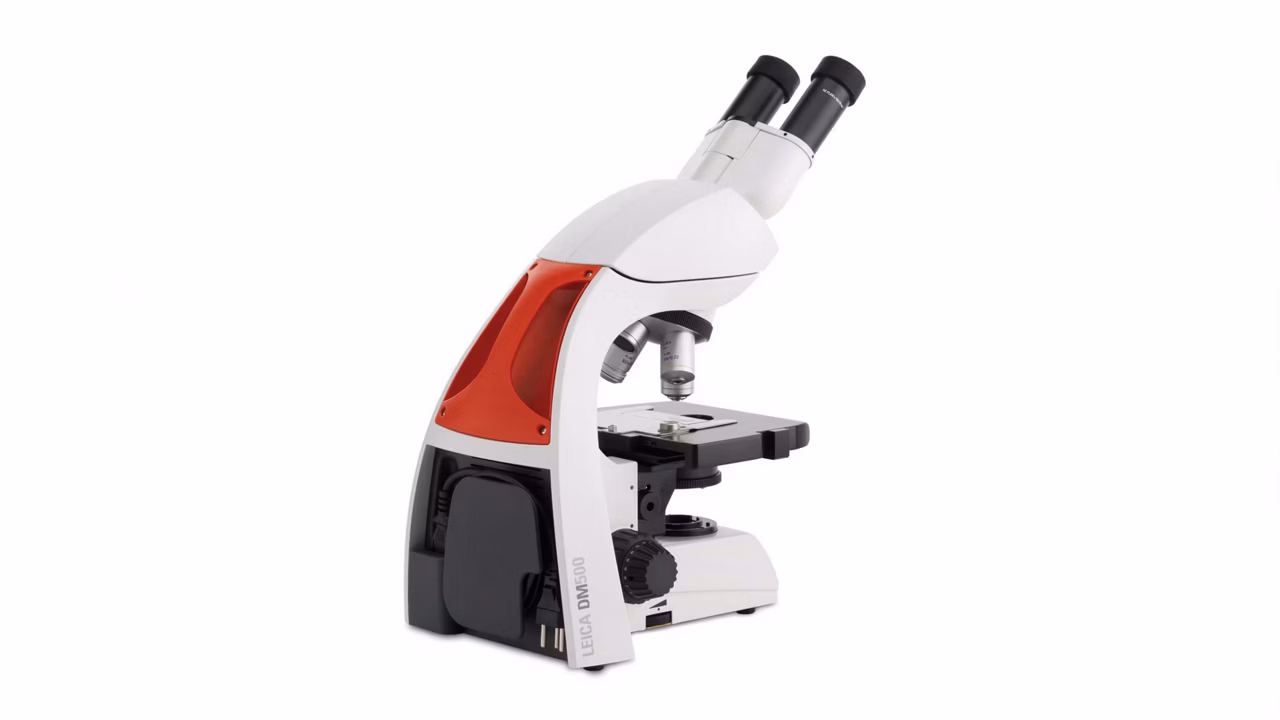

DM500 Educational Microscope with Integrated Wireless Camera and Eyepiece Pointers
The DM500 microscope is a versatile and user-friendly tool designed for educational exploration. Featuring precision optics, an integrated wireless camera, and an eyepiece pointer, this microscope provides a comprehensive learning experience. The integrated wireless camera allows seamless documentation and sharing of observations, enhancing collaboration in the classroom. The added eyepiece pointer aids educators in guiding students to specific points of interest during lessons, making the DM500 an exceptional choice for educational settings where clarity, engagement, and interactive learning are paramount.
DM500 Educational Microscope with Integrated Wireless Camera and Eyepiece Pointers
The DM500 with Student-friendly features such as the pre-focused, pre- centered condenser and the EZTube™ preset diopter, which prevent incorrect adjustments, provide more time for hands-on learning for the University Student. EZStore™ design with integrated handle and cord wrap allows easy carrying, easy lifting and protection against microscope component damage. The DM500 infinity optical platform opens the door to the many accessories and digital imaging offerings from Microsystems.
- DM 500 Right Hand Stage Stand with 4 position nosepiece
- Universal Power Supply
- USB Power with integrated connector
- Mechanical stage with non extending rack and slide holder

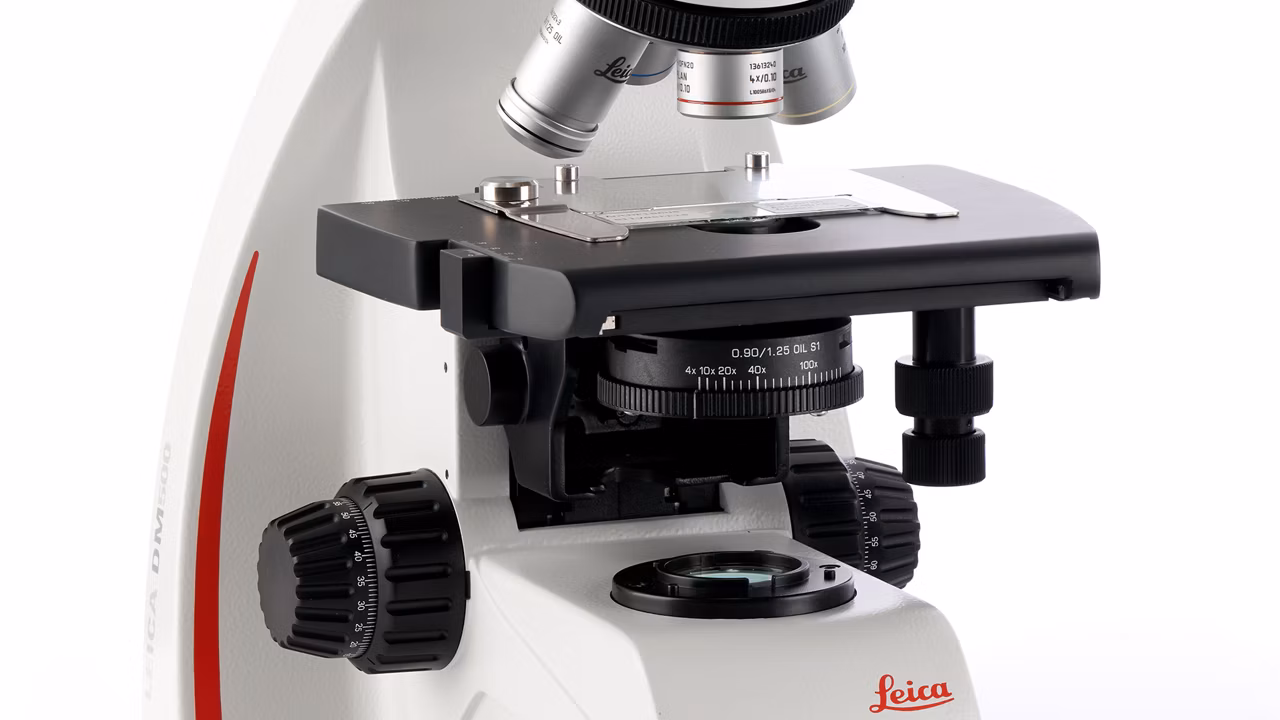

- Pre-Centered and Pre-Focused Abbé condenser with slot for Phase and Darkfield Sliders
- Abbe Condenser has Magnification labels for proper aperture setting magnifications
- LED illumination with continuous intensity control
- Built in handle and cord wrap
- 45 degree Binocular EZ Tube with integrated 10X/20 eyepieces and Pre Set Diopters and pointer on the right side
- Plan Objective 4X/0.10NA, 26.2mm W.D.
- Plan Objective 10X/0.22 NA, 7.8mm W.D.
- Plan Objective 40X/0.65 NA, 0.31MM W.D.
- Plan Objective 100x/1.25 NA, 0.10MM W.D.
- Oil Immersion, 10ml oil
- Dust cover
- User Documents

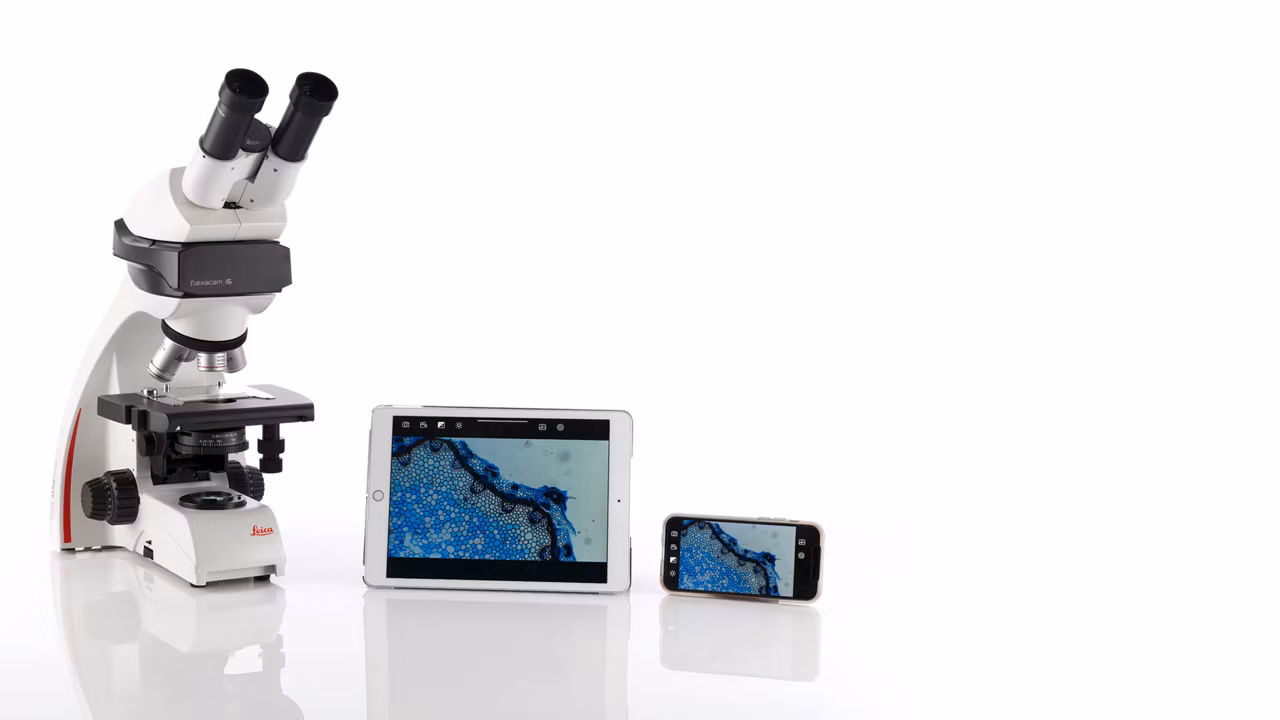

Flexacam i5 (Compound):
- Digital color camera with CMOS sensor (1/2.3)"
- Possible to operate with 4k HDMI monitor using Enersight OSD
- High definition live image 4k, 60fps, HDR
- JPG images with up to 12 MP
- Full HD MJPG Video recording with 30 fps
- Camera control: via PC (Windows) using Enersight Desktop, via smartphone / tablet by Enersight Mobile App (connection to Ethernet or Wifi is required) or via USB mouse (not included) (Enersight OSD mode)
- Capture images directly to USB Stick or send images via E-Mail* (Enersight OSD mode)
- USB-C connection to PC for Enersight Desktop
- Supported OS: Win 10Pro/ Win 11 / iOS / Android
- Delivered accessories: HDMI Cable, USB C-A cable, USB stick.
| Contrasting Method(s) | Brightfield |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Optional |
| Microscopy Software Available | Documentation, Measuring |
| Has Eyepiece | Yes |
| Microscope Type(s) | Upright Microscope, Light Microscope |
| Microscope Environmental Control | None |
| Maximum Field of View (X-Axis) (Metric mm) | 5 mm |
| Maximum Field of View (Y-Axis) (Metric mm) | 5 mm |
| Maximum Optical Magnification (x times) | 100 |
DM500 BF4 Obj Std Plan outfit w. Pntr
13613208
1
QTY
U.S. power cord
13613900
1
QTY
Flexacam i5 (Compound)
12730537
1
QTY
