Introduction to Stereo Microscopes

A stereo microscope, a dissecting or low-power microscope, is designed to view specimens at relatively low magnifications, typically from 10× to 80×. Unlike a compound microscope, which uses light transmitted through the specimen for visualizing with high magnification, a stereo microscope uses light reflected from the object surface to provide a three-dimensional view. It contains two eyepieces receiving two separate optical paths that deliver slightly different angles of the same image to each eye. This binocular arrangement enables accurate 3D perception, making it ideal for observing surface details and performing precision work on specimens.¹

Despite their low magnification power, stereo microscopes have been used in numerous fields in research and industry, ranging from plant biology and entomology to forensic science and surgery.

Types of Stereo Microscopes

Several types of stereo microscopes exist, varying in the arrangement of the optical paths, magnification power and areas of use.

Greenough Stereo Microscope

Designed by American zoologist Horatio Saltonstall Greenough, it is a prototype of stereomicroscopes. It features a prism arrangement with two separate optical paths converging on the specimen to provide a strong 3D effect. Due to their depth perception, ability to visualize rugged surfaces and low cost, Greenough microscopes are popular in zoology, anatomy and morphology.¹

Common Main Objective (Cmo) Microscope

In contrast to Greenough, which contains two independent object lenses, modern stereo microscopes use a single objective lens shared by both optical paths. CMO microscopes are better-suited for adjusting magnifications, minimizing optical aberrations during the adjustment. ²

Zoom Stereo Microscope

A zoom stereo microscope features a zoom knob for continuous magnification within an extensive range, allowing a smooth transition from low to high magnification. Variants include zoom microscopes with fixed magnification steps, high-magnification systems (50x–250x) and versatile models combining zoom and fixed settings for specialized tasks.³

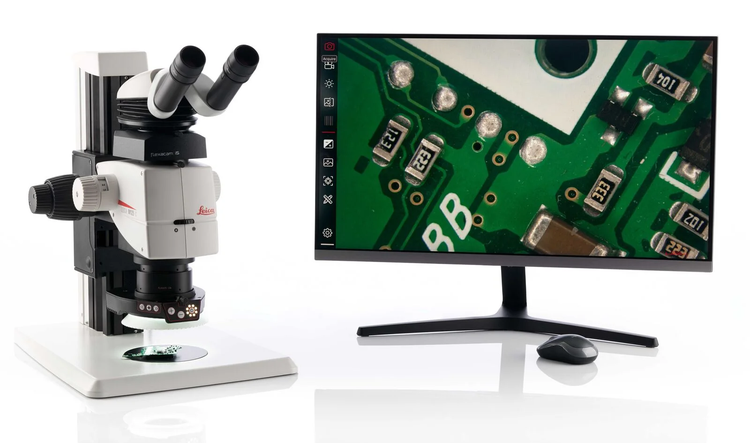

Digital Stereo Microscope

Digital stereo microscopes feature built-in cameras or are suitable for external digital camera connection. Thus, they allow users to connect to monitors or computers, opening the way for software synchronization, image analysis and remote collaboration. ⁴

Trinocular Models

A trinocular stereo microscope contains a trinocular head that attaches a digital camera for documentation while observing through the eyepieces. Many models offer LED illumination to enhance specimen details.²

Featured Product

Components and Features

Core Stereo Microscope Parts

The main body of a stereo microscope consists of:

• The viewing head, containing the eyepieces and optics
• The focus block and focus knob for adjusting sharpness
• The stage plate with stage clips to secure specimens during observation

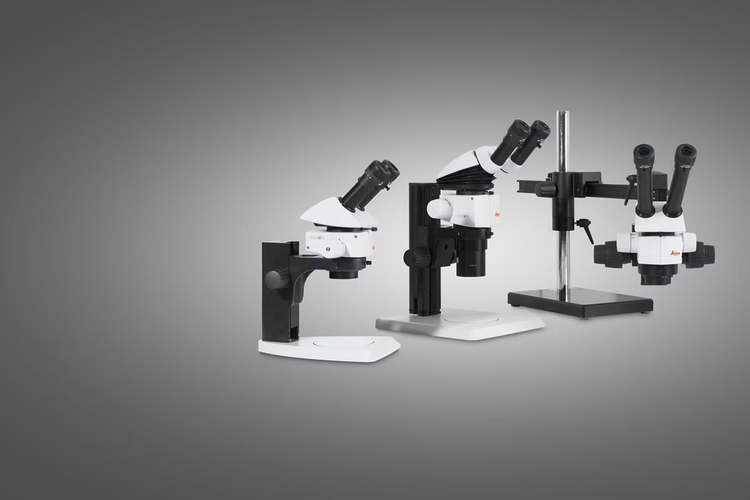

Microscope Stand Types

Stereo microscopes offer different stand designs to support various applications.

• Pole stands for general lab work
• Track stands for precise vertical movement
• Boom stands for extended horizontal reach, ideal for surgery and viewing large specimens in industrial applications

Many stands follow ergonomic design principles to improve comfort during prolonged use.

Microscope Eyepieces

Microscope eyepieces can be adjusted according to the user’s interpupillary distance. Standard 10x eyepieces use diopter adjustment for each eye. Auxiliary eyepieces can be attached to increase magnification to 30x.1

Microscope Objective Lenses

The three objective types in stereo microscopes, in the increasing order of flexibility, are:²

• Fixed objectives that provide a single, constant magnification level.
• Turret objectives with multiple lenses mounted on a rotating nosepiece, allowing users to switch between set magnification levels
• Zoom objectives with continuous magnification adjustment within a range, enabling fine scaling without changing lenses

Furthermore, auxiliary lenses can be added to extend the magnification range.

Microscope Illumination

Stereo microscopes employ top and bottom light sources for reflection and transmission. Modern units often feature built-in illumination, with lighting technologies such as LED, halogen or fluorescent. In addition, they include rheostat controls to fine-tune light intensity for optimal contrast and clarity.⁵

Working Distance

Working distance in a microscope is the space between the objective lens and the specimen. Users should opt for stereo microscopes with long working distances when performing tasks that require tool access, such as microdissection or surgery. Some microscopes also offer an adjustable working distance for versatility.¹

Accessories

Stereo microscopes are compatible with a wide range of accessories that enhance functionality. These include:

• Micrometers for measurement
• Filters and diffusers for light control
• Ring lights for even top and bottom illumination
• Camera attachments for documentation, digital analysis and image sharing

Magnification and Imaging Capabilities

Magnification Systems

Stereo microscopes offer a wide magnification range reaching 540x, depending on the magnification systems and auxiliary lenses used. Zoom magnification systems allow continuous adjustment across a range and are ideal for fine-tuning the level of detail without changing lenses. In contrast, fixed magnification models have a more straightforward setup with fixed magnification steps.

Zoom microscopes are ideal for research and industry that require versatility, while fixed models are well-suited to routine tasks or educational use.

Imaging and Resolution

The key advantage of dissecting microscopes is the true 3D visualization experience, as they deliver the same image from different angles to each eye, which enhances depth perception and spatial clarity.

The clarity and detail of observations depend on the stereo microscope's optical quality and resolution. High resolution is crucial for accurate analysis, particularly in entomology, forensics or electronics applications. ²,⁶

Digital stereo microscopes further expand imaging capabilities by integrating cameras and software. These systems enable real-time viewing, image documentation, analysis and sharing, making them invaluable tools for research, education and collaborative work.

Specialized Applications

The viewing and image-capturing capabilities of stereo microscopes lend them to various specialized applications.

• Biological Sciences

Stereo microscopes are widely used in entomology, botany and microbiology, where users need to examine surface structures in high detail. The adjustable working distance and magnification allow flexibility while dissecting organisms and studying different levels of detail without extensive sample preparation.⁷,⁸

• Precision Tasks

Stereo microscopes are essential medical and laboratory tools requiring precision and flexibility. They are often employed in microinjection and microsurgery, where delicate specimen manipulation is critical.9 Stereo microscopes with boom-mounted stand designs are preferred in these fields due to flexible positioning and ergonomic access. Thus, researchers and practitioners can work comfortably over extended periods while maintaining a clear, magnified view of the specimen.

• Field and Forensic Work

Stereo microscopes with battery-powered illumination offer durability, making them suitable for fieldwork, ecological surveys and on-site analysis.¹⁰

In forensic laboratories, stereo microscopes are vital in examining trace evidence such as fibers, tool marks and small materials, ensuring accurate observation for investigative and legal purposes.

Application and Design Advantages

Key Selection Factors

Several factors should be considered when selecting the ideal stereo microscope.

Each application demands a different set of criteria:

• Biological sciences require accurate color fidelity and 3D clarity.
• Surgical and microinjection tasks demand long working distances
• Fieldwork inspection benefits from robust design, battery life, high-resolution optics and adjustable stands
• Forensic work requires precision imaging and documentation.

Regardless of the application, users should evaluate key criteria, such as zoom range for flexibility, working distance for accessibility, illumination type for contrast control, optical quality for resolution and camera integration for digital documentation.

There are considerable design trade-offs across different types of stereo microscopes. Greenough microscopes are affordable and compact, offering strong depth perception. On the other hand, CMO microscopes are superior in optical performance and compatibility with accessories. Digital models provide powerful imaging, measurement and sharing capabilities, while optical-only systems excel in simplicity, real-time observation and durability.

Potential users should carefully assess their research or workflow needs to determine which microscope type best suits their goals.

Conclusion

Stereo microscopes offer unique three-dimensional visualization at low to medium magnification, making them indispensable across fields ranging from biology and surgery to electronics, forensics and quality control.

Ongoing developments aim to cement stereo microscopes in research and industry. Digital imaging integration enables real-time recording, measurement and collaboration, while advances in 3D visualization enhance spatial clarity for research and field work. At the same time, ergonomic improvements, such as boom-mounted designs, adjustable working distances and optimized lighting systems, are making stereo microscopes more user-friendly and suitable for extended use.

These innovations ensure that stereo microscopes remain a cornerstone tool, adapting to modern scientific and industrial needs while supporting precision work and advanced digital workflows.

References

1. Muthanandam S, Santhadevy A, Suganya R, Vezhavendhan N. A review on stereomicroscope. Int Dent J Stud Res 2024;12(1).
2. Patel P, Patel D. Stereomicroscopy–A Potential Technique for Forensic Dental Profiling. J Microsc Ultrastruct 2024:10.4103.
3. Hsieh F-M, Ching-Hwang L, Tsan-Piao L. New addition and a review of Neottia in Taiwan. Taiwania 2025;70(1).
4. Gupta V, Aniket H, Saini K. Forensic Importance and Advancements in Microscopic Examination of Questioned Documents. Forensic Sci Rev 2025;37(1):51-65.
5. Keles A, Greeneway GP, Dempsey RJ, Baskaya MK. Establishing microsurgery skills laboratories in low-and middle-income countries with integrated remote teaching: a novel approach. Neurosurg Clin N Am 2024;35(4):449-463.
6. You X, Liu J, Li Y, Jiang Y, Liu J. 3D microscopy in industrial measurements. J Microsc 2023;289(3):137-156.
7. Danchenko M, Macaluso KR. Salivary glands of the cat flea, Ctenocephalides felis: Dissection and microscopy guide. Curr Res Insect Sci 2024;5:100080.
8. Gomes APN, Miranda K, Lopes-Torres EJ. Simultaneous recording of the surface and internal structures of helminth parasites by fluorescence stereomicroscopy and light-sheet fluorescence microscopy (LSFM). Micron 2025;192:103802.
9. Ishikawa T, Ohno E, Mizutani Y, Iida T, Uetsuki K, Yashika J, et al. Usefulness of macroscopic on‐site evaluation using a stereomicroscope during EUS‐FNB for diagnosing solid pancreatic lesions. Can J Gastroenterol Hepatol 2022;2022(1):2737578.
10. Soltani NS, Taylor MP, Wilson SP. Quantification and exposure assessment of microplastics in Australian indoor house dust. Environ Pollut 2021;283:117064.
